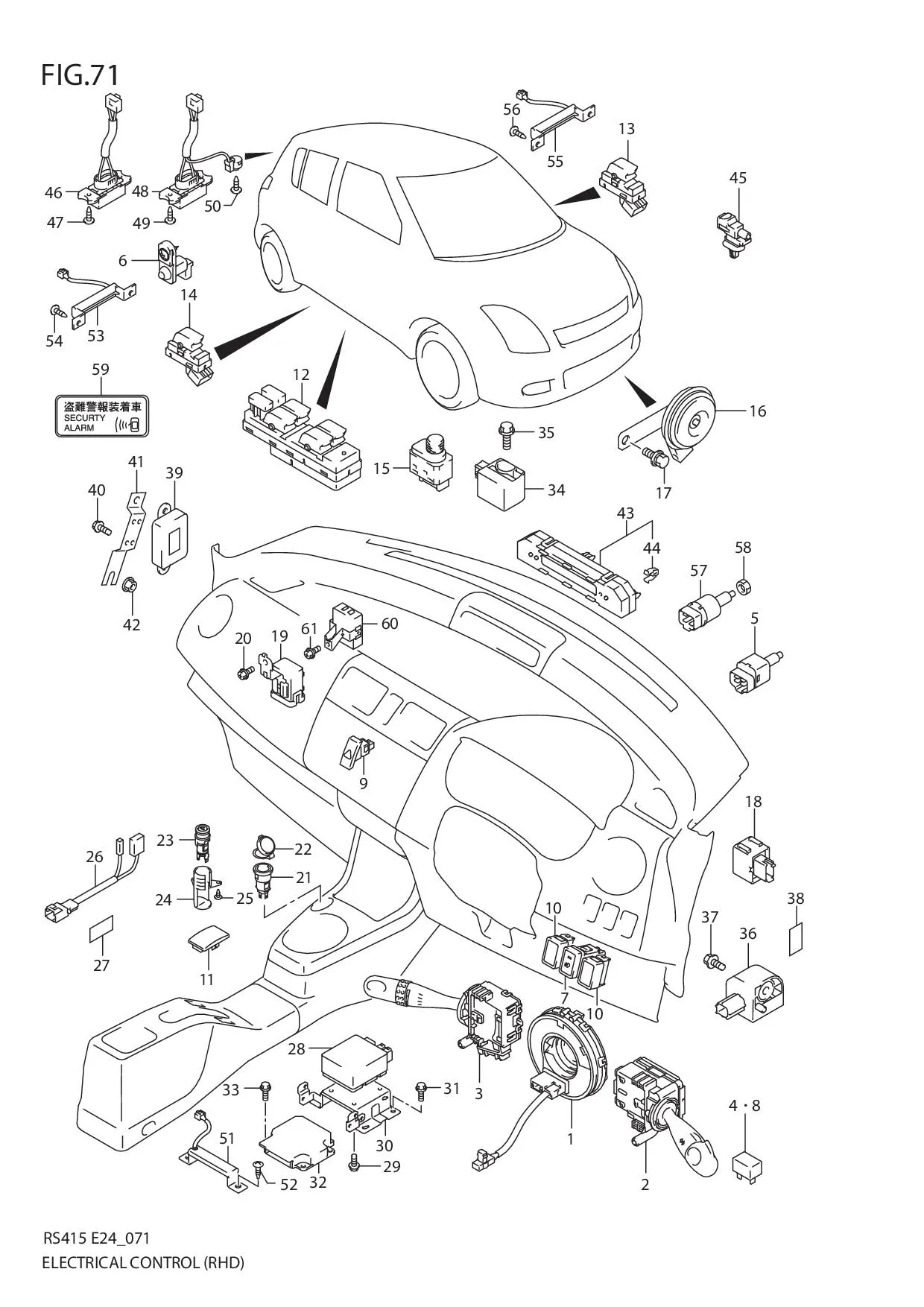

FIG.71 ELECTRICAL CONTROL (RHD)

FIG.71 ELECTRICAL CONTROL (RHD)
No No. Part Description Qty Price Per Pcs Remarks
1-2 37480-62J00-000
SUB: 37480B62J00N000		 CABLE ASSY, CONTACT COIL 1 Rp371.500 E24:W/STEERING WHEEL AUDIO SWITCH
1-1 37480-73H00-000 CABLE ASSY, CONTACT COIL 1 Rp2.088.000 E24:N/STEERING WHEEL AUDIO SWITCH
1-4 37480-62J20-000 CABLE ASSY, CONTACT COIL 1 Rp1.754.000 E30,E35 W/STEERING WHEEL AUDIO SWITCH
1-3 37480-73H20-000 CABLE ASSY, CONTACT COIL 1 Rp1.489.500 E30,E35 N/STEERING WHEEL AUDIO SWITCH
2 37210-73HB1-000
SUB: 37210-58J00-000		 SWITCH ASSY, LIGHTING & TURN SIGNAL 1 Rp286.000
3 37310-62J21-000
SUB: 37310-62J20-000		 SWITCH ASSY, WIPER & WASHER 1 Rp1.847.000
4 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, REAR WIPER 1 Rp47.000
5 37740-61J10-000
SUB: 37740-75H21-000		 SWITCH ASSY, STOP LAMP 1 Rp59.000
6 37670-58J10-000
SUB: 37670-58J00-000		 SWITCH ASSY, DOOR 4 Rp139.500
7 37270-62J10-000 SWITCH ASSY, FRONT FOG LAMP 1 Rp398.500 W/FRONT,FOG LAMP
8 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, FRONT FOG LAMP 1 Rp47.000 W/FRONT,FOG LAMP
9 37430-62J00-P4Z SWITCH ASSY, HAZARD WARNING (GRAY) 1 Rp335.000
10 37285-62J00-000 CAP, OPTION SWITCH HOLE 0 Rp45.000
11 37285-62J10-000 CAP, OPTION SWITCH HOLE 2 Rp41.500
12 37990-62J20-000 SWITCH ASSY, POWER WINDOW MAIN 1 Rp1.329.000
13 37995-62J00-000 SWITCH ASSY, POWER WINDOW SUB 1 Rp247.500
14 37995-62J00-000 SWITCH ASSY, POWER WINDOW REAR 2 Rp247.500
15-1 37950-62J01-000
SUB: 37950-62J00-000		 SWITCH ASSY, MIRROR 1 Rp319.000 N/POWER FOLDING MIRROR
15-2 37950-62J11-000
SUB: 37950-62J10-000		 SWITCH ASSY, MIRROR 1 Rp385.500 W/POWER FOLDING MIRROR
16 38500-63J01-000
SUB: 38500-63J00-000		 HORN ASSY 1 Rp495.000
17 09115-06005-000
SUB: 09115-06001-000		 BOLT (8X18) 1 Rp14.000
18 38610-84F00-000 RELAY, TURN & 4WAY 1 Rp613.000
19-1 37190-62J10-000 RECEIVER ASSY, DOOR LOCK & KEYLESS 1 - E24
19-2 37190-62J00-000 RECEIVER ASSY, DOOR LOCK & KEYLESS 1 - E35:N/KEYLESS START
19-3 DISCONTINUE
SUB: 37190-62J20-000		 RECEIVER ASSY, DOOR LOCK & KEYLESS 1 - E30:W/KEYLESS ENTRY
20 02162-0612B-000
SUB: 02162-06123-000		 BOLT 1 Rp16.000
21 39420-76F00-000 BODY, SOCKET 1 Rp103.000 N/CIGAR LIGHTER
22 39441-63J01-P4Z COVER, SOCKET (GRAY) 1 Rp65.500 N/CIGAR LIGHTER
23 DISCONTINUE
SUB: 39400-59J00-000		 LIGHTER ASSY, CIGARETTE 1 - W/CIGAR LIGHTER
24 DISCONTINUE
SUB: 39430-63J00-000		 COVER, CIGAR LIGHTER 1 - W/CIGAR LIGHTER
25 03541-0516A-000
SUB: 03541B05163N000		 SCREW 1 Rp3.500 W/CIGAR LIGHTER
26 DISCONTINUE
SUB: 39460-63J00-000		 HARNESS ASSY, SOCKET 1 -
27 DISCONTINUE
SUB: 36930-60G10-000		 COVER, HARNESS 1 -
28-1 38720-63J00-000 CONTROLLER ASSY, POWER STEERING 1 - E24
28-2 38720-63J01-000 CONTROLLER ASSY, POWER STEERING 1 - E35
28-3 38720-63J10-000 CONTROLLER ASSY, POWER STEERING 1 Rp7.202.000 E30
29 02162-0508A-000
SUB: 02162-05083-000		 SCREW 4 Rp3.500
30 DISCONTINUE
SUB: 38721-63J00-000		 BRACKET, POWER STEERING 1 -
31 09115-06005-000
SUB: 09115-06001-000		 BOLT (6X16) 4 Rp14.000
32-1 38910-62J02-000
SUB: 38910-62J00-000		 CONTROLLER ASSY, AIR BAG 1 Rp18.370.500 E30
32-4 38910-62J10-000 CONTROLLER ASSY, AIR BAG 1 - E24:W/SIDE AIR BAG
32-2 38910-62J20-000 CONTROLLER ASSY, AIR BAG 1 - E35
32-3 38910-62J02-000
SUB: 38910-62J00-000		 CONTROLLER ASSY, AIR BAG 1 Rp18.370.500 E24:N/SIDE AIR BAG
33 09115-06004-000 BOLT (6X16) 3 Rp19.500
34 DISCONTINUE
SUB: 38930-62J00-000		 SENSOR ASSY, FORWARD 1 -
35 09115-06004-000 BOLT (6X16) 1 Rp19.500
36 38930-62J10-000 SENSOR ASSY, SIDE AIR BAG 2 Rp1.541.000 E24:W/SIDE AIR BAG
37 09115-06004-000 BOLT (6X16) 2 Rp19.500 E24:W/SIDE AIR BAG
38 DISCONTINUE
SUB: 84761-50X50-000		 FILM, SIDE SILL INNER 1 - N/SIDE AIR BAG
39-1 38880-63J31-000 CONTROLLER ASSY, AT 1 - AT:E24
39-2 38880-63J80-000 CONTROLLER ASSY, AT 1 - AT:RS413:E30
39-3 38880-63J90-000 CONTROLLER ASSY, AT 1 Rp12.654.500 AT:RS415:E30
39-4 38880-63J02-000 CONTROLLER ASSY, AT 1 - AT:RS413:E35
39-5 38880-63J62-000 CONTROLLER ASSY, AT 1 - AT:RS415:E35
40 02162-0610A-000
SUB: 02162-06103-000		 BOLT 2 Rp5.000 AT
41 DISCONTINUE
SUB: 38881-63J00-000		 BRACKET, AT CONTROLLER 1 - AT
42 08316-1008A-000
SUB: 08316B10083N000		 NUT 2 Rp3.500 AT
43-3 DISCONTINUE
SUB: 34600-63J20-000		 MONITOR ASSY, INFORMATION 1 - W/INFORMATION DISPLAY & W/MILE SPEEDOMETER DISPLAY
43-1 34600-63J10-000 CLOCK ASSY 1 Rp1.194.500 N/INFORMATION DISPLAY
43-2 34600-63J03-000
SUB: 34600-63J02-000		 MONITOR ASSY, INFORMATION 1 Rp1.633.500 W/INFORMATION DISPLAY & W/KM SPEEDOMETER DISPLAY
44 09409-08326-000
SUB: 09409B08326N000		 •CLIP 3 Rp8.000
45 95643-58J00-000 SENSOR, OUTSIDE TEMPERATURE 1 Rp262.000
46 37178-62J00-000 SWITCH ASSY, BACK DOOR 1 Rp489.000 N/KEYLESS START
47 DISCONTINUE
SUB: 09132-04035-000		 SCREW 2 - N/KEYLESS START
48 DISCONTINUE
SUB: 37179-62J00-000		 SWITCH ASSY, BACK DOOR 1 - W/KEYLESS START
49 DISCONTINUE
SUB: 09132-04035-000		 SCREW 2 - W/KEYLESS START
50 DISCONTINUE
SUB: 37176-62J00-000		 SCREW, BACK DOOR SWITCH 2 - W/KEYLESS START
51 DISCONTINUE
SUB: 37175-62J00-000		 ANTENNA ASSY, INSIDE 1 - E35:W/KEYLESS START
52 03141-0516B-000
SUB: 03142-05163-000		 SCREW 2 Rp3.500 E35:W/KEYLESS START
53 37175-62J10-000 ANTENNA ASSY, LUGGAGE 1 Rp478.500 E35:W/KEYLESS START
54 03541-0516A-000
SUB: 03541B05163N000		 SCREW 2 Rp3.500 E35:W/KEYLESS START
55 DISCONTINUE
SUB: 37175-62J20-000		 ANTENNA ASSY, BACK DOOR 1 - E35:W/KEYLESS START
56 03541-0516A-000
SUB: 03541B05163N000		 SCREW 2 Rp3.500 E35:W/KEYLESS START
57 37970-76F01-000 SWITCH ASSY, CLUTCH START 1 - RS413:E35:MT
58 09140-10043-000 NUT 1 Rp16.500 RS413:E35:MT
59 36771-58J00-000 LABEL, SECURITY ALARM 1 Rp30.000 E35
60 37171-62J01-000 CONTROLLER ASSY, KEYLESS START 1 - E35:W/KEYLESS START
61 02162-0612B-000
SUB: 02162-06123-000		 BOLT 1 Rp16.000 E35:W/KEYLESS START

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
