Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT SUSPENSIONFRONT DRIVE SHAFT (MT)FRONT DRIVE SHAFT (AGS)FRONT SUSPENSION FRAMEREAR SUSPENSIONROAD WHEEL/TIRESTEERING WHEELSTEERING COLUMNSTEERING UNITPEDAL/PEDAL BRACKET (5MT)PEDAL/PEDAL BRACKET (5AGS)BRAKE MASTER CYLINDERBRAKE PIPINGANTI LOCK BRAKE SYSTEMFRONT WHEEL BRAKEREAR WHEEL BRAKEPARKING BRAKE

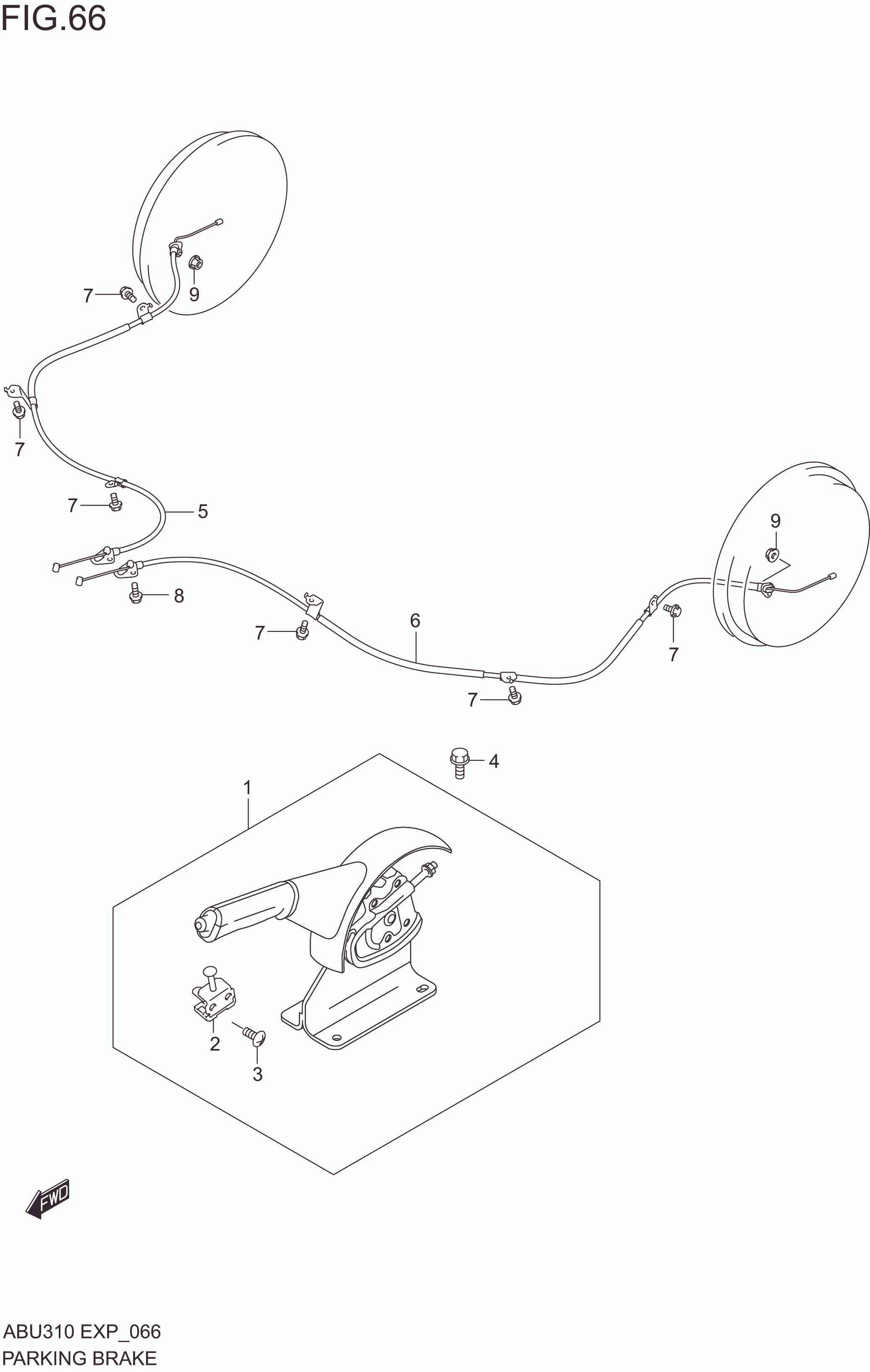

PARKING BRAKE

PARKING BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 54100M62S00-5PK LEVER ASSY, PARKING BRAKE 1 Rp497.000
2 37940M62S00-000 .SWITCH ASSY, PARKING BRAKE 1 Rp21.500
3 54115-76G00-000 .TAPPING SCREW 1 Rp16.000
4 01551-0820A-000 BOLT 3 Rp17.500
5 54401M62S00-000 CABLE, PARKING BRAKE RH 1 Rp219.000
6 54402M62S00-000 CABLE, PARKING BRAKE LH 1 Rp219.000
7 02162-0612A-000 BOLT 6 Rp11.000
8 02162-0616A-000 BOLT 2 Rp3.000
9 53771-79G00-000 CLIP, PARKING CABLE 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
