Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT SUSPENSIONFRONT DRIVE SHAFT (MT)FRONT DRIVE SHAFT (AGS)FRONT SUSPENSION FRAMEREAR SUSPENSIONROAD WHEEL/TIRESTEERING WHEELSTEERING COLUMNSTEERING UNITPEDAL/PEDAL BRACKET (5MT)PEDAL/PEDAL BRACKET (5AGS)BRAKE MASTER CYLINDERBRAKE PIPINGANTI LOCK BRAKE SYSTEMFRONT WHEEL BRAKEREAR WHEEL BRAKEPARKING BRAKE

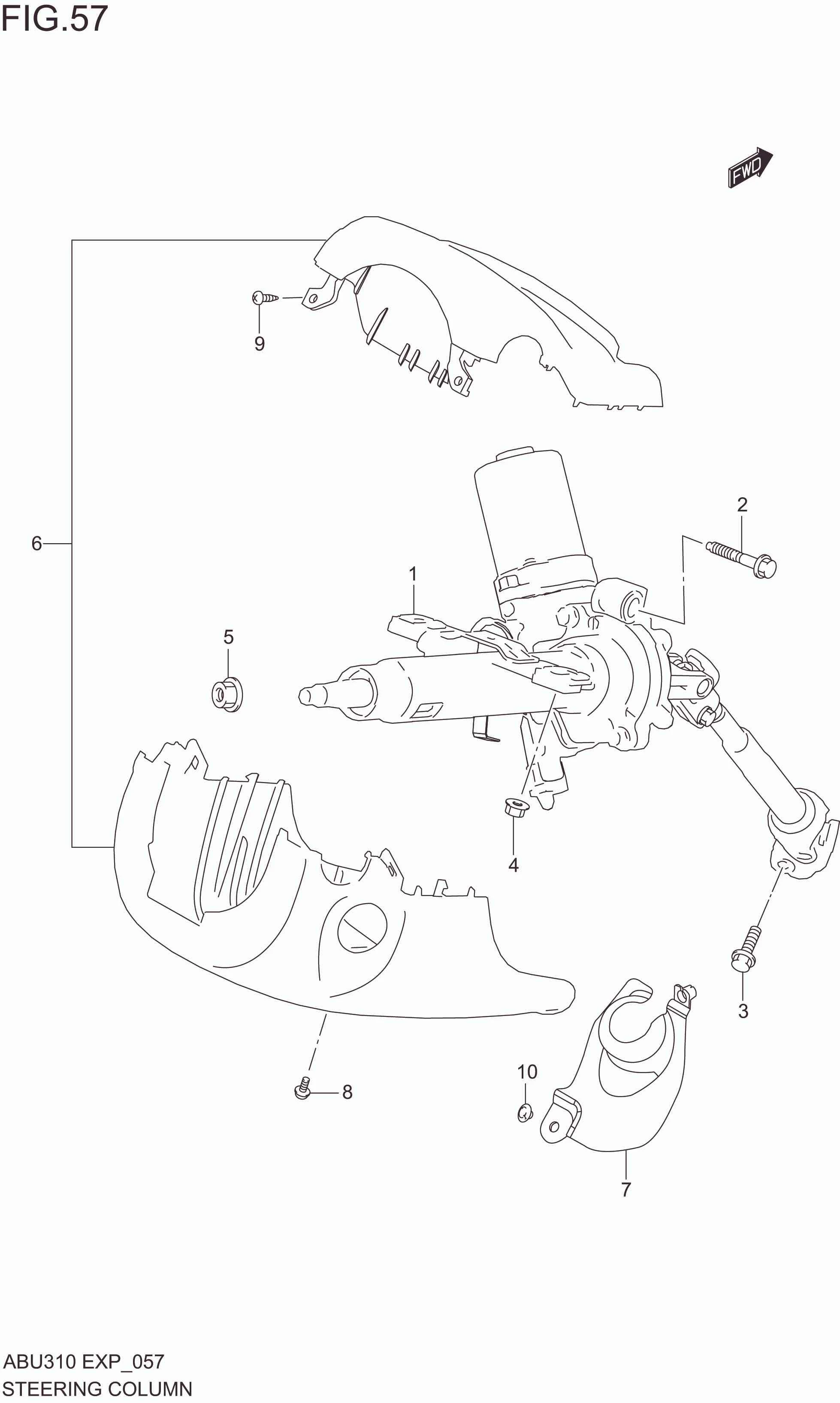

STEERING COLUMN

STEERING COLUMN
No No. Part Description Qty Price Per Pcs Remarks
1 48200M62S30-000 COLUMN ASSY,COLPS STEERING 1 Rp9.919.500
2 48215-74P00-000 BOLT,STEERING COLUMN LOWER 1 Rp36.500
3 09117-08106-000 BOLT 1 Rp23.500
4 08316-1008A-000 NUT 2 Rp3.500
5 08316-1012A-000 NUT 1 Rp6.500
6 48400M62S00-5PK COVER ASSY,STEERING COLUMN 1 Rp146.000
7 48481M62S00-000 COVER,STEERING JOINT 1 Rp24.000
8 09136M05030-000
SUB: 09136-05030-000		 SCREW 1 Rp4.500
9 03211M0512A-000
SUB: 03211-0512A-000		 SCREW 2 Rp4.500
10 09148M05L11-000 CLIP 1 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
