Preview Engine Transmission Electrical Suspension Body

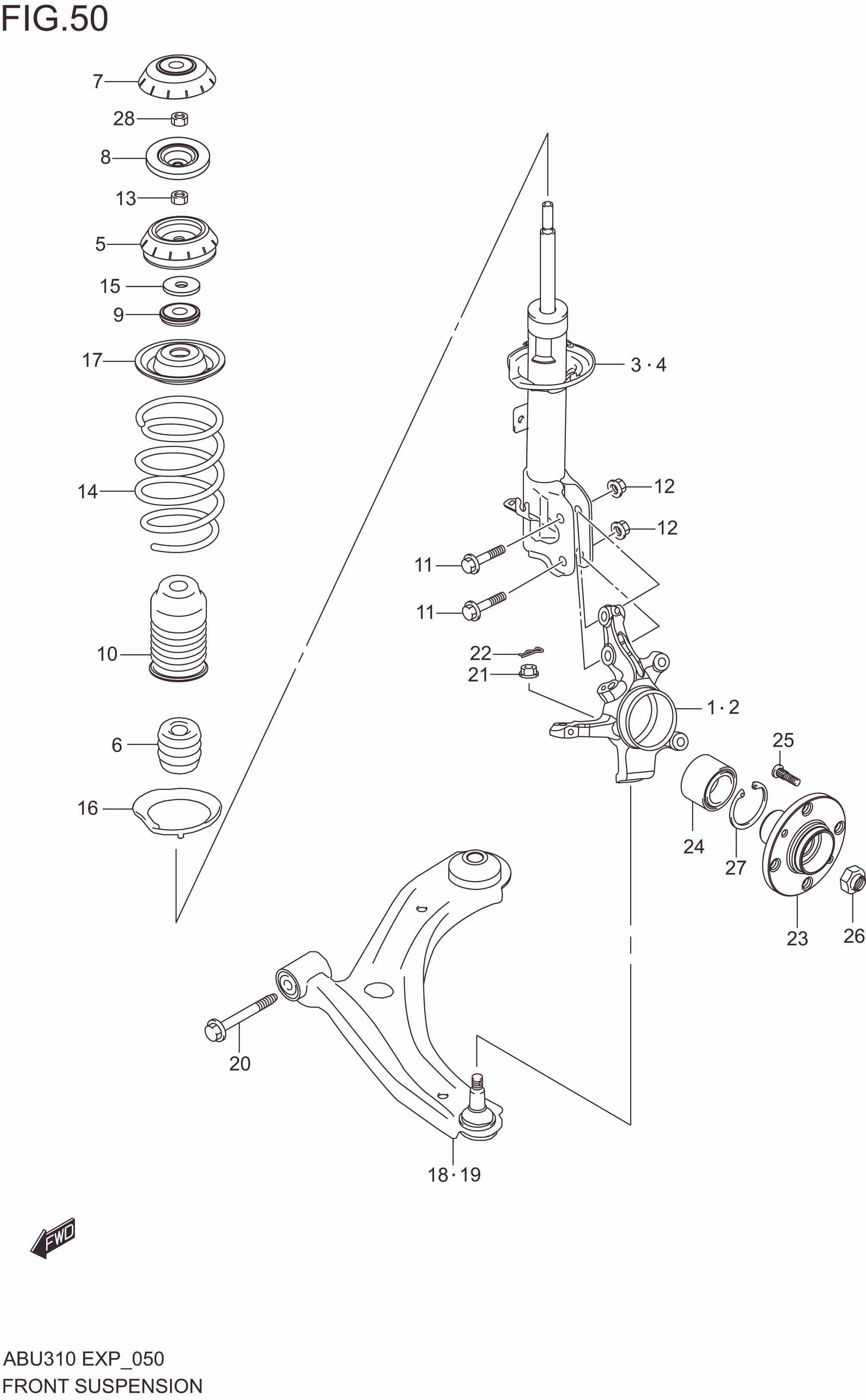

No	No. Part	Description	Qty	Price Per Pcs
1	45111M62S10-000	KNUCKLE,STEERING,RH	1	Rp600.000
2	45151M62S10-000	KNUCKLE,STEERING,LH	1	Rp600.000
3	41601M62S00-000	STRUT ASSY,FRONT SPNSN,RH	1	Rp510.000
4	41602M62S00-000	STRUT ASSY,FRONT SPNSN,LH	1	Rp510.000
5	41710M62S00-000	SUPPORT ,FRONT STRUT	2	Rp86.000
6	42111M62S50-000	STOPPER,FRONT BUMPER	2	Rp228.500
7	41724-72R00-000	CAP,STRUT ROD	2	Rp141.000
8	41720M62S00-000	STOPPER,FRONT STRUT REBOUND	2	Rp54.000
9	41741M66R00-000	BEARING,FRONT STRUT	2	Rp98.500
10	41931M62S00-000	COVER,STRUT DUST	2	Rp56.500
11	41615-52R00-000	BOLT	4	Rp40.000
12	41616M76M00-000	NUT,STRUT BRACKET	4	Rp15.000
13	08310-0012A-000	NUT	2	Rp17.500
14	41111M62S00-000	SPRING,FRONT COIL	2	Rp185.500
15	41711-52R00-000	PLATE,STRUT BEARING	2	Rp149.500
16	41212M62S00-000	SEAT,FRONT SPRING LWR	2	Rp58.500
17	41230M74P00-000	SEAT,FRONT SPRING UPR	2	Rp49.500
18	45201M62S01-000 SUB: 45201M62S00-000	ARM ASSY,FRONT SUSPENSION,RH	1	Rp460.000
19	45202M62S01-000 SUB: 45202M62S00-000	ARM ASSY,FRONT SUSPENSION,LH	1	Rp460.000
20	45853-74P01-000	BOLT,SPNSN ARM FR BUSHING	2	Rp69.000
21	09159-12069-000	NUT	2	Rp23.000
22	09385-12002-000	PIN	2	Rp4.500
23	43421M60GA0-000 SUB: 43421M60GA1-000	HUB,FRONT WHEEL	2	Rp347.500
24	43440M74L01-000 SUB: 43440M83K11-000	BEARING,FRONT WHEEL	2	Rp674.000
25	43423M79G00-000	BOLT,FRONT HUB	8	Rp22.500
26	09159-18024-000	NUT	2	Rp74.500
27	46861M60G00-000	CIRCLIP	2	Rp16.500
28	08310-0012A-000	NUT	2	Rp17.500
