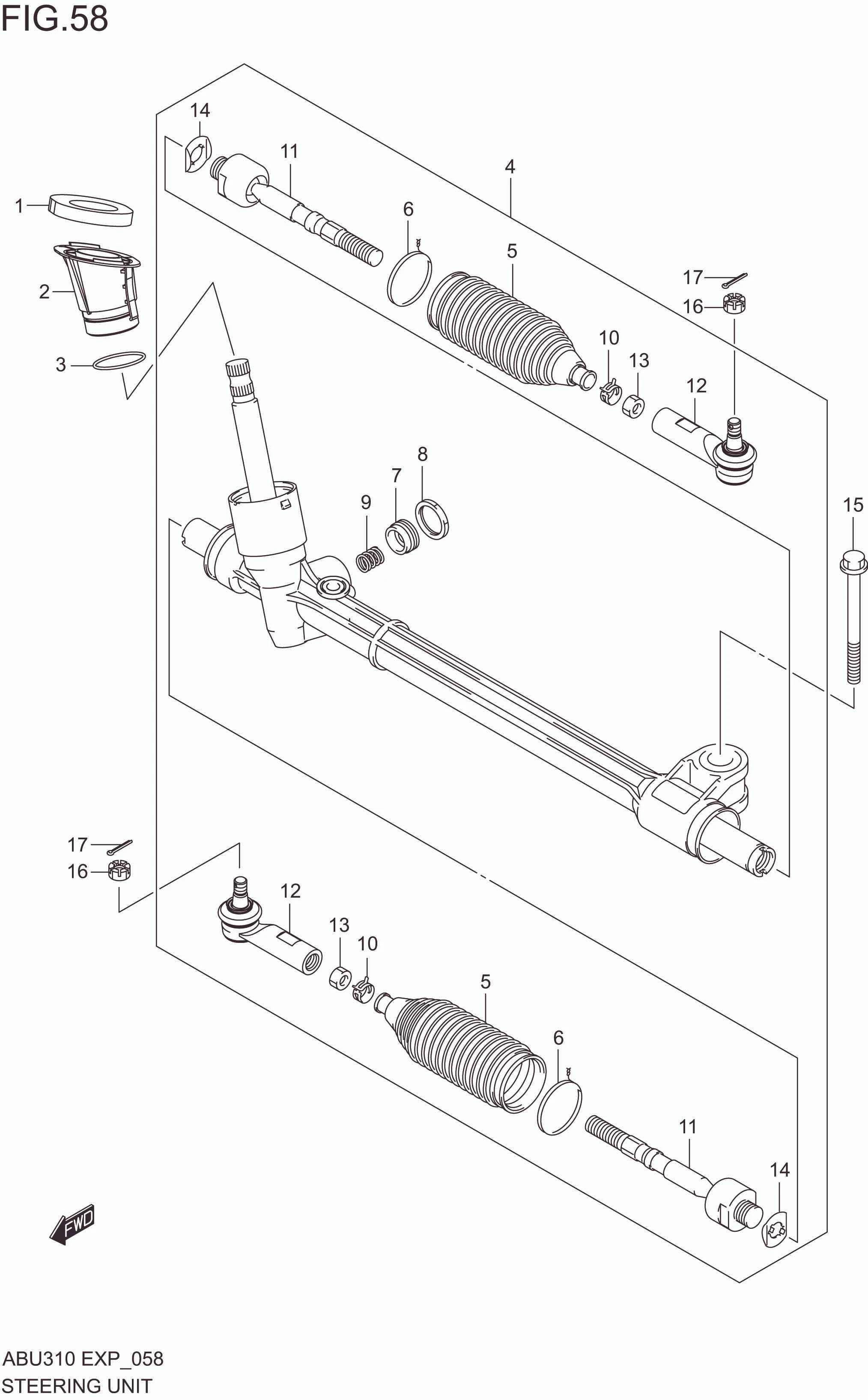

STEERING UNIT

STEERING UNIT
No No. Part Description Qty Price Per Pcs Remarks
1 48451M74P00-000 PACKING,STRG GEAR 1 Rp47.000
2 48452M62S00-000 COVER,STRG GEAR,RH 1 Rp28.500
3 48453M62S00-000 O-RING 1 Rp12.000
4 48500M62S21-000
SUB: 48500M62S20-000		 BOX ASSY,STRG GEAR 1 Rp2.857.000
5 48571M62S00-000 .BOOT, STRG 2 Rp69.500
6 48595M77P00-000 .STRAP 2 Rp6.000
7 48592M62S00-000 .PLUG 1 Rp31.000
8 48593M74L10-000 .NUT 1 Rp18.500
9 48538M84021-000 .SPRING 1 Rp10.000
10 48575M84020-000 .CLIP 2 Rp6.500
11 48830M62S00-000 .TIE-ROD 2 Rp182.000
12 48810M62S00-000 .END, STEERING TIE-ROD 2 Rp127.500
13 48817M62S00-000 .NUT 2 Rp11.000
14 48841M62S00-000 .WASHER 2 Rp8.000
15 09116-12010-000 BOLT 2 Rp60.000
16 09140-12039-000 NUT 2 Rp6.500
17 09385-12002-000 CLIP 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
