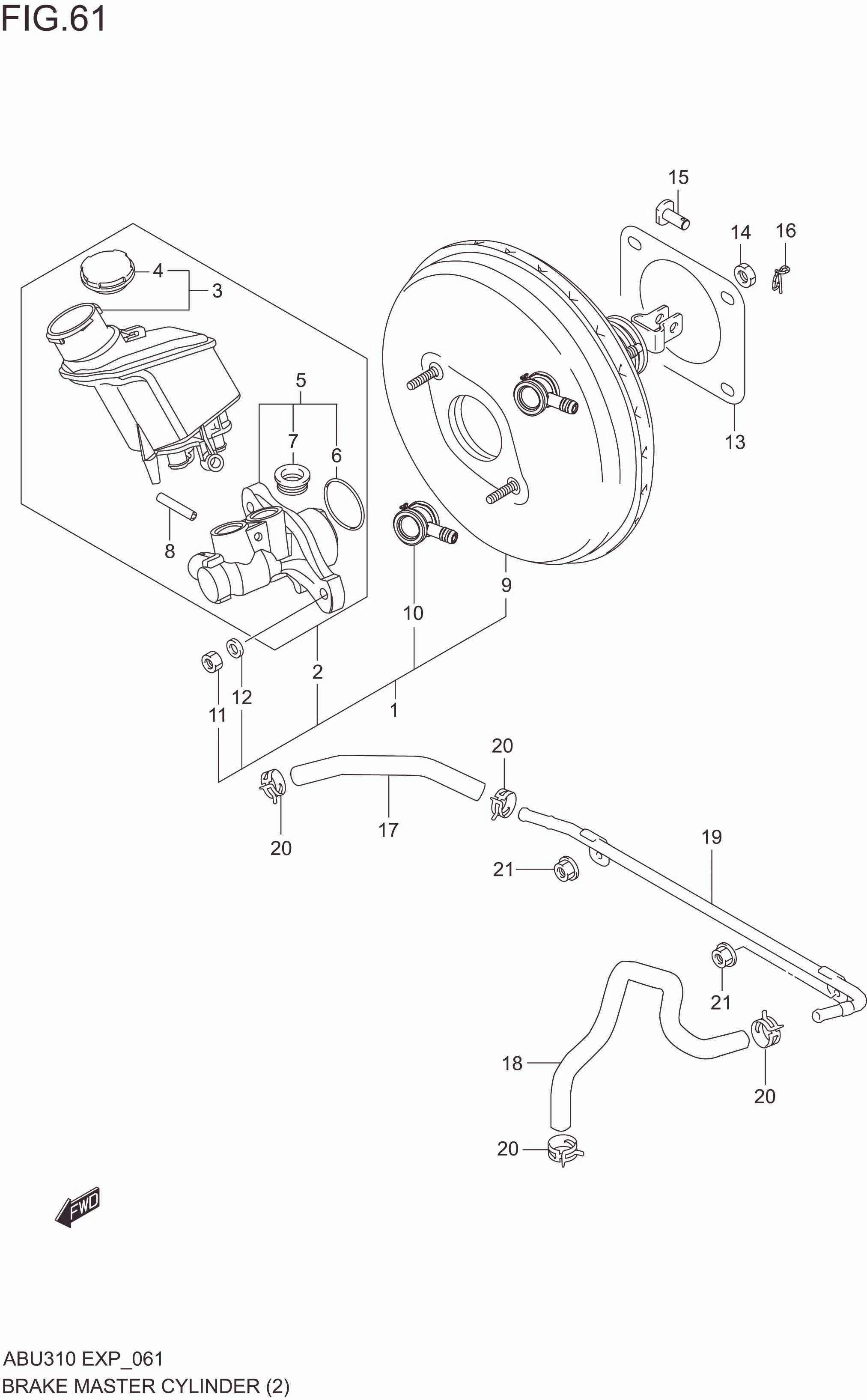

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	51000M62S02-000	BOOSTER MASTER CYLINDER ASSY	1	Rp2.213.500
2	51100M62S00-000	.CYLINDER ASSY, BRAKE MASTER	1	Rp1.426.000
3	51200M62S00-000	..RESERVOIR ASSY, BRAKE MASTER	1	Rp264.000
4	51220M62S00-000	...CAP, RESERVOIR	1	Rp45.000
5	51110M62S00-000	..MASTER CYLINDER ASSY, W/O RESERVOIR	1	Rp1.219.000
6	51311M62S00-000	...SEAL, QUARD RING	1	Rp11.500
7	51232M62S00-000	...SEAL RESERVOIR	2	Rp26.000
8	51233M62S00-000	..PIN	1	Rp15.500
9	51300M62S00-000	.BOOSTER ASSY, BRAKE MASTER	1	Rp1.216.000
10	51230M62S00-000	.KIT NRV	1	Rp37.000
11	51313M62S00-000	.NUT	2	Rp4.500
12	51314M62S00-000	.SPRING WASHER	2	Rp4.000
13-1	51132M79G10-000 SUB: 51132M79G00-000	PACKING, BRAKE MASTER CYLINDER	1	Rp5.500	VENDOR 1
13-2	51132M79G10-000	PACKING, BRAKE MASTER CYLINDER	1	Rp5.500	VENDOR 2
14	09159-08127-000 SUB: 09159M08153-000	NUT	4	Rp11.000
15	51120M60M00-000	PIN, BRAKE MASTER CYLINDER	1	Rp10.500
16	09385M08L01-000	CLIP	1	Rp9.000
17	51021M62S00-000	HOSE, VACUUM BSTR TO PIPE	1	Rp43.500
18	51821M62S00-000	HOSE, BRAKE VACUUM PIPE TO INTK	1	Rp75.000
19	51870M62S00-000	PIPE, BRAKE VACUUM	1	Rp80.000
20	09401M15422-000	CLAMP	4	Rp9.000
21	08316-1006A-000	NUT	2	Rp2.000
