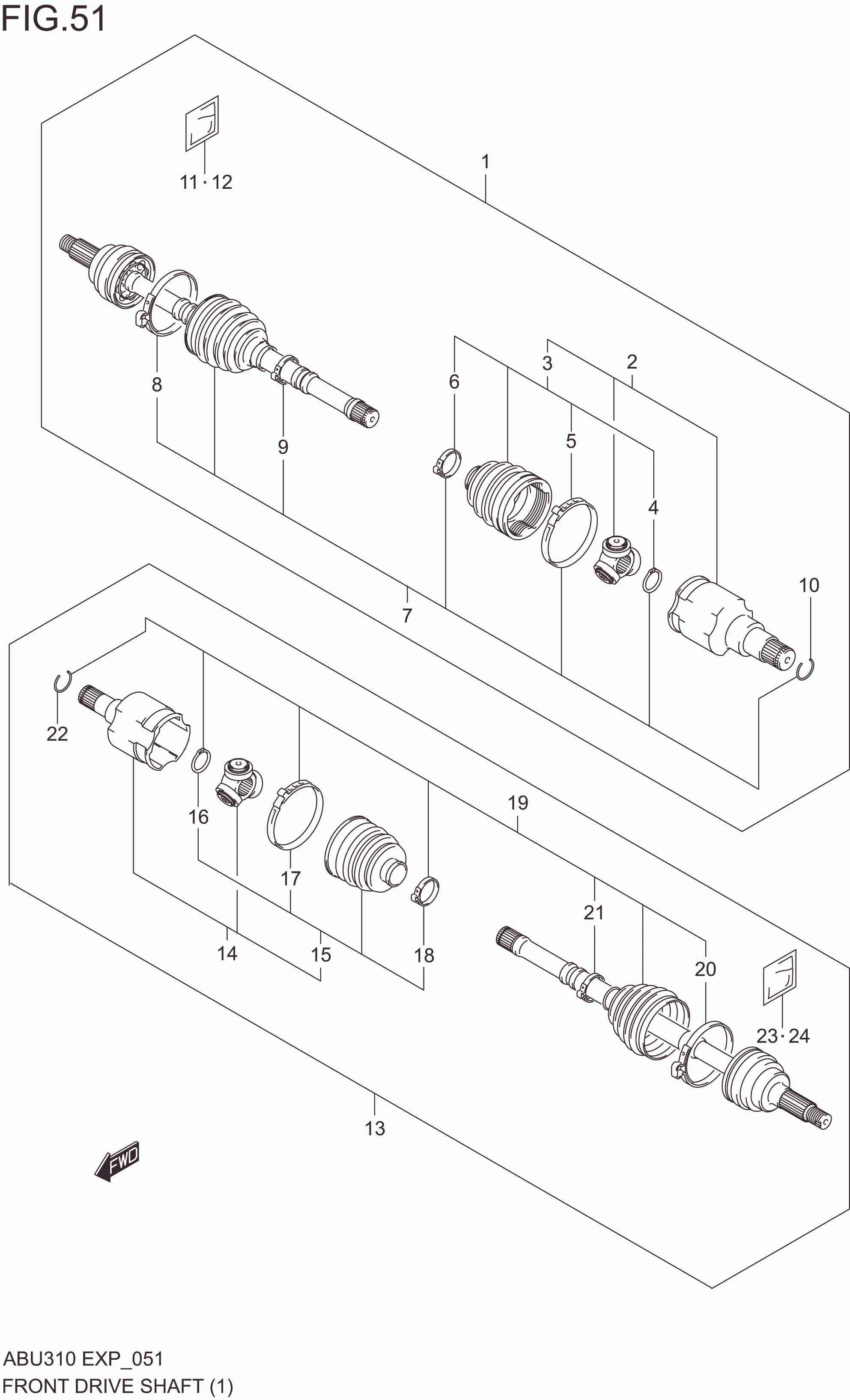

FRONT DRIVE SHAFT (MT)

FRONT DRIVE SHAFT (MT)
No No. Part Description Qty Price Per Pcs Remarks
1 44101M62S00-000 SHAFT ASSY,FRONT DRIVE,RH 1 Rp2.910.500
2 44116M62S00-000 .JOINT ASSY,DIFF SIDE 1 Rp1.671.500
3 44119M62SA0-000 ..BOOT SERV KIT,TP JOINT 1 Rp365.500
4 27182M62SA0-000 ...RING SERVICE KIT 1 Rp216.000
5 44122M65L10-000 ...CLAMP,BOOT 1 Rp171.000
6 44121M65L10-000 ...CLAMP,BOOT 1 Rp171.000
7 44125M62SA0-000 .BOOT SERV KIT,C/V JOINT 1 Rp297.000
8 44123M65L10-000 ...CLAMP,BOOT 1 Rp171.000
9 44124M65L10-000 ...CLAMP,BOOT 1 Rp171.000
10 44111M65L10-000 .CIRCLIP,JOINT 1 Rp213.500
11 44141M62SA0-000 .GREASE SERVICE KIT 1 Rp334.000
12 44140M62SA0-000 .GREASE SERVICE KIT 1 Rp334.000
13 44102M62S00-000 SHAFT ASSY,FRONT DRIVE,LH 1 Rp2.910.500
14 44116M62S00-000 .JOINT ASSY,DIFF SIDE 1 Rp1.671.500
15 44119M62SA0-000 ..BOOT SERV KIT,TP JOINT 1 Rp365.500
16 27182M62SA0-000 ...RING SERVICE KIT 1 Rp216.000
17 44122M65L10-000 ...CLAMP,BOOT 1 Rp171.000
18 44121M65L10-000 ...CLAMP,BOOT 1 Rp171.000
19 44125M62SA0-000 .BOOT SERV KIT,C/V JOINT 1 Rp297.000
20 44123M65L10-000 ...CLAMP,BOOT 1 Rp171.000
21 44124M65L10-000 ...CLAMP,BOOT 1 Rp171.000
22 44111M65L10-000 .CIRCLIP,JOINT 1 Rp213.500
23 44141M62SA0-000 .GREASE SERVICE KIT 1 Rp334.000
24 44140M62SA0-000 .GREASE SERVICE KIT 1 Rp334.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
