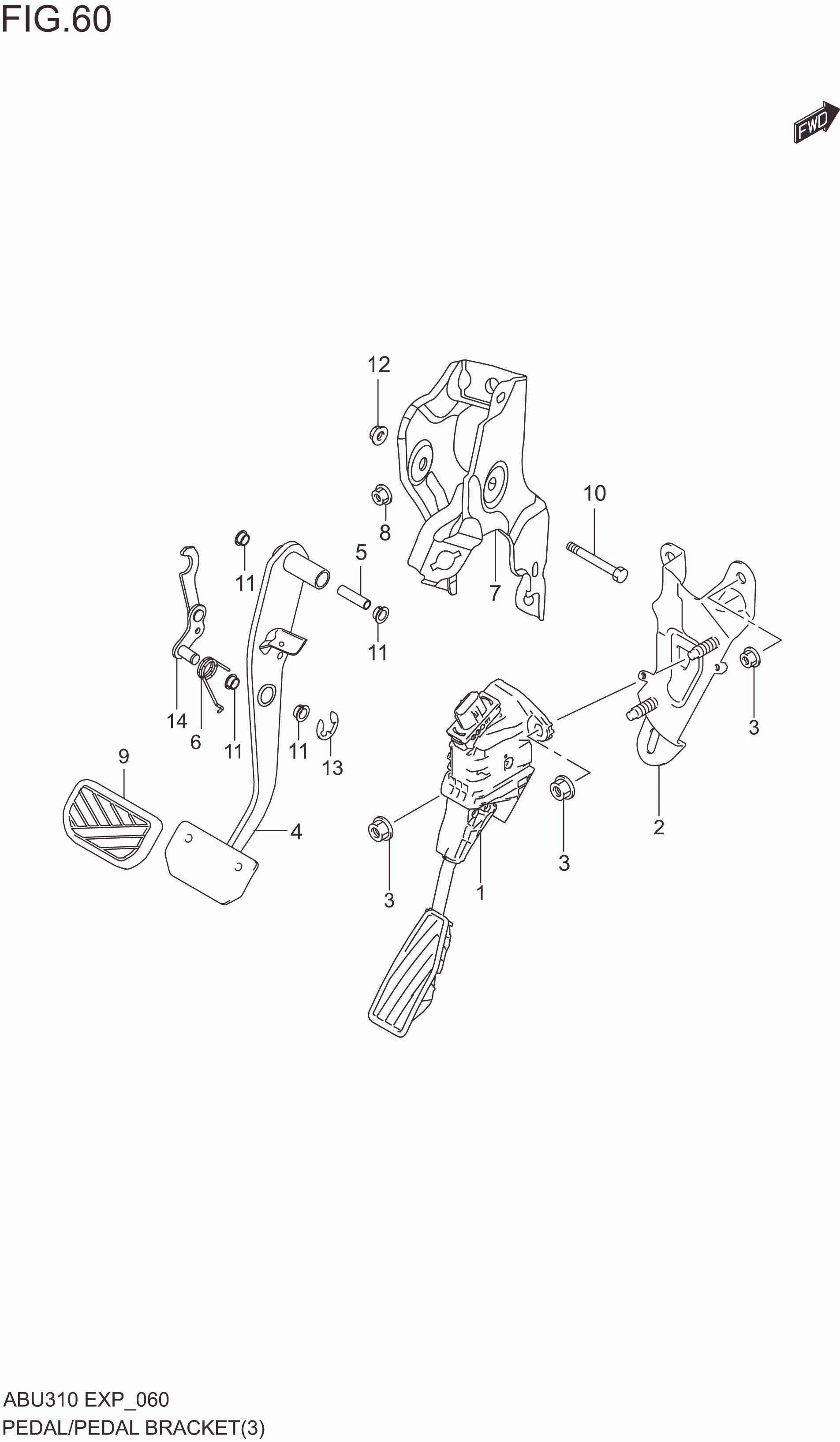

PEDAL/PEDAL BRACKET (5AGS)

PEDAL/PEDAL BRACKET (5AGS)
No No. Part Description Qty Price Per Pcs Remarks
1 49400M62S00-000 PEDAL ASSY,ACCELERATOR 1 Rp744.500
2 49511M62S00-000 BRACKET,ACCELERATOR PEDAL 1 Rp57.000
3 09159-08127-000
SUB: 09159M08153-000		 NUT 5 Rp11.000
4 49610M62S10-000 PEDAL ,BRAKE 1 Rp180.500
5 49671M74P00-000 SPACER,BRAKE PEDAL SHAFT 1 Rp10.500
6 49691M73H20-000 SPRING,BRAKE PEDAL RELEASE 1 Rp9.000
7 49710M62S00-000 BRACKET ,BRAKE PEDAL 1 Rp100.000
8 09159-08127-000
SUB: 09159M08153-000		 NUT 1 Rp11.000
9 49751M50M10-000 PAD,PEDAL 1 Rp24.000
10 09100-10124-000 BOLT 1 Rp19.500
11 09306M13004-000
SUB: 09307-13005-000		 BUSH 4 Rp11.500
12 08316-1010A-000 NUT 1 Rp3.500
13 08332-1110A-000 E-RING 1 Rp12.500
14 49630M62S00-000 LEVER,BRAKE PEDAL 1 Rp40.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
