Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT SUSPENSIONFRONT DRIVE SHAFT (MT)FRONT DRIVE SHAFT (AGS)FRONT SUSPENSION FRAMEREAR SUSPENSIONROAD WHEEL/TIRESTEERING WHEELSTEERING COLUMNSTEERING UNITPEDAL/PEDAL BRACKET (5MT)PEDAL/PEDAL BRACKET (5AGS)BRAKE MASTER CYLINDERBRAKE PIPINGANTI LOCK BRAKE SYSTEMFRONT WHEEL BRAKEREAR WHEEL BRAKEPARKING BRAKE

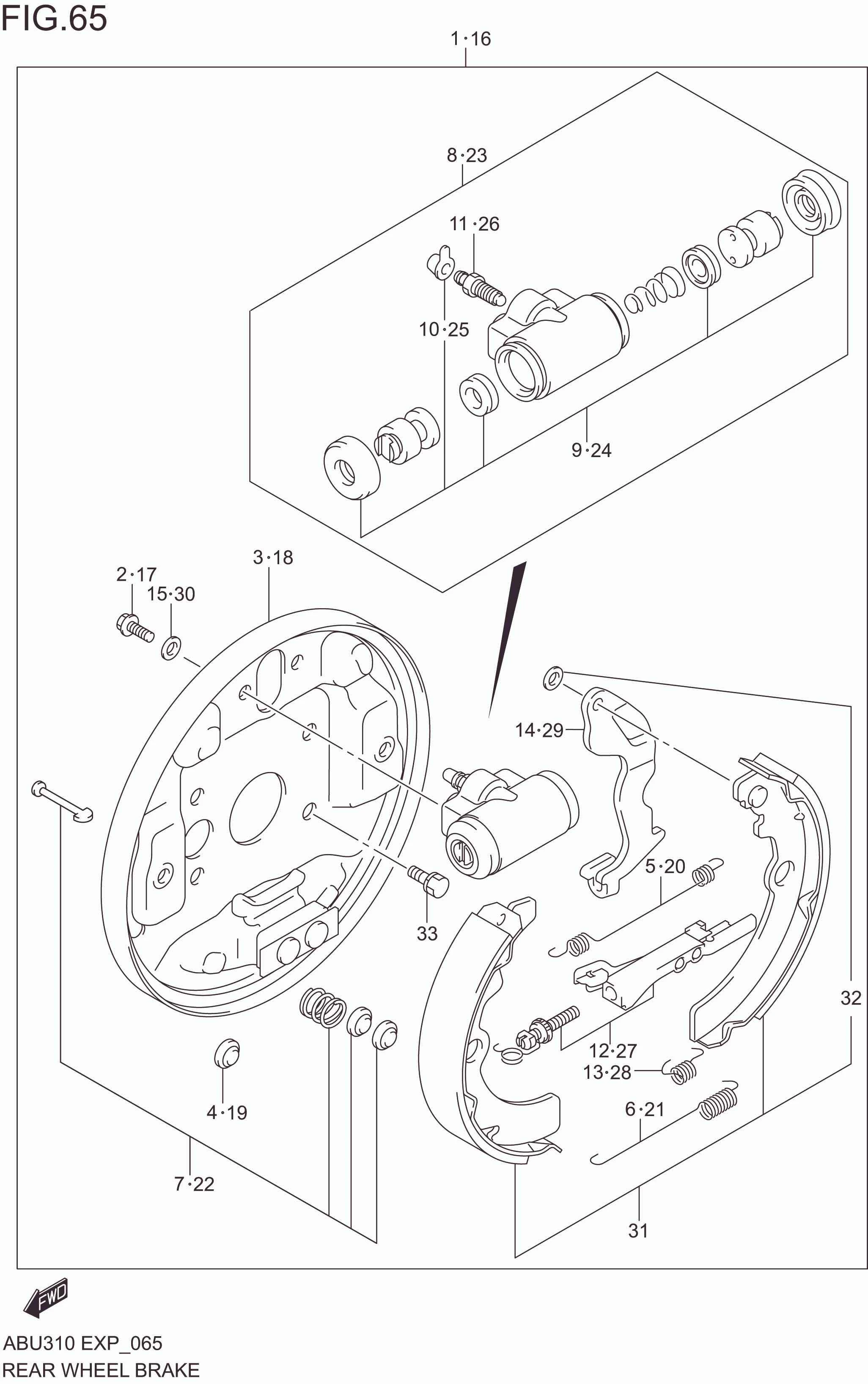

REAR WHEEL BRAKE

REAR WHEEL BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 53001M62S00-000 BRAKE ASSY, REAR RH 1 Rp843.500
2 52476M68K00-000 .BOLT, WHEEL CYLINDER 1 Rp10.500
3 53101M62S00-000 .PLATE RR BRAKE, RH 1 Rp747.500
4 53141M79F10-000 .PLUG 1 Rp5.500
5 53231M62S00-000 .SPRING, SHOE RETURN UPR 1 Rp20.500
6 53232M62S00-000 .SPRING, SHOE RETURN LWR 1 Rp13.500
7 53240M62S00-000 .SET, SHOE HOLD DOWN 1 Rp26.000
8 53402M62S00-000 .CYLINDER ASSY, RR WHEEL 1 Rp279.000
9 53400M79F10-000 ..CUP SET, RR WHEEL CYLINDER 1 Rp43.500
10 55156M68K00-000 ...CAP, BLEEDER PLUG 1 Rp5.500
11 55473M62S00-000 ..BLEEDER SCREW 1 Rp20.000
12 53701M62S00-000 .STRUT ASSY, RH 1 Rp185.000
13 53715M76M00-000 .SPRING, STRUT RETURN RH 1 Rp6.000
14 53751M62S00-000 .LEVER, PARKING SHOE RH 1 Rp55.000
15 DISCONTINUE
SUB: 08321-0106A-000		 .SPRING WASHER 1 -
16 53002M62S00-000 BRAKE ASSY, REAR LH 1 Rp843.500
17 52476M68K00-000 .BOLT, WHEEL CYLINDER 1 Rp10.500
18 53102M62S00-000 .PLATE RR BRAKE, LH 1 Rp747.500
19 53141M79F10-000 .PLUG 1 Rp5.500
20 53231M62S00-000 .SPRING, SHOE RETURN UPR 1 Rp20.500
21 53232M62S00-000 .SPRING, SHOE RETURN LWR 1 Rp13.500
22 53240M62S00-000 .SET, SHOE HOLD DOWN 1 Rp26.000
23 53402M62S00-000 .CYLINDER ASSY, RR WHEEL 1 Rp279.000
24 53400M79F10-000 ..CUP SET, RR WHEEL CYLINDER 1 Rp43.500
25 55156M68K00-000 ...CAP, BLEEDER PLUG 1 Rp5.500
26 55473M62S00-000 ..BLEEDER SCREW 1 Rp20.000
27 53702M62S00-000 .STRUT ASSY, LH 1 Rp185.000
28 53716M76M00-000 .SPRING, STRUT RETURN LH 1 Rp6.000
29 53761M62S00-000 .LEVER, PARKING SHOE LH 1 Rp55.000
30 DISCONTINUE
SUB: 08321-0106A-000		 .SPRING WASHER 1 -
31 53200M62S00-000 SHOE KIT 1 Rp410.000
32 53753M68K00-000 .PUSH NUT 2 Rp5.500
33 53118M78L00-000 BOLT, REAR BRAKE 8 Rp9.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
