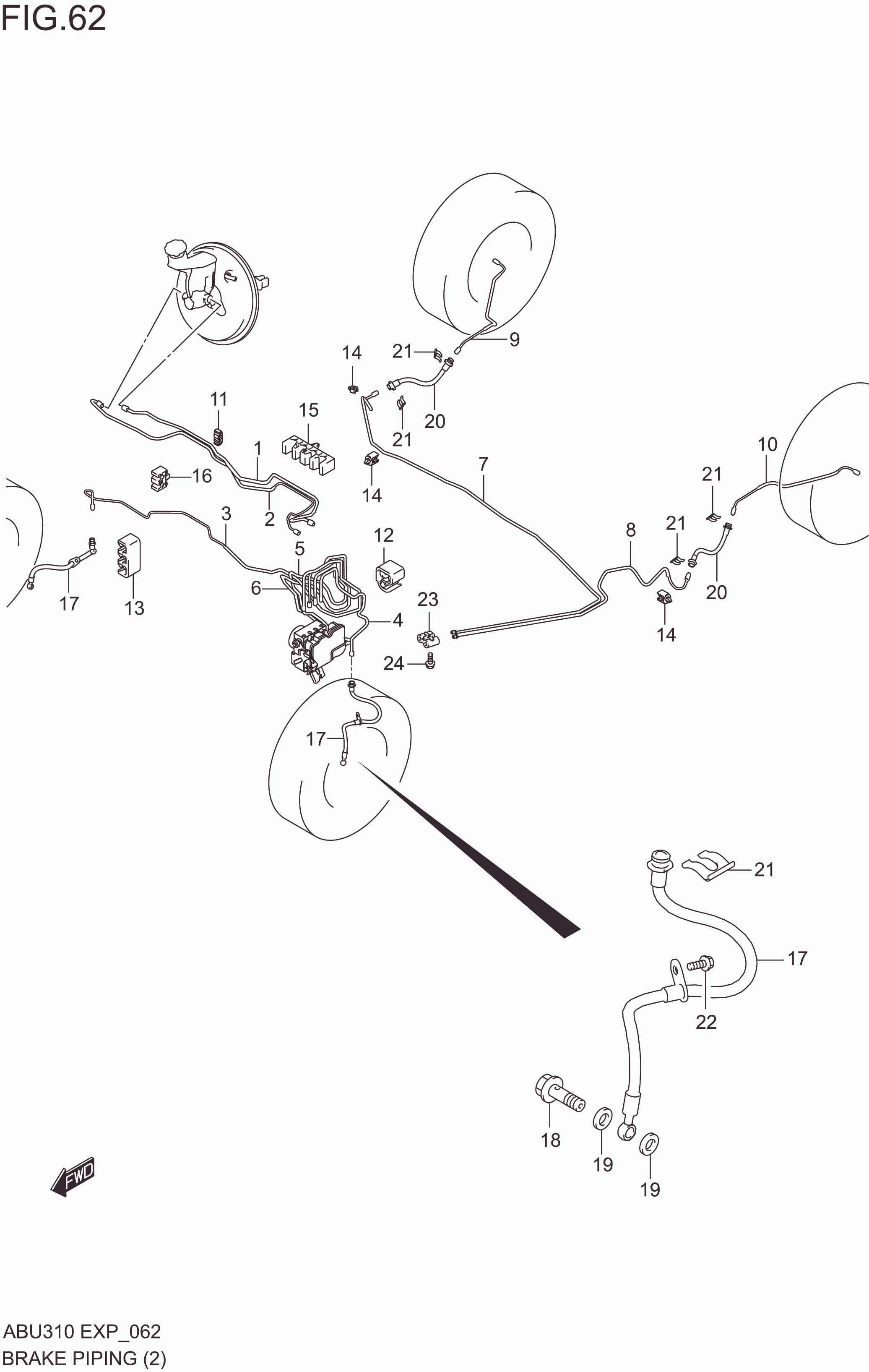

No	No. Part	Description	Qty	Price Per Pcs
1	51410M62S00-000	PIPE, MA PRI TO HU	1	Rp26.000
2	51420M62S00-000	PIPE, MA SEC TO HU	1	Rp31.500
3	51430M62S01-000	PIPE, HU TO FR BK HOSE RH	1	Rp81.000
4	51440M62S01-000	PIPE, HU TO FR BK HOSE LH	1	Rp81.000
5	51450M62S00-000	PIPE, HU TO 4 JT RH	1	Rp60.000
6	51460M62S00-000	PIPE, HU TO 4 JT LH	1	Rp60.000
7	51470M62S00-000	PIPE, 4 JT TO RR BK HOSE RH	1	Rp159.000
8	51480M62S00-000	PIPE, 4 JT TO RR BK HOSE LH	1	Rp159.000
9	51510M62S00-000	PIPE, RR BK HOSE TO RR W/C RH	1	Rp33.500
10	51520M62S00-000	PIPE, RR BK HOSE TO RR W/C LH	1	Rp33.500
11	51751M75J00-000	CLAMP, BK PIPE MAIN FL DOUBLE	5	Rp10.500
12	DISCONTINUE SUB: 51752M70F00-000	CLAMP, BK PIPE DASH	2	-
13	51753M74G60-000 SUB: 51753M75J00-000	CLAMP, BK PIPE HU	1	Rp34.500
14	51761M60M20-000	CLAMP, BK PIPE REAR FL SINGLE	3	Rp5.500
15	51761M62S00-000	CLAMP, BK PIPE STRUT QDRPL	1	Rp8.000
16	51761M62S10-000	CLAMP, BK PIPE STRUT DOUBLE	1	Rp6.500
17	51550M62S01-000 SUB: 51550M62S00-000	HOSE, FR BRAKE FLEXIBLE	2	Rp161.000
18	51561M55K00-000	BOLT, FR DISC FLEXIBLE HOSE	2	Rp8.500
19	51562M55K00-000	WASHER, FR DISC FLEXIBLE HOSE	4	Rp8.500
20	51570M69R00-000	HOSE, RR BRAKE FLEXIBLE	2	Rp111.000
21	09383M13005-000	E-RING, BRAKE FLEXIBLE HOSE	6	Rp7.000
22	01551-0816C-000 SUB: 01551-0816A-000	BOLT	2	Rp13.500
23	51630M70F00-000	JOINT, BRAKE 4 WAY	1	Rp122.000
24	02162-0625A-000	BOLT	1	Rp3.500
