Suzuki S-Presso

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT SUSPENSIONFRONT DRIVE SHAFT (MT)FRONT DRIVE SHAFT (AGS)FRONT SUSPENSION FRAMEREAR SUSPENSIONROAD WHEEL/TIRESTEERING WHEELSTEERING COLUMNSTEERING UNITPEDAL/PEDAL BRACKET (5MT)PEDAL/PEDAL BRACKET (5AGS)BRAKE MASTER CYLINDERBRAKE PIPINGANTI LOCK BRAKE SYSTEMFRONT WHEEL BRAKEREAR WHEEL BRAKEPARKING BRAKE

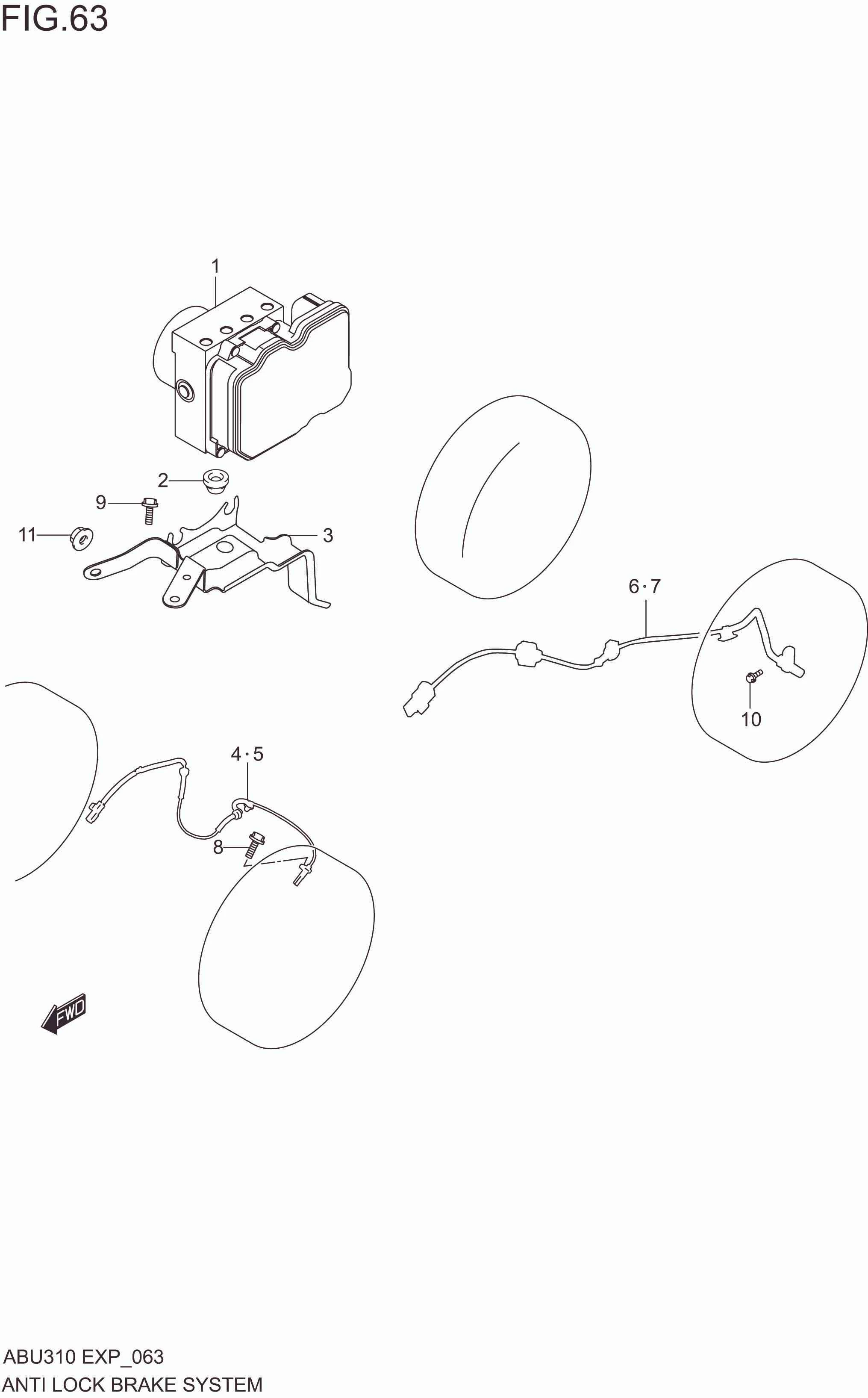

ANTI LOCK BRAKE SYSTEM

ANTI LOCK BRAKE SYSTEM
No No. Part Description Qty Price Per Pcs Remarks
1 56130M62S01-000
SUB: 56130M62S00-000		 ACTUATOR ASSY, ABS 1 Rp7.553.500
2 56121-58J00-000 DAMPER, ACTUATOR MOUNT 1 Rp40.500
3 56161M62S00-000 BRACKET, ABS ACTUATOR 1 Rp62.000
4 56210M62S00-000 SENSOR, FR WHEEL RH 1 Rp290.500
5 56220M62S00-000 SENSOR, FR WHEEL LH 1 Rp290.500
6 56310M62S00-000 SENSOR, RR WHEEL RH 1 Rp268.500
7 56320M62S00-000 SENSOR, RR WHEEL LH 1 Rp268.500
8 01550-0612A-000 BOLT 2 Rp3.500
9 01551-0812A-000 BOLT 1 Rp18.500
10 02162-0616A-000 BOLT 2 Rp3.000
11 08316-1008A-000 NUT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
