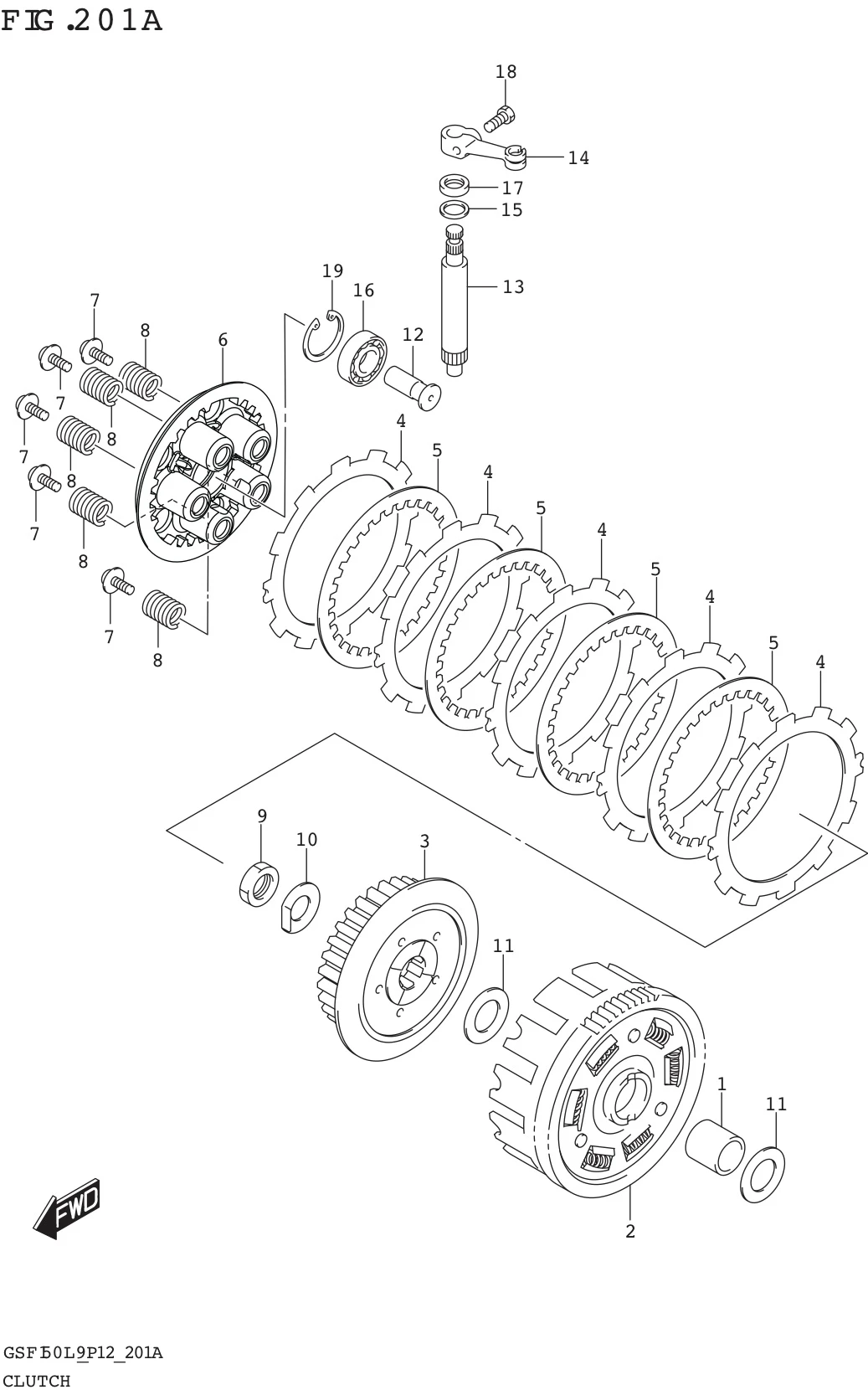

FIG. 201A CLUTCH

FIG. 201A CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
1 21251-12K02-000
SUB: 21251-12K01-000		 SPACER,PRIMARY DRIVEN GEAR 1 Rp28.500
2-1 21200-12K10-0A0 GEAR ASSY,PRIMARY DRIVEN (NT:69) 1 Rp548.000
2-2 21200-12K10-0B0 GEAR ASSY,PRIMARY DRIVEN 1 Rp151.000
2-3 21200-12K00-0A0 GEAR ASSY,PRIMARY DRIVEN 1 Rp439.500
2-4 21200-12K00-0B0 GEAR ASSY,PRIMARY DRIVEN 1 Rp151.000
3 21411-05241-000 HUB,CLUTCH SLEEVE 1 Rp60.000
4 21441-25G10-000 PLATE,CLUTCH DRIVE (T:3.0) 5 Rp34.000
5 21451-28040-000 PLATE,CLUTCH DRIVEN (T:1.6) 4 Rp30.500
6 21462-23K00-000 DISC,CLUTCH PRESSURE 1 Rp89.000
7 09116-05147-000
SUB: 09116B05147N000		 BOLT (5X16) 5 Rp8.000
8 09440-15042-000
SUB: 09440B15042N000		 SPRING 5 Rp15.000
9 21414-12K00-000 NUT 1 Rp11.000
10 09169-16009-000
SUB: 09169B16009N000		 WASHER 1 Rp5.500
11 08211-20352-000
SUB: 08211B20352N000		 WASHER 2 Rp10.500
12 23165-28G60-000 RACK,CLUTCH RELEASE 1 Rp25.500
13 23261-12K01-000
SUB: 23261-12K00-000		 PINION,RELEASE 1 Rp62.500
14 23271-47E20-000 ARM,CLUTCH RELEASE 1 Rp47.000
15 09160-12086-000
SUB: 09160B12086N000		 WASHER (12.5X17X1) 1 Rp7.000
16 08110-62000-000 BEARING 1 Rp17.000
17 09285-10008-000
SUB: 09285B10008N000		 SEAL,CL RELEASE PINION OIL 1 Rp9.500
18 01500-0616A-000
SUB: 01500B0616AN000		 BOLT 1 Rp6.500
19 08331-41309-000
SUB: 08331B41309N000		 CIRCLIP 1 Rp8.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
