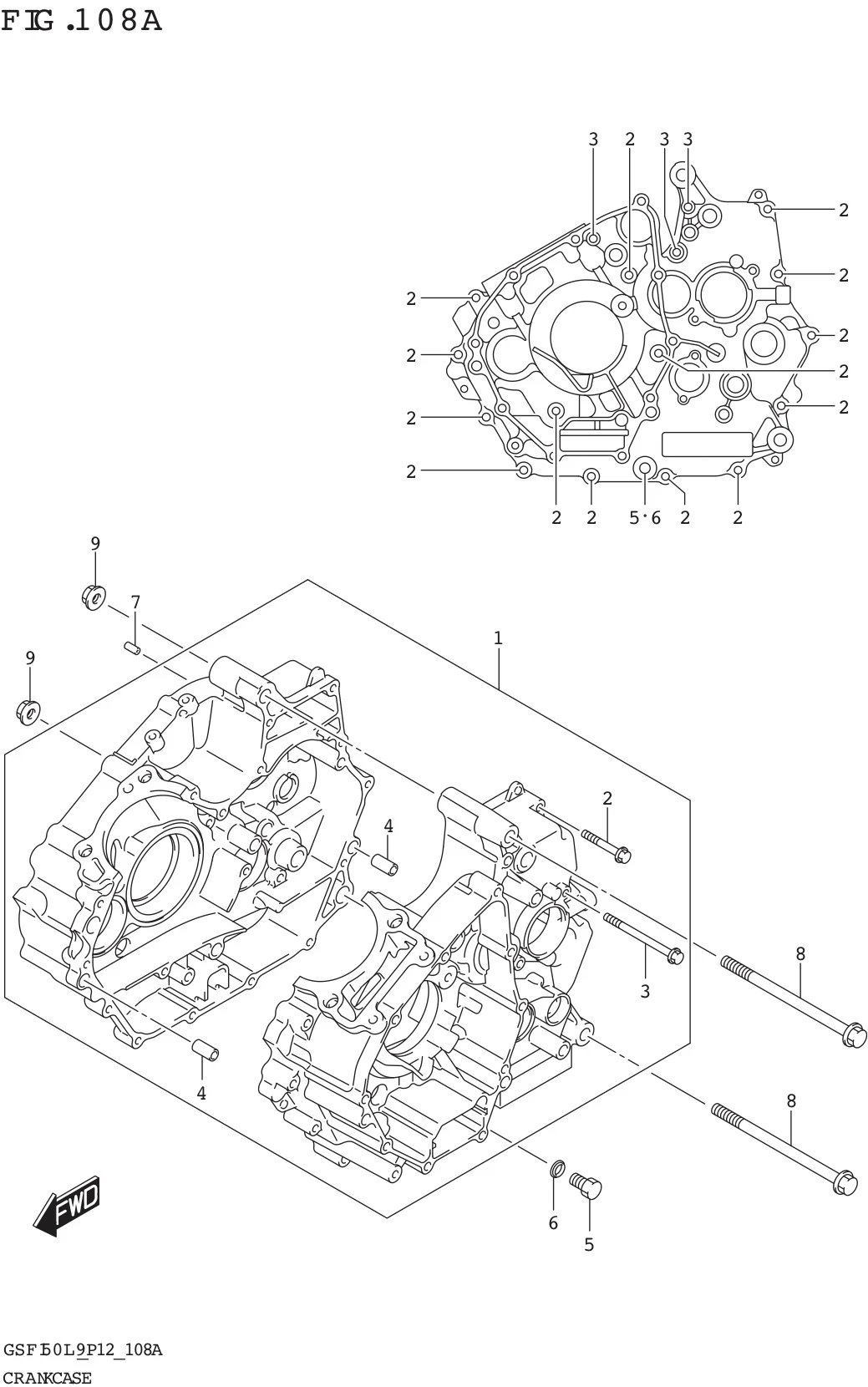

FIG. 108A CRANKCASE

FIG. 108A CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
1 11300-12K00-000 CRANKCASE ASSY 1 Rp1.941.000
2 01547-0640B-000
SUB: 01547B0640BN000		 .BOLT 14 Rp7.000
3 01547-0675A-000
SUB: 01547B0675AN000		 .BOLT 3 Rp7.500
4 09206-10014-000 .PIN (6.4X10X20) 2 Rp3.000
5 01500-1016A-000
SUB: 01500B1016AN000		 BOLT 1 Rp7.500
6 09168-10L02-000
SUB: 09168B10L02N000		 GASKET,OIL DRAIN (NA) 1 Rp2.500
7 11313-25G00-000 JET,T/M OIL GALLERY 1 Rp10.500
8 09103-10723-000 BOLT,ENG MTG (L140) 2 Rp24.000
9 08319-3110A-000 NUT 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
