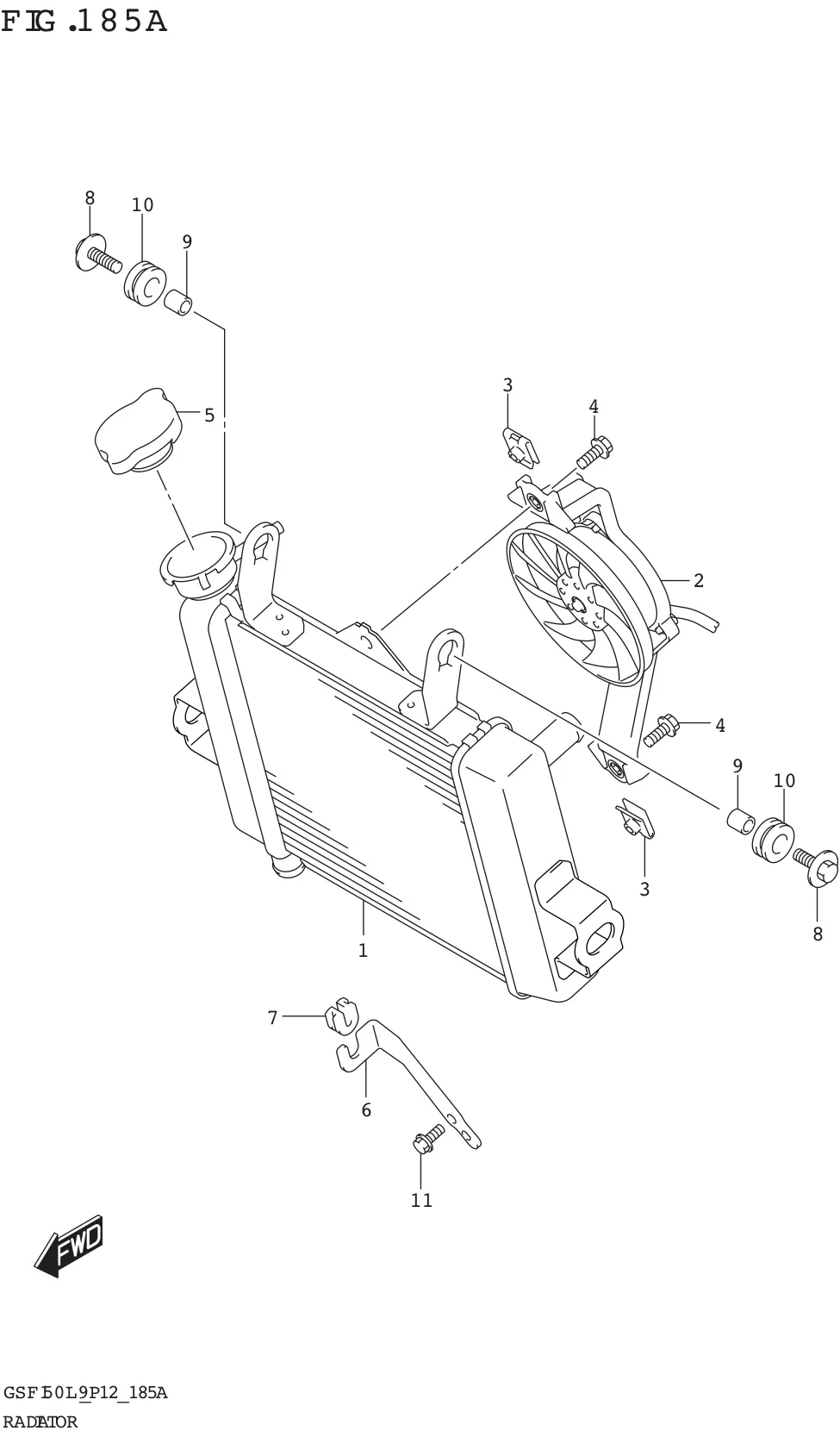

FIG. 185A RADIATOR

FIG. 185A RADIATOR
No No. Part Description Qty Price Per Pcs Remarks
1 17710-23K00-000 RADIATOR ASSY, WATER 1 Rp369.500
2 17800-12K01-000 FAN ASSY 1 Rp322.000
3 17802-12K00-000 NUT 2 Rp10.500
4 01550-0616A-000 BOLT 2 Rp3.500
5 17730-14G00-000
SUB: 17730B14G00N000		 CAP,RADIATOR (1.1) 1 Rp58.500
6 17751-12K00-000 BRACKET,RADIATOR LOWER 1 Rp5.500
7 17781-12J00-000 CUSHION 1 Rp11.000
8 09116-06111-000
SUB: 09116B06111N000		 BOLT (6X20) 2 Rp7.000
9 09180-06310-000
SUB: 09180B06310N000		 SPACER (6.5X10X10) 2 Rp5.000
10 09320-10501-000 CUSHION 2 Rp40.500
11 01550-0610B-000
SUB: 01550B0610BN000		 BOLT 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
