Suzuki Bandit

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 102A CYLINDER HEAD COVERFIG. 103B CYLINDER HEADFIG. 107A CYLINDERFIG. 108A CRANKCASEFIG. 112A CRANKCASEFIG. 120A CRANKSHAFTFIG. 122A STARTER CLUTCHFIG. 124A CRANK BALANCERFIG. 126A CAMSHAFT/VALVEFIG. 127A CAM CHAINFIG. 140A THROTTLE BODYFIG. 155A AIR CLEANERFIG. 163A MUFFLERFIG. 170A OIL PUMPFIG. 172A FUEL PUMPFIG. 180A WATER PUMPFIG. 185A RADIATORFIG. 187A RADIATOR HOSEFIG. 201A CLUTCHFIG. 206A TRANSMISSIONFIG. 212A GEAR SHIFTINGFIG. 240A KICK STARTER

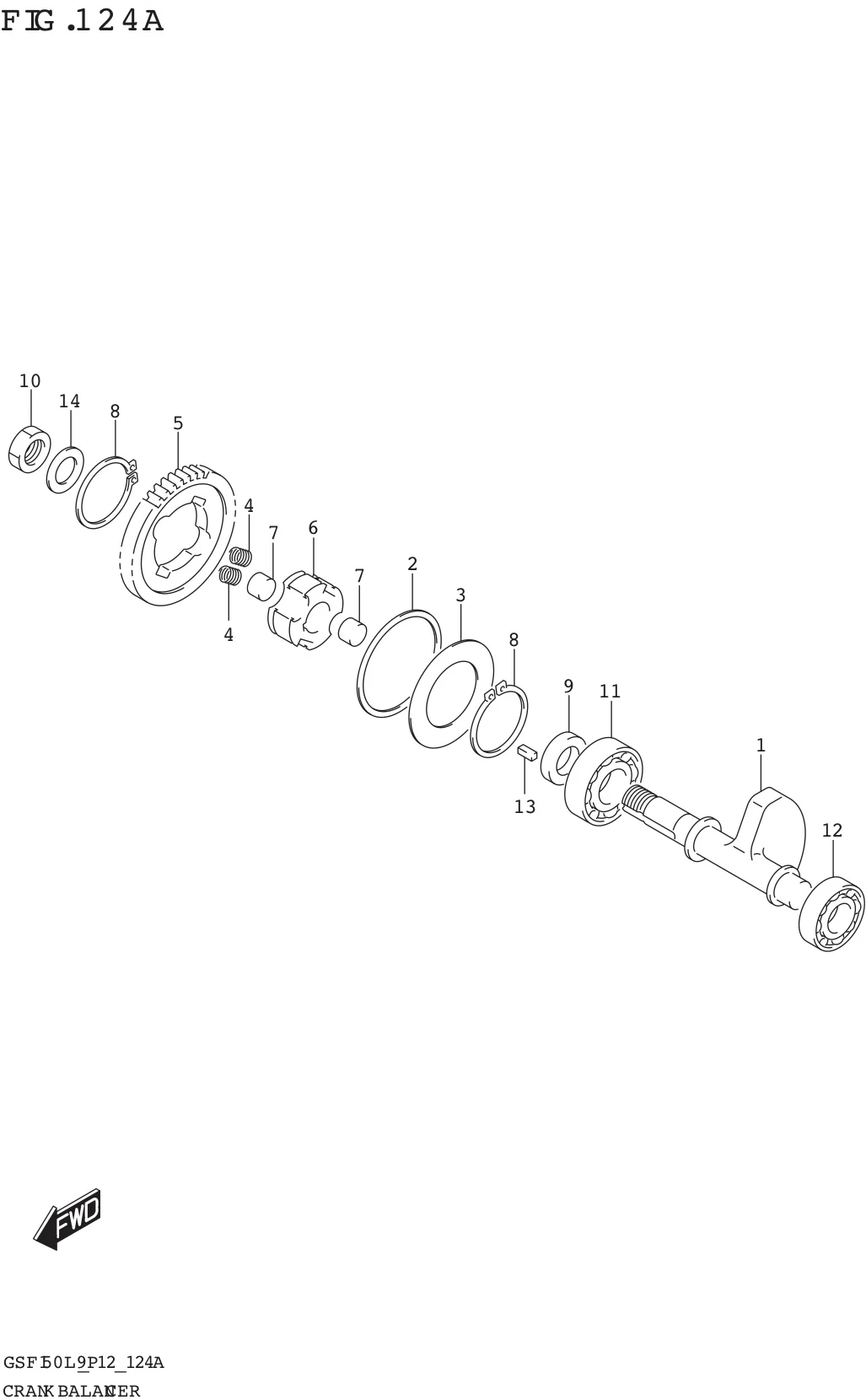

FIG. 124A CRANK BALANCER

FIG. 124A CRANK BALANCER
No No. Part Description Qty Price Per Pcs Remarks
1 12651-12K02-000
SUB: 12651-12K01-000		 BALANCER,CRANK 1 Rp98.000
2 12662-12K00-000 WASHER,CRK BAL DRIVEN GR NO.1 1 Rp9.500
3 12662-34J10-000 WASHER,CRK BAL DRIVEN GR NO.2 1 Rp13.000
4 12663-47E50-000
SUB: 12663B47E50N000		 SPRING,CRANK BALANCER GEAR 2 Rp3.000
5 12666-12K10-000
SUB: 12666-12K00-000		 GEAR,CRANK BALANCER DRIVEN 1 Rp124.000
6 12669-12K10-000
SUB: 12669-12K00-000		 RACE,CRK BAL DRIVEN GEAR INNER 1 Rp41.500
7 12686-25G31-000
SUB: 12686-25G20-000		 DAMPER,CRANK BALANCER GEAR 2 Rp18.500
8 08331-31359-000
SUB: 08331-3135A-000		 CIRCLIP 2 Rp24.000
9 12668-34J00-000 SPACER,CRANK BAL DRN GEAR 1 Rp21.000
10 09140-14022-000
SUB: 09140B14022N000		 NUT 1 Rp9.000
11 09262-15054-000 BEARING,CRANK BALANCER SHAFT (RH) 1 Rp42.500
12 09262-15055-000 BEARING,CRANK BALANCER SHAFT (LH) 1 Rp33.500
13 09421-04011-000 KEY,CRK BAL DRIVEN GR 1 Rp7.500
14 08211-14242-000 WASHER 1 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
