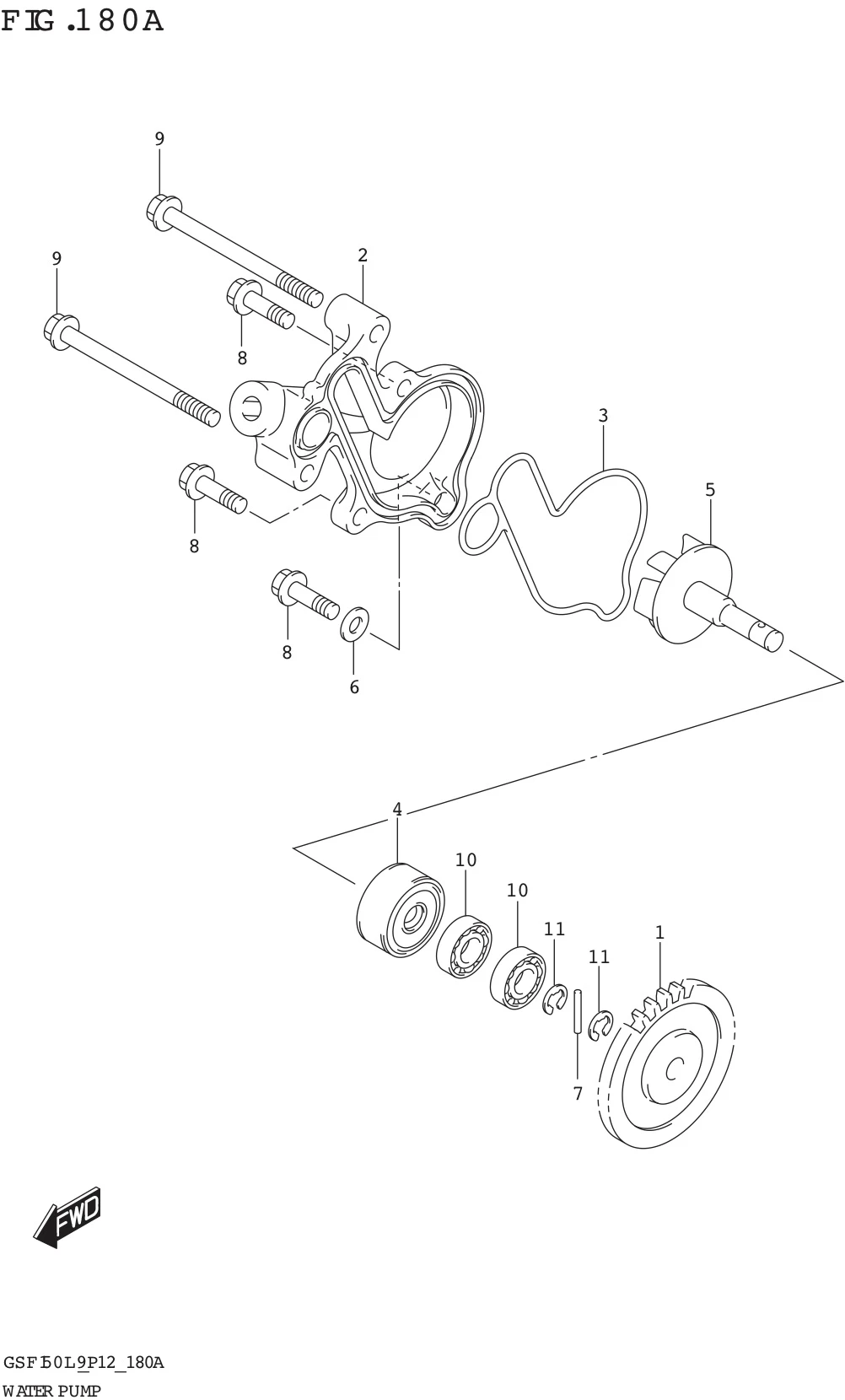

FIG. 180A WATER PUMP

FIG. 180A WATER PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16331-12K00-000 GEAR,OIL PUMP DRIVEN (NT:30) 1 Rp15.500
2 17410-12K20-000 CASE,WATER PUMP 1 Rp142.500
3 17431-12K10-000 O RING,WATER PUMP CASE 1 Rp17.000
4 17461-12K00-000 SEAL,WATER PUMP SHAFT OIL 1 Rp81.000
5 17510-12K01-000 SHAFT,WATER PUMP 1 Rp44.500
6 09168-06018-000
SUB: 09168B06018N000		 GASKET (6.2X13X1.2) 1 Rp8.500
7 09261-02001-000 PIN (2.5X19.8) 1 Rp9.000
8 01547-0620B-000 BOLT 3 Rp6.500
9 01547-0675A-000
SUB: 01547B0675AN000		 BOLT 2 Rp7.500
10 08113-06080-000 BEARING 2 Rp23.500
11 08332-1106A-000
SUB: 08332B1106AN000		 E RING 2 Rp8.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
