Suzuki Bandit

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 102A CYLINDER HEAD COVERFIG. 103B CYLINDER HEADFIG. 107A CYLINDERFIG. 108A CRANKCASEFIG. 112A CRANKCASEFIG. 120A CRANKSHAFTFIG. 122A STARTER CLUTCHFIG. 124A CRANK BALANCERFIG. 126A CAMSHAFT/VALVEFIG. 127A CAM CHAINFIG. 140A THROTTLE BODYFIG. 155A AIR CLEANERFIG. 163A MUFFLERFIG. 170A OIL PUMPFIG. 172A FUEL PUMPFIG. 180A WATER PUMPFIG. 185A RADIATORFIG. 187A RADIATOR HOSEFIG. 201A CLUTCHFIG. 206A TRANSMISSIONFIG. 212A GEAR SHIFTINGFIG. 240A KICK STARTER

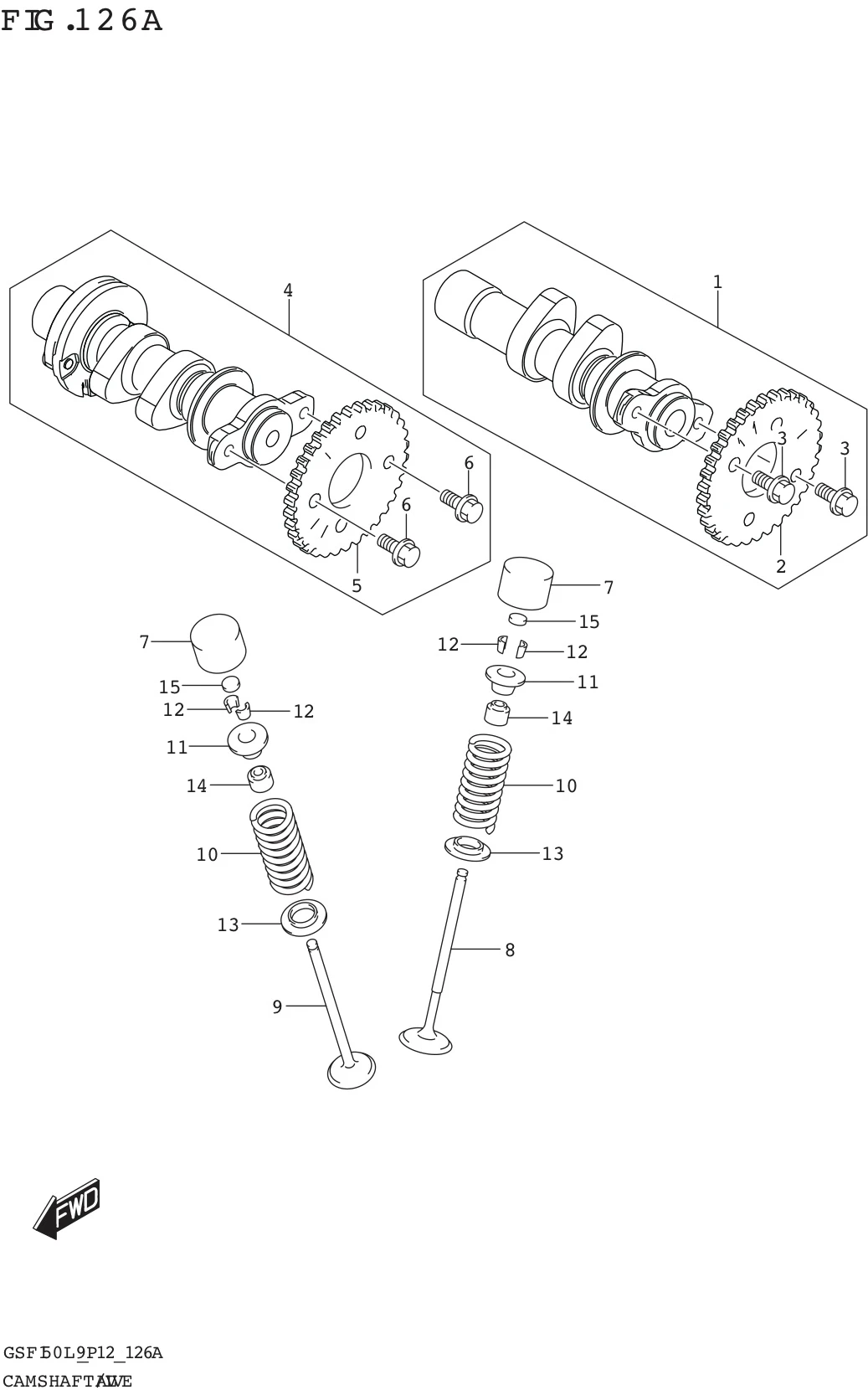

FIG. 126A CAMSHAFT/VALVE

FIG. 126A CAMSHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710-12K11-000 CAMSHAFT,INTAKE 1 Rp468.500
2 12741-12K00-000 .SPROCKET,CAMSHAFT (NT:34) 1 Rp32.500
3 09103-05025-000 .BOLT,SPROCKET 2 Rp4.500
4-1 12702-12K10-000 CAMSHAFT,EXHAUST 1 Rp481.500
4-2 12702-12K30-000 CAMSHAFT,EXHAUST 1 Rp541.500
5 12741-12K00-000 .SPROCKET,CAMSHAFT (NT:34) 1 Rp32.500
6 09103-05025-000 .BOLT,SPROCKET 2 Rp4.500
7 12891-25G10-000
SUB: 12891B25G10N000		 TAPPET 4 Rp38.500
8 12911-12K00-000 VALVE,INTAKE 2 Rp37.500
9 12912-12K00-000 VALVE,EXHAUST 2 Rp39.500
10 12921-12K00-000 SPRING,VALVE 4 Rp27.500
11 12931-25G20-000 RETAINER,VALVE SPRING 4 Rp9.500
12-2 12932-32C10-000 COTTER,VALVE 8 Rp8.500
12-1 12932-32C00-000 COTTER,VALVE 8 Rp12.500
13 12933-12K00-000 SEAT,VALVE SPRING 4 Rp5.500
14 09289-04002-000
SUB: 09289B04002N000		 OIL SEAL (4.5X10X8) 4 Rp10.500
15-4 12892-05C00-135 SHIM,TAPPET (T:1.35) 4 Rp57.500
15-21 12892-05C00-220 SHIM,TAPPET (T:2.20) 4 Rp53.500
15-20 12892-05C00-215 SHIM,TAPPET (T:2.15) 4 Rp56.000
15-19 12892-05C00-210 SHIM,TAPPET (T:2.10) 4 Rp55.000
15-18 12892-05C00-205 SHIM,TAPPET (T:2.05) 4 Rp56.000
15-17 12892-05C00-200 SHIM,TAPPET (T:2.00) 4 Rp55.000
15-16 12892-05C00-195 SHIM,TAPPET (T:1.95) 4 Rp56.000
15-15 12892-05C00-190 SHIM,TAPPET (T:1.90) 4 Rp56.000
15-14 12892-05C00-185 SHIM,TAPPET (T:1.85) 4 Rp56.000
15-13 12892-05C00-180 SHIM,TAPPET (T:1.80) 4 Rp54.000
15-12 12892-05C00-175 SHIM,TAPPET (T:1.75) 4 Rp53.000
15-11 12892-05C00-170 SHIM,TAPPET (T:1.70) 4 Rp56.000
15-10 12892-05C00-165 SHIM,TAPPET (T:1.65) 4 Rp54.500
15-9 12892-05C00-160 SHIM,TAPPET (T:1.60) 4 Rp53.500
15-8 12892-05C00-155 SHIM,TAPPET (T:1.55) 4 Rp56.000
15-7 12892-05C00-150 SHIM,TAPPET (T:1.50) 4 Rp54.500
15-6 12892-05C00-145 SHIM,TAPPET (T:1.45) 4 Rp57.500
15-5 12892-05C00-140 SHIM,TAPPET (T:1.40) 4 Rp56.500
15-3 12892-05C00-130 SHIM,TAPPET (T:1.30) 4 Rp57.500
15-2 12892-05C00-125 SHIM,TAPPET (T:1.25) 4 Rp57.500
15-1 12892-05C00-120 SHIM,TAPPET (T:1.20) 4 Rp57.500
16 12800-05830-000 SHIM SET,TAPPET (5PCS. EACH) 1 Rp7.383.500
17 DISCONTINUE
SUB: 99000-69491-000		 CASE,TAPPET SHIM 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
