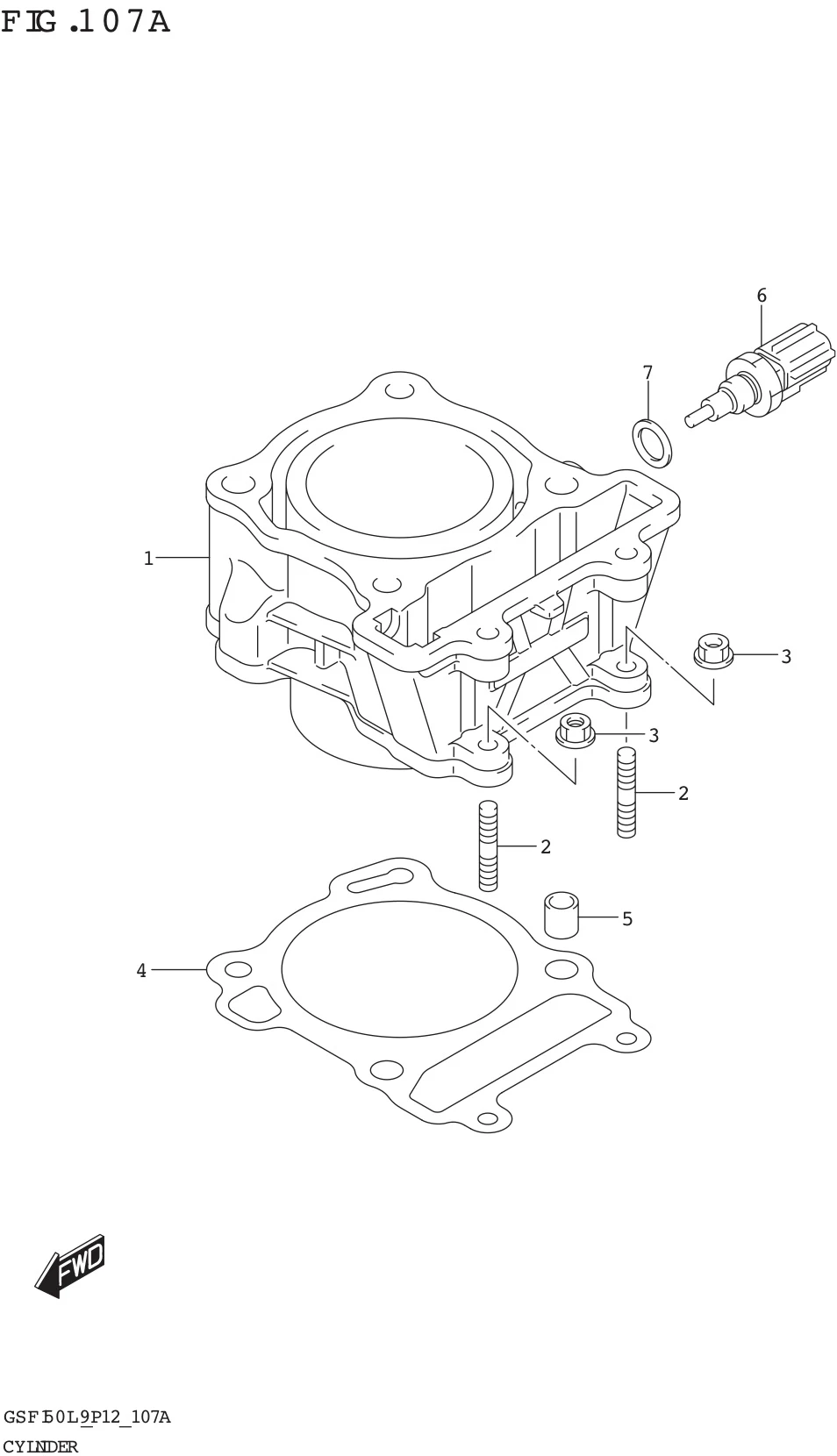

FIG. 107A CYLINDER

FIG. 107A CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 11211-12K01-0F0 CYLINDER 1 Rp1.712.500
1 11300-12K00-000 CRANKCASE ASSY 1 Rp1.941.000
2 01421-0620A-000
SUB: 01421B0620AN000		 BOLT,STUD 2 Rp3.500
2 01547-0640B-000
SUB: 01547B0640BN000		 .BOLT 14 Rp7.000
3 08316-1006A-000 NUT 2 Rp2.000
3 01547-0675A-000
SUB: 01547B0675AN000		 .BOLT 3 Rp7.500
4 11241-12K00-000 GASKET,CYLINDER 1 Rp15.500
4 09206-10014-000 .PIN (6.4X10X20) 2 Rp3.000
5 04211-11129-000
SUB: 04211B11129N000		 PIN 2 Rp2.000
5 01500-1016A-000
SUB: 01500B1016AN000		 BOLT 1 Rp7.500
6 13650-49X00-000 SENSOR,TEMP 1 Rp133.500
6 09168-10L02-000
SUB: 09168B10L02N000		 GASKET,OIL DRAIN (NA) 1 Rp2.500
7 09168-12017-000 GASKET (12X17X1) 1 Rp13.000
7 11313-25G00-000 JET,T/M OIL GALLERY 1 Rp10.500
8 09103-10723-000 BOLT,ENG MTG (L140) 2 Rp24.000
9 08319-3110A-000 NUT 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
