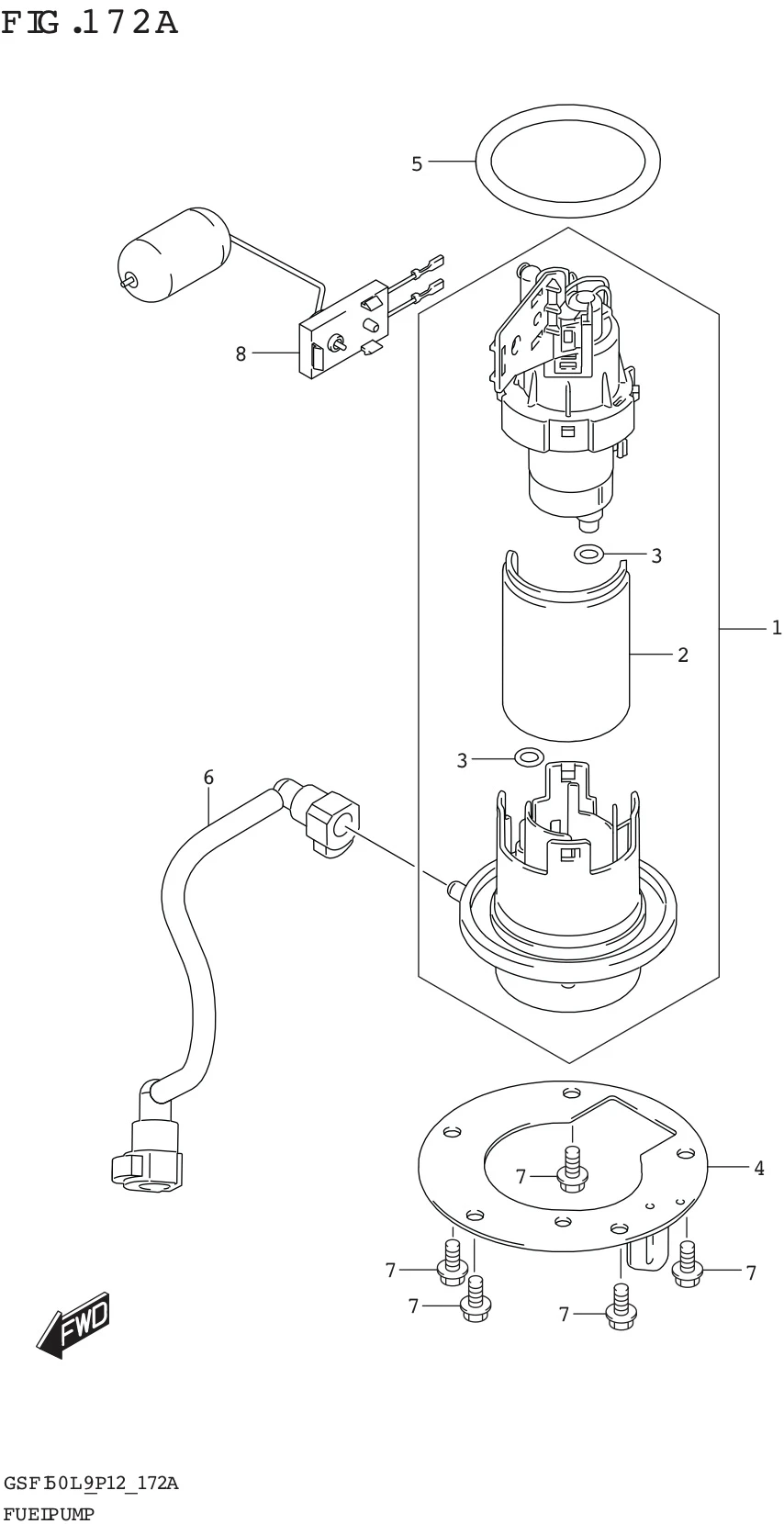

FIG. 172A FUEL PUMP

FIG. 172A FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100-23K00-000 PUMP ASSY, FUEL 1 Rp439.500
2 15420-34JB0-000 .FILTER 1 Rp58.500
3 15424-09JB0-000 .O RING 2 Rp10.000
4 15120-23K00-000 PLATE, FUEL PUMP 1 Rp16.500
5 15201-23K20-000 O RING,FUEL PUMP 1 Rp36.500
6 15810-23K00-000 HOSE, FUEL 1 Rp84.500
7 01547-0610A-000 BOLT 5 Rp3.000
8 34810-23K00-000 GAUGE ASSY, FUEL LEVEL SENDER 1 Rp69.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
