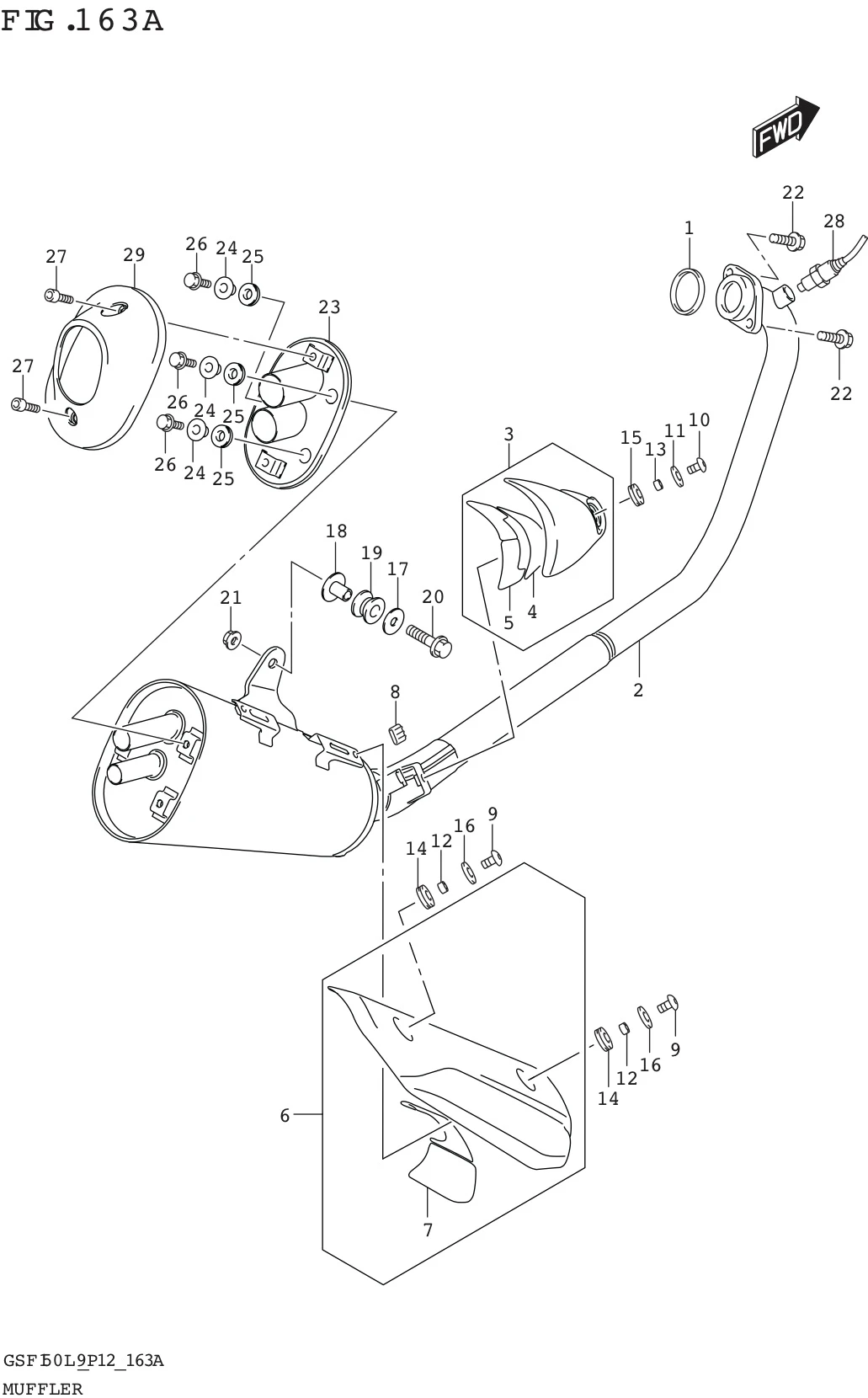

FIG. 163A MUFFLER

FIG. 163A MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14181-47E20-000
SUB: 14181B47E20N000		 GASKET,EXH PIPE 1 Rp9.000
2 14310-23K40-000 BODY,MUFFLER 1 Rp1.893.000
3 14780-23K00-000 COVER, MUFFLER 1 Rp121.000
4 14783-23K00-000 .SHIELD, MUF COVER FR 1 Rp5.500
5 14784-23K00-000 .SHIELD, MUF COVER RR 1 Rp5.500
6 14780-23K20-000 COVER,MUFFLER 1 Rp133.000
7 14783-23K20-000 .SHIELD,MUF COVER 1 Rp5.500
8 14795-10FA0-000
SUB: 14795B10FA0N000		 GROMMET 1 Rp5.500
9 09139-06030-000 SCREW (6X16) 2 Rp26.000
10 09139-06027-000 SCREW (6X12) 1 Rp17.500
11 09160-06028-000 WASHER (6.5X18X1.0) 1 Rp3.500
12 09180-06256-000 SPACER (6.5X9X5.7) 2 Rp3.000
13 09180-06343-000
SUB: 09180B06343N000		 SPACER 1 Rp12.500
14 09320-08L04-000
SUB: 09320B08L04N000		 CUSHION 2 Rp4.000
15 09320-08082-000
SUB: 09320B08082N000		 CUSHION 1 Rp10.500
16 09160-06028-000 WASHER (6.5X18X1.0) 2 Rp3.500
17 09160-08134-000
SUB: 09160B08134N000		 WASHER (8.5X26X1.6) 1 Rp7.500
18 09180-08151-000
SUB: 09180B08151N000		 SPACER (8.6X12X17.5) 1 Rp22.000
19 09320-12032-000
SUB: 09320B12032N000		 CUSHION 1 Rp5.000
20 01550-0835A-000 BOLT 1 Rp3.500
21 08319-3108A-000
SUB: 08319B3108AN000		 NUT 1 Rp4.000
22 01550-0825A-000 BOLT 2 Rp3.500
23 14760-23K00-000 STAY, MUFFLER REAR COVER 1 Rp140.000
24 09169-06091-000
SUB: 09169B06091N000		 WASHER 3 Rp4.500
25 09320-08082-000
SUB: 09320B08082N000		 CUSHION 3 Rp10.500
26 01550-0612B-000 BOLT 3 Rp16.500
27 07130-0616A-000
SUB: 07130B0616AN000		 BOLT 2 Rp3.500
28 18213-12K01-000
SUB: 18213-12K00-000		 SENSOR,OXYGEN 1 Rp326.000
29 14790-23K01-000 COVER,MUF RR 1 Rp79.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
