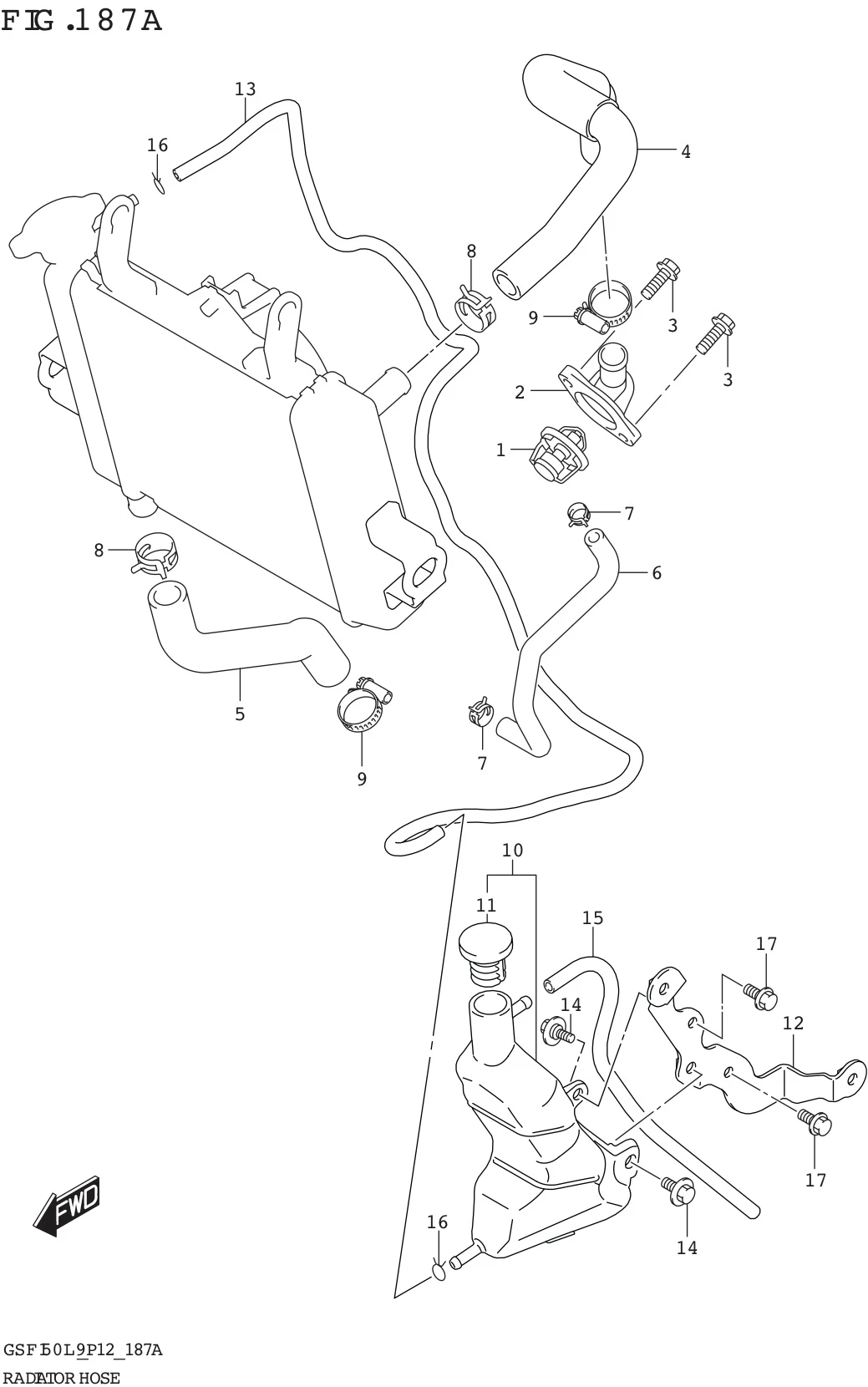

FIG. 187A RADIATOR HOSE

FIG. 187A RADIATOR HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 17670-12K11-000
SUB: 17670-12K10-000		 THERMOSTAT,WATER 1 Rp89.500
2 17661-12K02-000
SUB: 17661-12K01-000		 COVER,THERMOSTAT 1 Rp23.000
3 01547-0620B-000 BOLT 2 Rp6.500
4 17851-23K00-000 HOSE, RADIATOR INLET 1 Rp46.000
5 17852-12K10-000 HOSE,RADIATOR OUTLET 1 Rp15.000
6 17856-12K00-000 HOSE,WATER BYPASS 1 Rp11.500
7 09401-10417-000 CLIP,WATER HOSE BYPASS 2 Rp5.000
8 DISCONTINUE
SUB: 09401-20414-000		 CLIP,WATER HOSE 2 -
9 DISCONTINUE
SUB: 09402-27002-000		 CLAMP 2 -
10 17910-23K00-000 TANK ASSY, RESERVOIR 1 Rp51.000
11 17931-31J10-000 .CAP, WATER RESERVOIR TANK 1 Rp32.000
12 17920-23K00-000 BRACKET, RESERVOIR TANK 1 Rp19.500
13 17981-23K00-000
SUB: 17981-23K10-000		 HOSE,RESERVOIR TANK INLET 1 Rp14.500
14 DISCONTINUE
SUB: 09111-06085-000		 BOLT (6X12) 2 -
15 09352-50007-280
SUB: 09352-50001-280		 HOSE 1 Rp7.000
16 09401-08402-000
SUB: 09401B08402N000		 CLIP (ID:8) 2 Rp2.000
17 01547-0610A-000 BOLT 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
