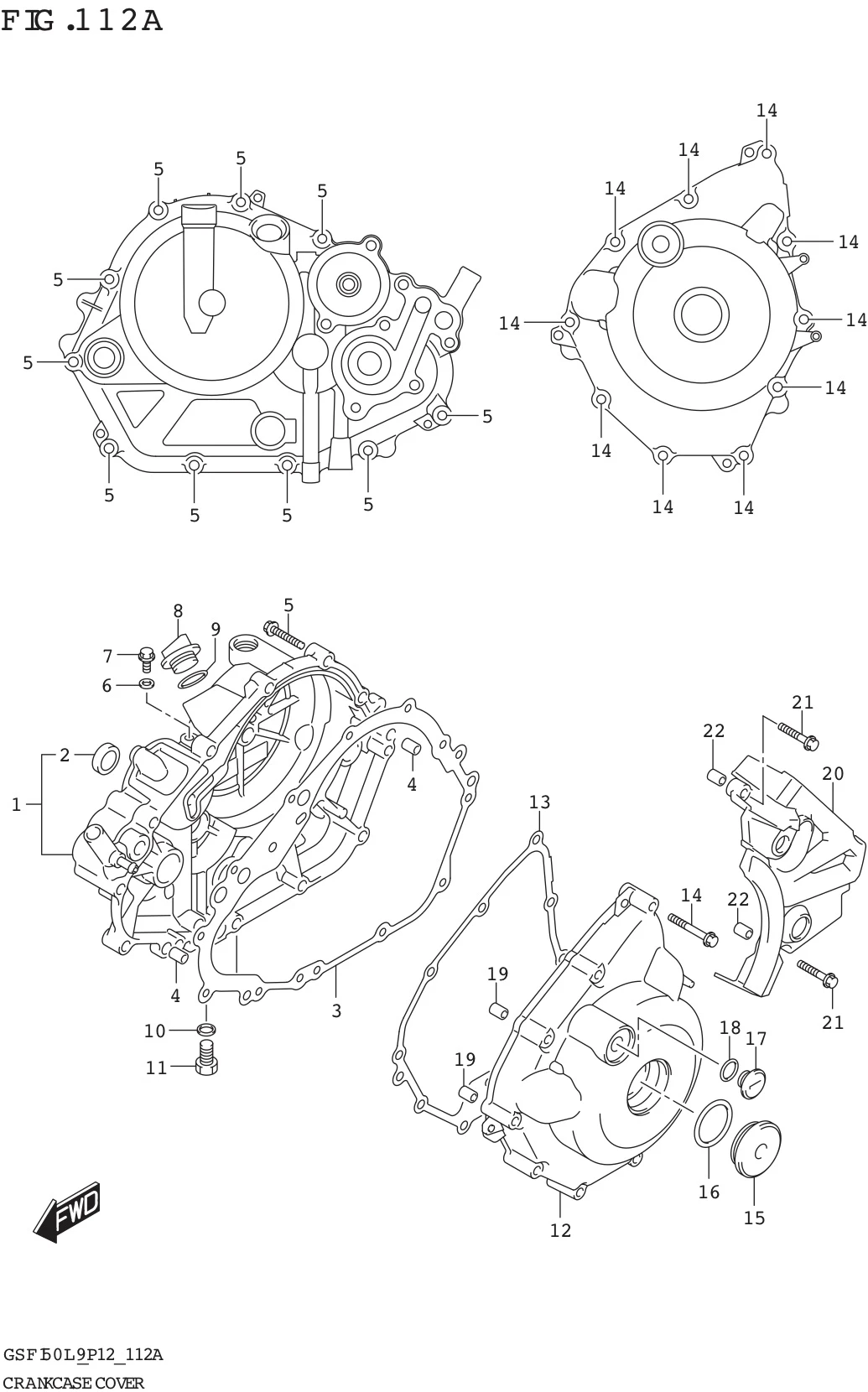

FIG. 112A CRANKCASE

FIG. 112A CRANKCASE
No No. Part Description Qty Price Per Pcs Remarks
1 11340-12K20-000 COVER,CLUTCH 1 Rp579.000
2 11971-45010-000
SUB: 11971B45010N000		 .LENS,OIL LEVEL CHECK 1 Rp33.500
3 11482-12K00-000 GASKET,CLUTCH COVER 1 Rp23.000
4 09206-08008-000 PIN (6.3X8X12) 2 Rp4.000
5 01547-0630A-000 BOLT 10 Rp6.500
6 09168-06018-000
SUB: 09168B06018N000		 GASKET (6.2X13X1.2) 1 Rp8.500
7 01547-0610A-000 BOLT 1 Rp3.000
8 11342-25G00-000
SUB: 11342B25G00N000		 PLUG,ENGINE OIL FILLER 1 Rp19.000
9 09280-17003-000 O RING (D:3.1,ID:16.8) 1 Rp2.000
10 09168-10L02-000
SUB: 09168B10L02N000		 GASKET,OIL DRAIN (NA) 1 Rp2.500
11 01500-1016A-000
SUB: 01500B1016AN000		 BOLT 1 Rp7.500
12 11351-12K20-000 COVER,MAGNETO 1 Rp269.500
13 11483-12K00-000 GASKET,MAGNETO COVER 1 Rp15.500
14 01547-0640B-000
SUB: 01547B0640BN000		 BOLT 10 Rp7.000
15 09259-36031-000 PLUG,CRANKSHAFT HOLE 1 Rp19.500
16 09280-33004-000 O RING (D:3.1,ID:32.7) 1 Rp12.500
17 11352-22J00-000 PLUG,TOP 1 Rp7.000
18 09280-14003-000
SUB: 09280-14003L000		 O RING (D:2.4,ID:13.8) 1 Rp3.000
19 09206-08008-000 PIN (6.3X8X12) 2 Rp4.000
20 11360-12K00-000 COVER,ENG SPROCKET 1 Rp44.000
21 01547-0630A-000 BOLT 2 Rp6.500
22 09206-08008-000 PIN (6.3X8X12) 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
