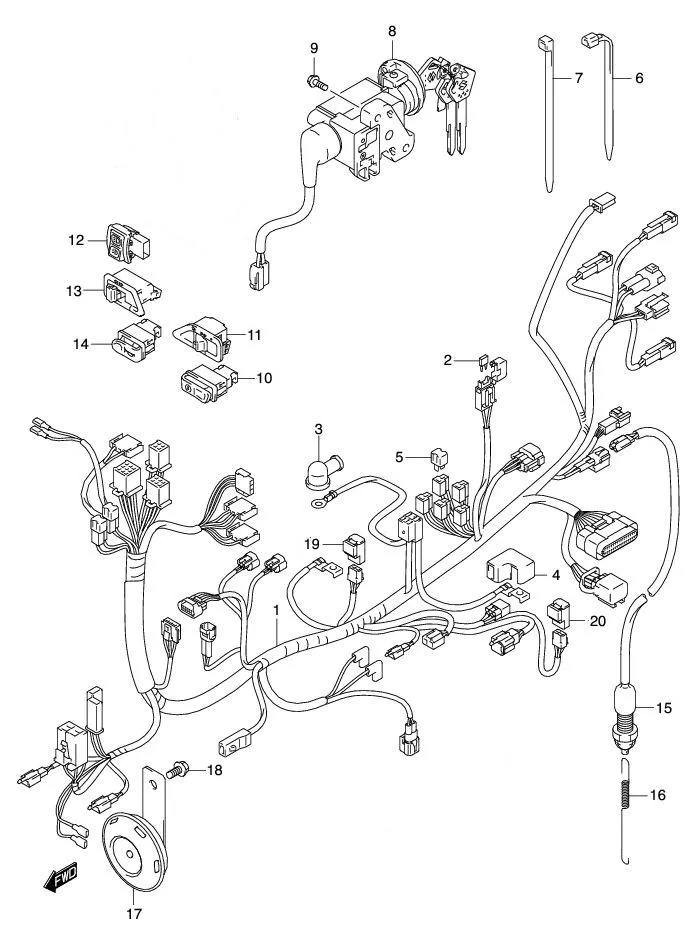

FIG.27A WIRING HARNESS (FL125RCDFK8)

FIG.27A WIRING HARNESS (FL125RCDFK8)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 36610B16H70N000		 HARNESS, WIRING 1 -
2 09481-15501-000
SUB: 09481M15501-000		 •FUSE (15A) 2 Rp12.000
3 31861-48B10-000
SUB: 31861-48B10L000		 •CAP, STARTER MOTOR 1 Rp5.000
4 33624-07H00-000
SUB: 33624B07H00N000		 •CAP BATTERY 1 Rp11.500
5 32800-16A00-000 •DIODE 5 Rp131.000
6-1 36990-25G00-000
SUB: 09407-11401-000		 CLAMP (L:95) 1 Rp13.000
6-2 36990-25G00-000
SUB: 09407-14403L000		 CLAMP (L:125) 1 Rp13.000
6-3 09407-18402-000
SUB: 09407B18402N000		 CLAMP (L:165) 5 Rp8.000
6-4 DISCONTINUE
SUB: 09407-25401L000		 CLAMP (L:235) 2 -
7 09407-30401-000 CLAMP (L:300) 1 Rp25.000
8 37100-13H20-000
SUB: 37100B13H20N000		 LOCK ASSY, STEERING SET 1 Rp226.500
9 DISCONTINUE
SUB: 09139B06048N000		 SCREW (6X20) 2 -
10 37310-09G30-000
SUB: 37310B09G30N000		 SWITCH ASSY, STARTER 1 Rp27.500
11 37340-16H10-000
SUB: 37340B16H10N000		 SWITCH ASSY, LIGHTING 1 Rp33.500
12 37420-09G21-000
SUB: 37420B09G21N000		 SWITCH ASSY, DIMMER 1 Rp20.500
13 37510-10E30-000
SUB: 37510B10E10N000		 SWITCH ASSY, TURNSIGNAL 1 Rp24.000
14 37520-09G51-000
SUB: 37520B09G30N000		 SWITCH ASSY, HORN 1 Rp20.000
15 37740-09G30-000
SUB: 37740B09G10N000		 SWITCH ASSY, STOP LAMP 1 Rp20.000
16 09443-06083-000
SUB: 09443-06083L000		 SPRING 1 Rp4.000
17 38500-09G01-000
SUB: 38500B09G02N000		 HORN ASSY 1 Rp52.500
18 01550B0612BN000 BOLT 1 Rp2.500
19 38740-26E01-000
SUB: 38740-26E00-000		 RELAY ASSY, MAIN 1 Rp190.000
20 38740-26E01-000
SUB: 38740-26E00-000		 RELAY ASSY, BRAKE START 1 Rp190.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
