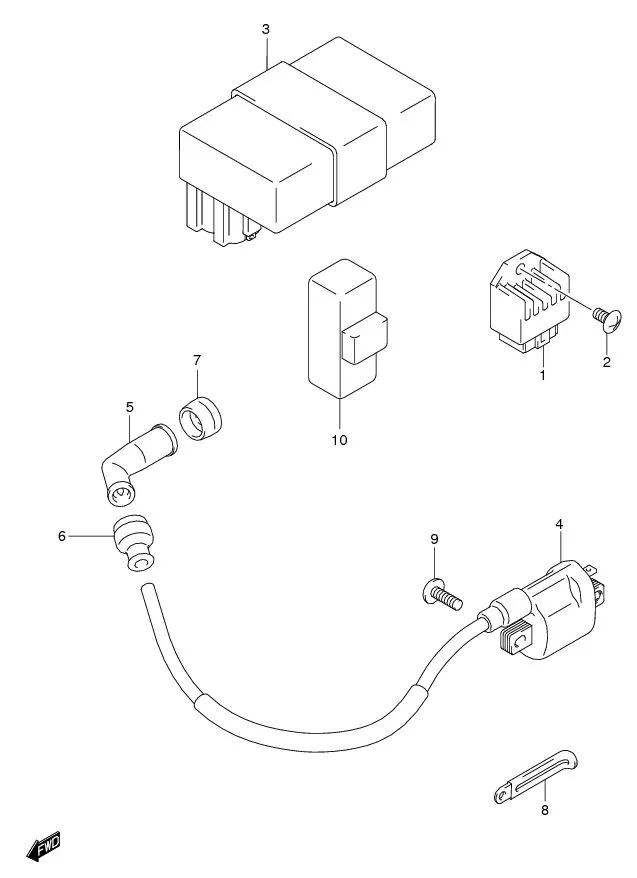

FIG.22 ELECTRICAL (FL125SDK7/SDK8/RDK8/RCDMK/7/RCDMK8)

FIG.22 ELECTRICAL (FL125SDK7/SDK8/RDK8/RCDMK/7/RCDMK8)
No No. Part Description Qty Price Per Pcs Remarks
1 32800-41H01-000
SUB: 32800B47E00N000		 RECTIFIER ASSY 1 Rp117.500
2 02112-0612A-000
SUB: 02112B0612BN000		 SCREW 1 Rp3.500
3-1 32900-16H10-000
SUB: 32900B16H10N000		 CDI UNIT 1 Rp489.500 FL125SDK7/SDK8/RDK8
3-2 DISCONTINUE
SUB: 32900B16H20N000		 CDI UNIT 1 - FL125RCDMK7/RCDMK8
4 33410-16H10-000
SUB: 33410B16H10N000		 COIL ASSY, IGNITION 1 Rp74.000
5 33500-41H00-000
SUB: 33510B20E00N000		 CAP, SPARK PLUG 1 Rp47.000
6 DISCONTINUE
SUB: 33542-38B00L000		 SEAL, HIGH TENSION CORD 1 -
7 DISCONTINUE
SUB: 33541B13H00N000		 SEAL, SPARK PLUG 1 -
8 09404-06429-000
SUB: 09404B06429N000		 CLAMP, HIGH TENSION (L:45) 1 Rp15.000
9 02112-0616B-000
SUB: 02112B0616BN000		 SCREW, IGNITION COIL 2 Rp6.500
10 31800-16H00-000
SUB: 31800B16H00N000		 RELAY ASSY, STARTING MOTOR REFER TO FIG.22A(E- 6) FOR FL125RCDFK8 1 Rp64.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
