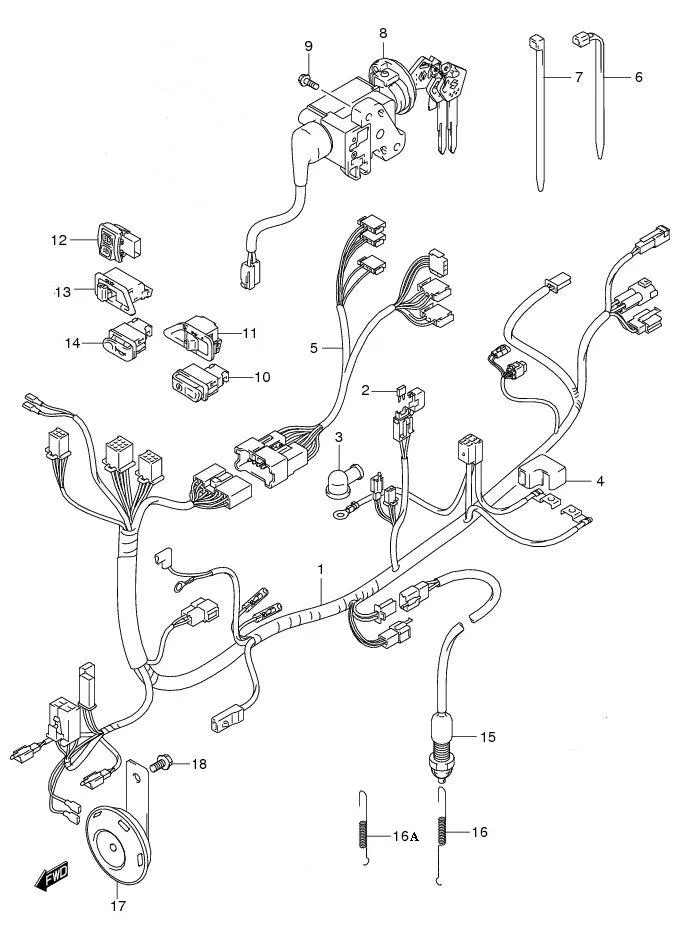

FIG.27 WIRING HARNESS

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	36610-16H40-000 SUB: 36610B16H40N000	HARNESS, WIRING	1	Rp313.500	FL125RCDMK7/RCDMK8
1-1	36610-16H30-000 SUB: 36610B16H30N000	HARNESS, WIRING	1	Rp324.500	FL125SDK7/SDK8/RDK8
2	09481-10501-000 SUB: 09481M10501-000	•FUSE (10A)	2	Rp12.000
3	31861-48B10-000 SUB: 31861-48B10L000	•CAP, STARTER MOTOR	1	Rp5.000
4	33624-07H00-000 SUB: 33624B07H00N000	•CAP BATTERY	1	Rp11.500
5	36620-16H00-000 SUB: 36620B16H00N000	HARNESS ASSY, CONTROL SWITCH	1	Rp42.000
6-1	36990-25G00-000 SUB: 09407-14403L000	CLAMP (L:125)	2	Rp13.000
6-2	09407-18402-000 SUB: 09407B18402N000	CLAMP (L:165)	4	Rp8.000
6-3	DISCONTINUE SUB: 09407-25401L000	CLAMP (L:235)	1	-
7	09407-30401-000	CLAMP (L:300)	1	Rp25.000
8	37100-13H20-000 SUB: 37100B13H00N000	LOCK ASSY, STEERING SET	1	Rp226.500
9	DISCONTINUE SUB: 09139B06048N000	SCREW (6X20)	2	-
10	37310-09G30-000 SUB: 37310B09G30N000	SWITCH ASSY, STARTER	1	Rp27.500
11	37340-16H10-000 SUB: 37340B16H10N000	SWITCH ASSY, LIGHTING	1	Rp33.500
12	37420-09G21-000 SUB: 37420B09G21N000	SWITCH ASSY, DIMMER	1	Rp20.500
13	37510-10E30-000 SUB: 37510B10E10N000	SWITCH ASSY, TURNSIGNAL	1	Rp24.000
14	37520-09G51-000 SUB: 37520B09G30N000	SWITCH ASSY, HORN	1	Rp20.000
15	37740-09G30-000 SUB: 37740B09G10N000	SWITCH ASSY, STOP LAMP	1	Rp20.000
16	DISCONTINUE SUB: 09443-06088-000	SPRING	1	-	FL125SDK7/SDK8
16A	09443-06083-000 SUB: 09443-06083L000	SPRING	1	Rp4.000	FL125RCDMK7/RDK8/RCDMK8
17	38500-09G01-000 SUB: 38500B09G02N000	HORN ASSY	1	Rp52.500
18	01550B0612BN000	BOLT	1	Rp2.500
