SHOGUN (FL125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.19 STARTER MOTORFIG.20 MAGNETO (FL125SDK7/SDK8/RDK8/RCDMK7/RCDMK8)FIG.20A MAGNETO (FL125RCDFK8)FIG.21 BATTERYFIG.22 ELECTRICAL (FL125SDK7/SDK8/RDK8/RCDMK/7/RCDMK8)FIG.22A ELECTRICAL (FL125RCDFK8)FIG.23 SPEEDOMETER (FL125SDK7/SDK8/RDK8/RCDMK7/RCDMK8)FIG.23A SPEEDOMETER (FL125RCDFK8)FIG.24 HEAD LAMPFIG.25 FRONT TURN SIGNAL LAMPFIG.26 REAR COMBINATION LAMPFIG.27 WIRING HARNESSFIG.27A WIRING HARNESS (FL125RCDFK8)

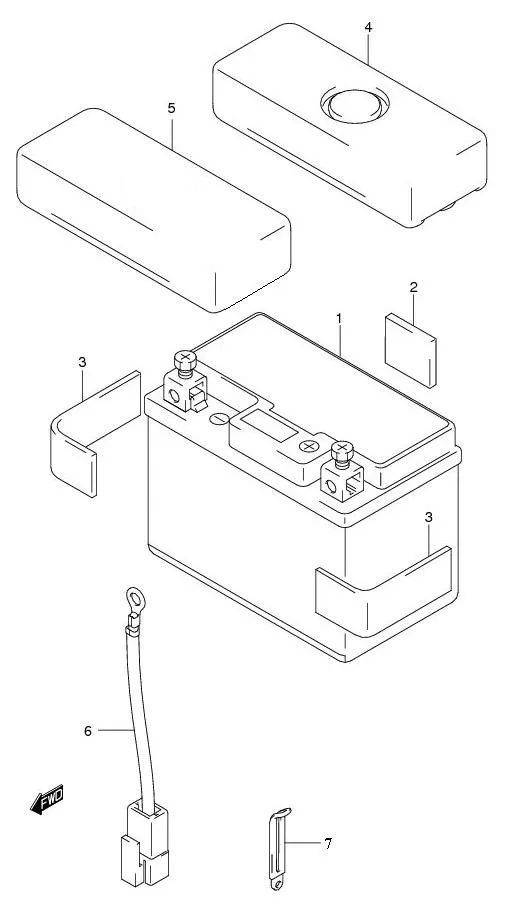

FIG.21 BATTERY

FIG.21 BATTERY
No No. Part Description Qty Price Per Pcs Remarks
1 33610-20GG0-000
SUB: 33610B20GC0N000		 BATTERY (YTZ5S,12V3.5H) 1 Rp413.000 GTZ5S
2 DISCONTINUE
SUB: 33652B16H00N000		 PROTECTOR (45X40X3) 1 -
3 DISCONTINUE
SUB: 33652B38A10N000		 PROTECTOR (20X90X2) 2 -
4 33653-31C10-000
SUB: 33653-31C00-000		 SPACER, BATTERY 1 Rp9.000 FL125SDK7/SDK8/RDK8/RCDMK7/RCDMK8
5 33653-31C10-000
SUB: 33653B31C10N000		 SPACER, BATTERY 1 Rp9.000 FL125RCDFK8
6 DISCONTINUE
SUB: 33860-30D10L000		 WIRE, BATTERY MINUS LEAD 1 -
7 09404-06429-000
SUB: 09404B06429N000		 CLAMP, STARTER (L:45) 1 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
