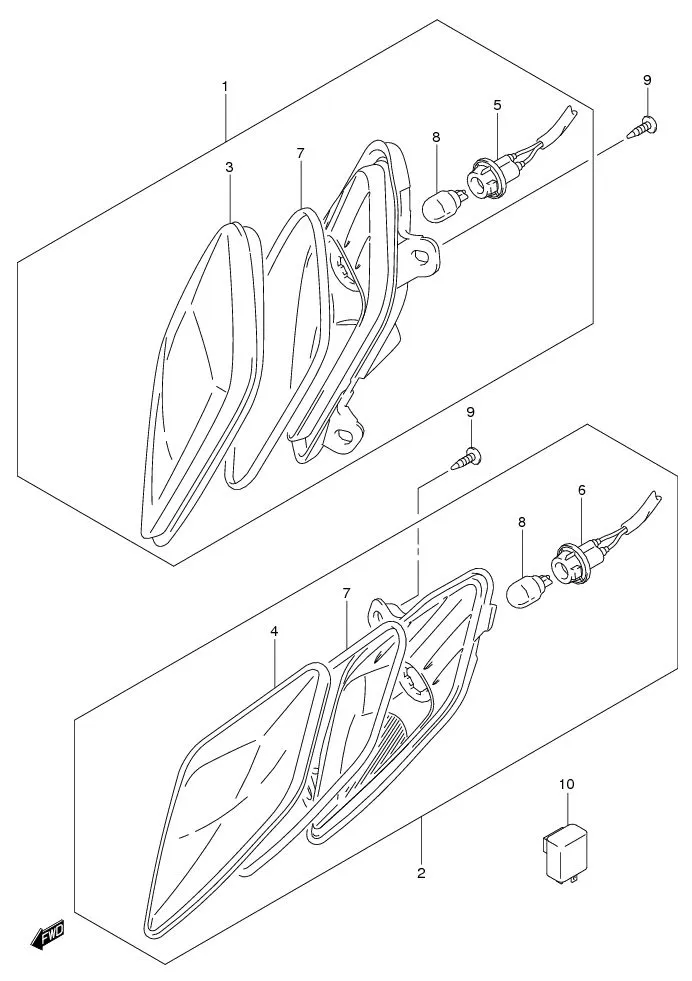

FIG.25 FRONT TURN SIGNAL LAMP

FIG.25 FRONT TURN SIGNAL LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35601-16H00-000
SUB: 35601B16H00N000		 LAMP ASSY, FRONT TURN, R 1 Rp70.000
2 35602-16H00-000
SUB: 35602B16H00N000		 LAMP ASSY, FRONT TURN, L 1 Rp70.000
3 35612-16H00-000
SUB: 35612B16H00N000		 •LENS, R 1 Rp11.500
4 35632-16H00-000
SUB: 35632B16H00N000		 •LENS, L 1 Rp11.500
5 35618-16H00-000
SUB: 35618B16H00N000		 •CORD ASSY, R 1 Rp14.000
6 DISCONTINUE
SUB: 35638B16H00N000		 •CORD ASSY, L 1 -
7 35613-16H00-000
SUB: 35613B16H00N000		 •GASKET 2 Rp4.500
8 09471-12114AS01
SUB: 09471B12203N000		 •BULB (12V10W,T13) 2 Rp14.000
9 03541-0512B-000
SUB: 03541B0512BN000		 SCREW, TURNSIGNAL 4 Rp4.000
10 38610-35491-000
SUB: 38610B09410N000		 RELAY ASSY, TURNSIGNAL 1 Rp45.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
