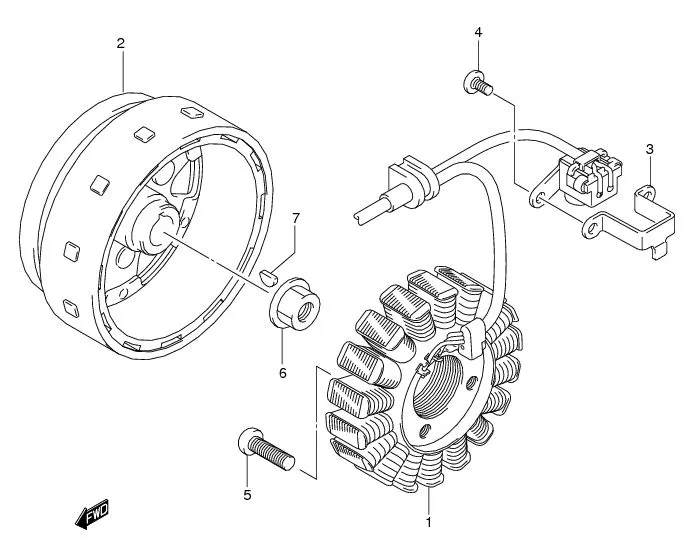

FIG.20A MAGNETO (FL125RCDFK8)

FIG.20A MAGNETO (FL125RCDFK8)
No No. Part Description Qty Price Per Pcs Remarks
1 32101-16H20-000
SUB: 32101B16H20N000		 STATOR ASSY 1 Rp498.000
2 DISCONTINUE
SUB: 32102B16H20N000		 ROTOR ASSY 1 -
3 DISCONTINUE
SUB: 32371B16H00N000		 CLAMP, MAGNETO LEAD 1 -
4 02142-0510A-000
SUB: 02142B0510BN000		 SCREW, SENSOR 2 Rp4.000
5 02112-0625A-000
SUB: 02112B0625BN000		 SCREW, MAGNETO STATOR 2 Rp4.000
6 08316-1012A-000
SUB: 08316B1012BN000		 NUT, MAGNETO ROTOR 1 Rp6.500
7 08341-31039-000
SUB: 08341B31039N000		 KEY, MAGNETO ROTOR 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
