SHOGUN (FL125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.19 STARTER MOTORFIG.20 MAGNETO (FL125SDK7/SDK8/RDK8/RCDMK7/RCDMK8)FIG.20A MAGNETO (FL125RCDFK8)FIG.21 BATTERYFIG.22 ELECTRICAL (FL125SDK7/SDK8/RDK8/RCDMK/7/RCDMK8)FIG.22A ELECTRICAL (FL125RCDFK8)FIG.23 SPEEDOMETER (FL125SDK7/SDK8/RDK8/RCDMK7/RCDMK8)FIG.23A SPEEDOMETER (FL125RCDFK8)FIG.24 HEAD LAMPFIG.25 FRONT TURN SIGNAL LAMPFIG.26 REAR COMBINATION LAMPFIG.27 WIRING HARNESSFIG.27A WIRING HARNESS (FL125RCDFK8)

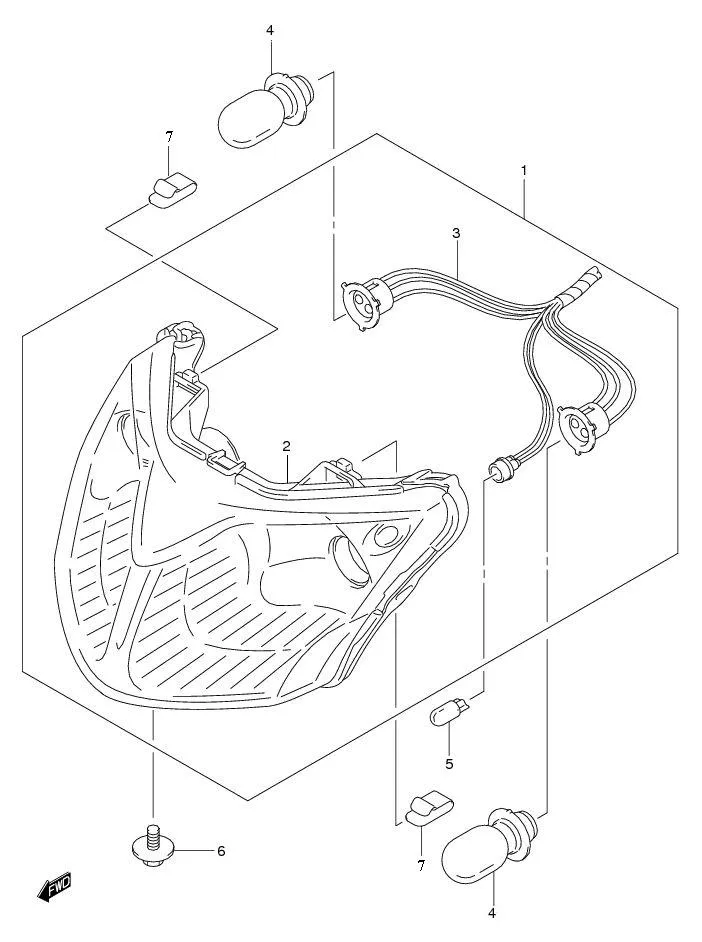

FIG.24 HEAD LAMP

FIG.24 HEAD LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35100-16H10-000
SUB: 35100B16H10N000		 HEADLAMP ASSY 1 Rp189.000
2 35121-16H10-000
SUB: 35121B16H10N000		 •HEADLAMP UNIT 1 Rp135.500
3 35171-16H10-000
SUB: 35171B16H10N000		 •CORD ASSY 1 Rp32.000
4 09471-12013-000
SUB: 09471-12013L000		 •BULB (12V25/25W) 2 Rp15.000
5 09471-12028-000
SUB: 09471-12028L000		 •BULB (12V3.4W,T10) 1 Rp8.000
6 09136-05065-000
SUB: 09136B05065N000		 SCREW, HEADLAMP 1 Rp5.500
7 35194-23F00-000
SUB: 35194B23F00N000		 CLIP, HEADLAMP 2 Rp8.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
