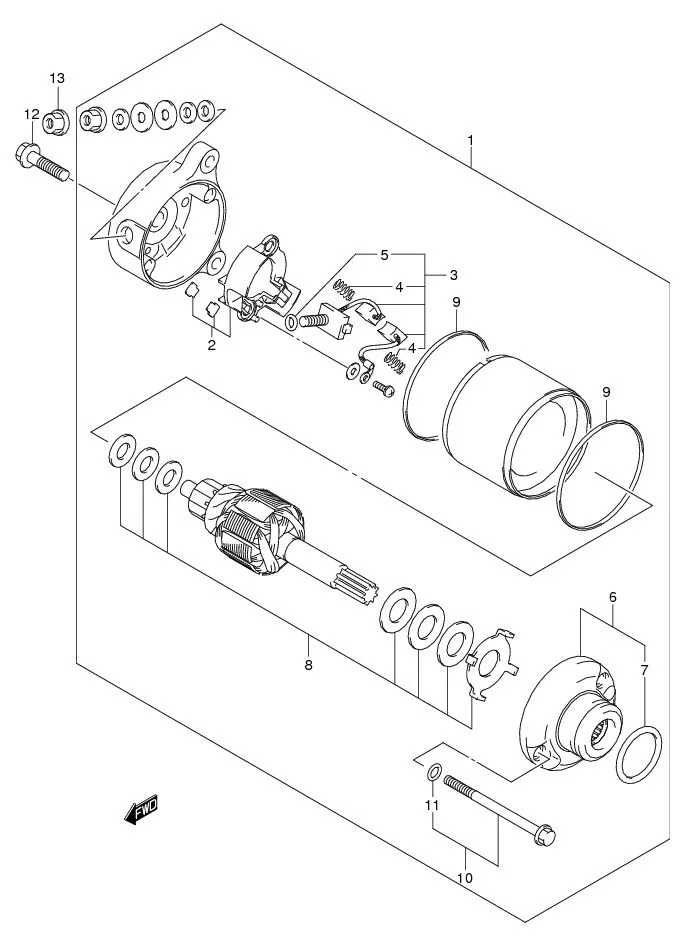

FIG.19 STARTER MOTOR

FIG.19 STARTER MOTOR
No No. Part Description Qty Price Per Pcs Remarks
1 31100-20G10-000
SUB: 31100B20G10N000		 MOTOR ASSY, STARTING 1 Rp467.000
2 31130-20G00-000
SUB: 31130B20G00N000		 •HOLDER SET, BRUSH 1 Rp34.000
3 31131-20G00-000
SUB: 31131B20G00N000		 •BRUSH SET 1 Rp47.500
4 31135-19D00-000
SUB: 31135B19D00N000		 ••SPRING 2 Rp4.500
5 DISCONTINUE
SUB: 31143B49040N000		 ••O RING 1 -
6 31151-20G00-000
SUB: 31151B20G00N000		 •HOUSING SET 1 Rp140.500
7 31156-98E00-000
SUB: 31156B98E00N000		 ••O RING 1 Rp3.000
8 31170-19B10-000
SUB: 31170B19B10N000		 •WASHER SET 1 Rp12.000
9 31264-13E00-000
SUB: 31264B13E00N000		 •O RING 2 Rp4.000
10 31280-20G00-000
SUB: 31280B20G00N000		 •BOLT SET 2 Rp4.000
11 DISCONTINUE
SUB: 31143B49040N000		 ••O RING 2 -
12 01547-0625A-000
SUB: 01547B0625BN000		 BOLT, STARTING MOTOR 2 Rp6.500
13 08361-3506A-000
SUB: 08361B3506AN000		 NUT 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
