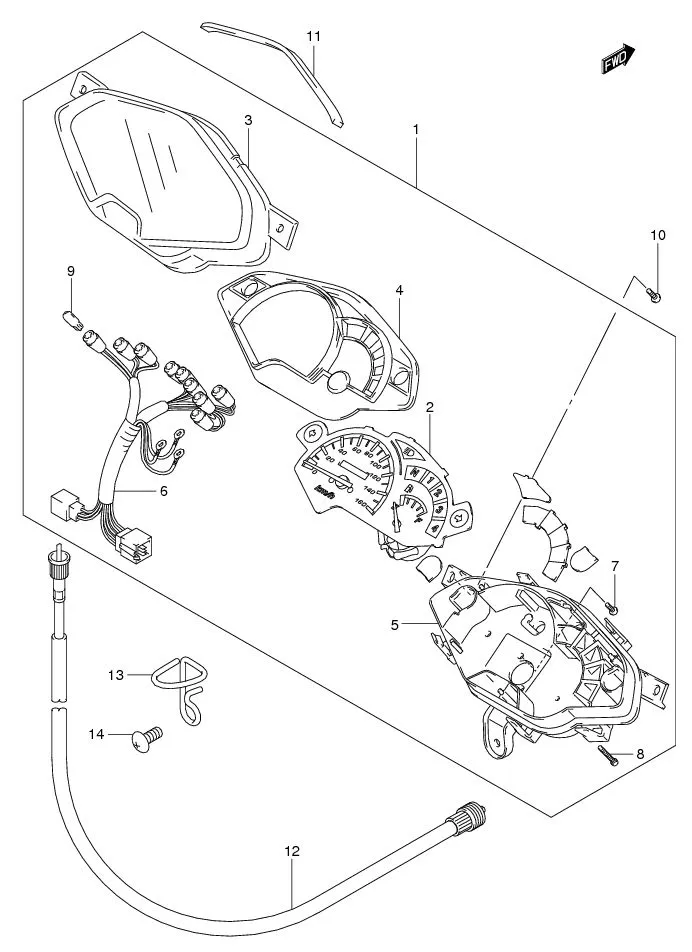

FIG.23 SPEEDOMETER (FL125SDK7/SDK8/RDK8/RCDMK7/RCDMK8)

FIG.23 SPEEDOMETER (FL125SDK7/SDK8/RDK8/RCDMK7/RCDMK8)
No No. Part Description Qty Price Per Pcs Remarks
1-1 34100-16H60-000
SUB: 34100B16H31N000		 SPEEDOMETER ASSY 1 Rp293.500 MODEL K7
1-2 34100-16H60-000
SUB: 34100B16H60N000		 SPEEDOMETER ASSY 1 Rp293.500 MODEL K8
2-1 DISCONTINUE
SUB: 34110B16H30N000		 •SPEED & FUEL METER 1 - MODEL K7
2-2 DISCONTINUE
SUB: 34110B16H60N000		 •SPEED & FUEL METER 1 - MODEL K8
3 34150-16H00-000
SUB: 34150B16H00N000		 •GLASS ASSY 1 Rp35.000
4 DISCONTINUE
SUB: 34125B16H00N000		 •REFRACTOR ASSY 1 -
5 34111-16H00-000
SUB: 34111B16H00N000		 •LOWER CASE ASSY 1 Rp61.500
6 34173-16H00-000
SUB: 34173B16H00N000		 •SOCKET LAMP ASSY 1 Rp81.000
7 DISCONTINUE
SUB: 02112-74103L000		 •SCREW (4X10) 2 -
8 DISCONTINUE
SUB: 34383B09400N000		 •SCREW (3X22) 3 -
9 09471-12108-000
SUB: 09471-12108L000		 •BULB (12V1.7W,T6.5) 9 Rp9.500
10 03541-0516A-000
SUB: 03541B0516BN000		 SCREW, SPEEDOMETER 3 Rp3.500
11 34188-09G00-000
SUB: 34188B09G00N000		 CUSHION, SPEEDOMETER 1 Rp7.500
12 34910-20G21-000
SUB: 34910B20G20N000		 CABLE ASSY, SPEEDOMETER 1 Rp36.500
13 DISCONTINUE
SUB: 34931B20G00N000		 GUIDE, SPEEDOMETER 1 -
14 02142-0612A-000
SUB: 02142B0612BN000		 BOLT, GUIDE 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
