SHOGUN (FL125)

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.19 STARTER MOTORFIG.20 MAGNETO (FL125SDK7/SDK8/RDK8/RCDMK7/RCDMK8)FIG.20A MAGNETO (FL125RCDFK8)FIG.21 BATTERYFIG.22 ELECTRICAL (FL125SDK7/SDK8/RDK8/RCDMK/7/RCDMK8)FIG.22A ELECTRICAL (FL125RCDFK8)FIG.23 SPEEDOMETER (FL125SDK7/SDK8/RDK8/RCDMK7/RCDMK8)FIG.23A SPEEDOMETER (FL125RCDFK8)FIG.24 HEAD LAMPFIG.25 FRONT TURN SIGNAL LAMPFIG.26 REAR COMBINATION LAMPFIG.27 WIRING HARNESSFIG.27A WIRING HARNESS (FL125RCDFK8)

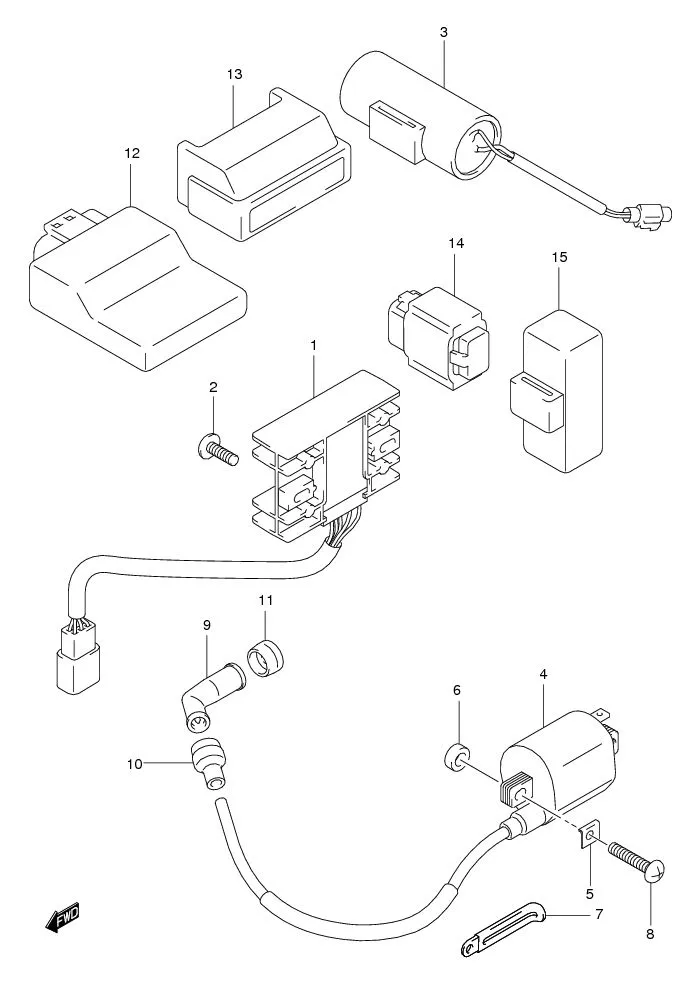

FIG.22A ELECTRICAL (FL125RCDFK8)

FIG.22A ELECTRICAL (FL125RCDFK8)
No No. Part Description Qty Price Per Pcs Remarks
1 32800-19B11-000
SUB: 32800B19B11N000		 RECTIFIER ASSY 1 Rp229.000
2 01550-0620B-000
SUB: 01550B0620BN000		 BOLT 2 Rp3.500
3 DISCONTINUE
SUB: 33640B13H00N000		 CONDENSER ASSY 1 -
4 DISCONTINUE
SUB: 33410B16H00N000		 COIL ASSY, IGNITION 1 -
5 DISCONTINUE
SUB: 33445B16H00N000		 PLATE, IGNITION COIL 1 -
6 09180-06339-000
SUB: 09180B06339N000		 SPACER 2 Rp3.500
7 09404-06429-000
SUB: 09404B06429N000		 CLAMP (L:45) 1 Rp15.000
8 02112-0625A-000
SUB: 02112B0625BN000		 SCREW, IGNITION COIL 2 Rp4.000
9 33500-16H00-000
SUB: 33510B16H10N000		 CAP, SPARK PLUG 1 Rp41.000
10 33542B16H00N000 SEAL, HIGH TENSION CORD 1 -
11 DISCONTINUE
SUB: 33541B16H00N000		 SEAL, SPARK PLUG 1 -
12 DISCONTINUE
SUB: 32920B16H10N000		 CONTROL UNIT, FI 1 -
13 DISCONTINUE
SUB: 32980-13G00-000		 HOLDER, FI CONTROL UNIT 1 -
14 33960-06G10-000
SUB: 33960B06G10N000		 SENSOR ASSY, FUEL CUT 1 Rp108.000
15 31800-16H00-000
SUB: 31800B16H00N000		 RELAY ASSY, STARTING MOTOR 1 Rp64.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
