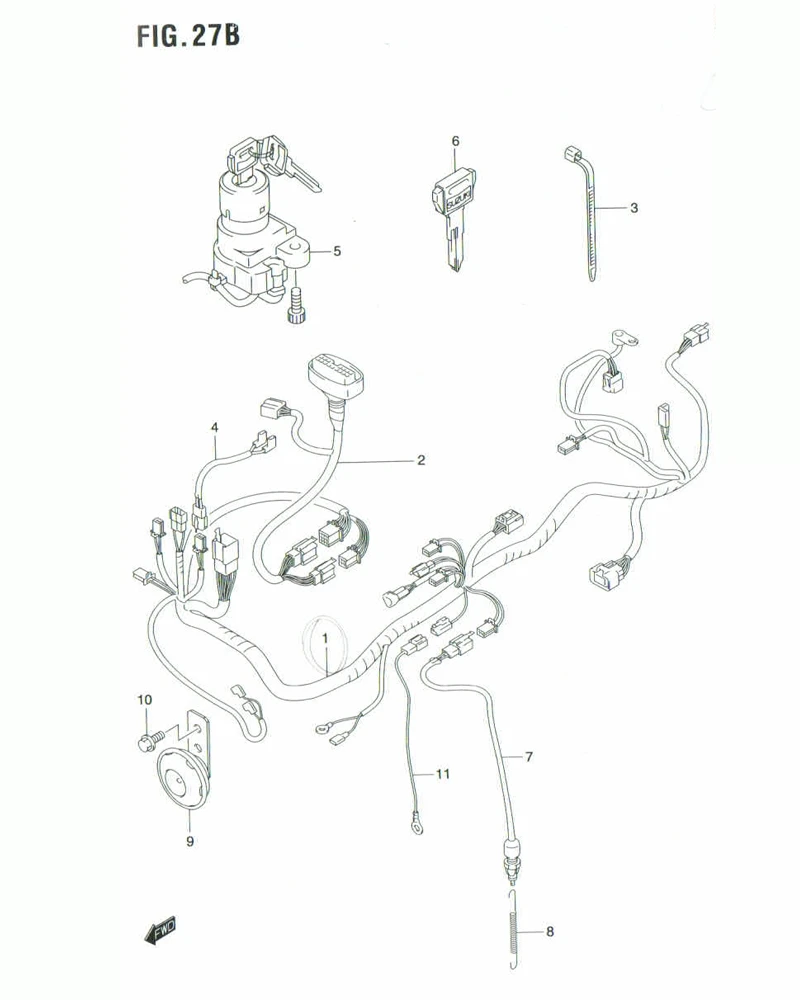

FIG. 27B WIRING HARNESS (FU150SCDK9)

FIG. 27B WIRING HARNESS (FU150SCDK9)
No No. Part Description Qty Price Per Pcs Remarks
1 36610-25G20-000
SUB: 36610B25G20N000		 HARNESS, WIRING 1 Rp289.500
2 36620-25G10-000
SUB: 36620B25G10N000		 HARNESS, WIRING NO.2 1 Rp66.000
3-1 36990-25G00-000
SUB: 09407-11401-000		 CLAMP (L:95) 3 Rp13.000
3-2 09407-18402-000 CLAMP (L:165) 3 Rp8.000
3-3 DISCONTINUE
SUB: 09407B25401N000		 CLAMP (L:235) 1 -
4 36852-25G00-000
SUB: 36852B25G00N000		 WIRE, DISC BRAKE LEAD 1 Rp45.500
5-1 37011-25G11-000
SUB: 37019B25G00N000		 LOCK SET, STEERING & SEAT 1 Rp237.000
5-2 37100-25G00-000
SUB: 37100B25G00N000		 LOCK ASSY, STEERING 1 Rp231.500
6 DISCONTINUE
SUB: 37146-03A00-000		 KEY, BLANK 1 -
7 37740-45D00-000
SUB: 37740B45D00N000		 SWITCH ASSY, STOP LAMP 1 Rp18.500
8 09443-06075-000
SUB: 09443B06075N000		 SPRING 1 Rp3.000
9 38500-25G10-000
SUB: 38500B25G10N000		 HORN ASSY 1 Rp55.000
10 01550-0610B-000
SUB: 01550B0610BN000		 BOLT 1 Rp3.000
11 33860-30D10-000
SUB: 33860B30D10N000		 WIRE, ENGINE EARTH 1 Rp17.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
