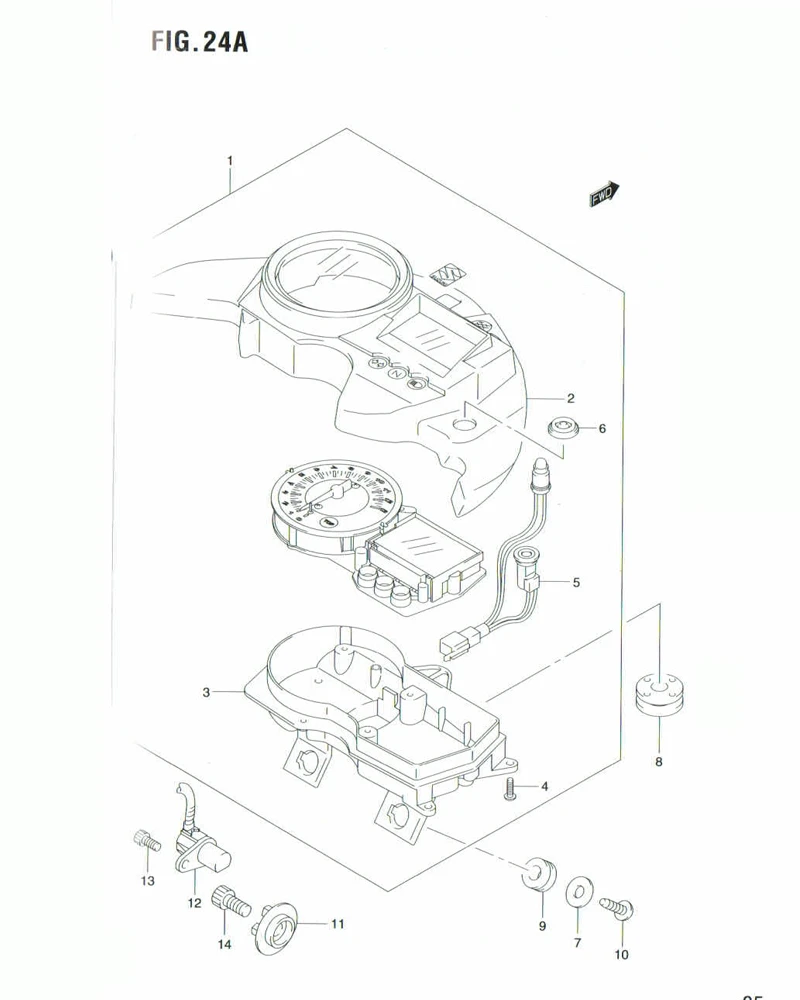

FIG. 24A SPEEDOMETER (MODEL K9)

FIG. 24A SPEEDOMETER (MODEL K9)
No No. Part Description Qty Price Per Pcs Remarks
1 34100-25G20-000
SUB: 34100B25G10N000		 SPEEDOMETER 1 Rp1.038.500
2 34112-25G10-000
SUB: 34112B25G10N000		 .VISOR ASSY 1 Rp104.000
3 34111-25G10-000
SUB: 34111B25G10N000		 .LOWER CASE 1 Rp51.000
4 34149-03G00-000
SUB: 34149B03G00N000		 .SCREW (3X14) 10 Rp3.500
5 34170-25G10-000
SUB: 34170B25G10N000		 .CORD ASSY 1 Rp97.500
6 3414B25G10N-000 .SWITCH, SELECT 1 -
7 09160-05045-000
SUB: 09160B05045N000		 WASHER, SPEEDOMETER 2 Rp4.500
8 09320-08028-000
SUB: 09320B08028N000		 CUSHION, UPPER 1 Rp11.500
9 09320-09016-000
SUB: 09320-09016L000		 CUSHION, LOWER 2 Rp4.000
10 03541-0516A-000
SUB: 03541B0516BN000		 SCREW, SPEEDOMETER 2 Rp3.500
11 34981-25G00-000 ROTOR, SPEED 1 Rp44.000
12 34990-25G12-000
SUB: 34990B25G10N000		 SENSOR, SPEED 1 Rp208.000
13 07130-0512A-000
SUB: 07130-0512B-000		 BOLT, SPEED SENSOR 1 Rp4.000
14 07130-0816A-000
SUB: 07130B0816BN000		 BOLT, SPEED ROTOR 1 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
