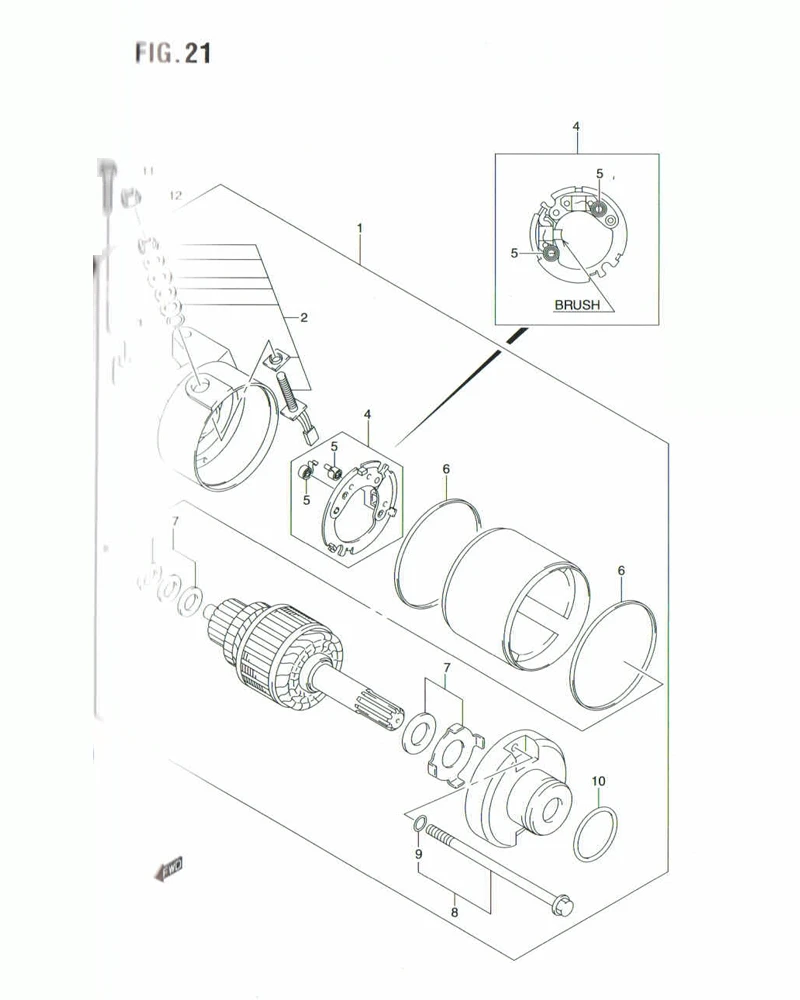

FIG. 21 STARTING MOTOR (FU150SCDK6/K9)

FIG. 21 STARTING MOTOR (FU150SCDK6/K9)
No No. Part Description Qty Price Per Pcs Remarks
1 31100-47E10-000 MOTOR ASSY, STARTING 1 Rp1.588.500
2 31130-13E00-000 .BRUSH TERMINAL SET 1 Rp231.500
3 DISCONTINUE
SUB: 31143B49040N000		 .O RING 1 -
4 31132-33E00-000 .BRUSH HOLDER SET 1 Rp66.500
5 31135-31300-000 ..SPRING, BRUSH 2 Rp29.500
6 31264-13E00-000
SUB: 31264B13E00N000		 .O RING 2 Rp4.000
7 31170-19B10-000
SUB: 31170B19B10N000		 .WASHER SET 1 Rp12.000
8 DISCONTINUE
SUB: 31280-15D10-000		 .BOLT SET 2 -
9 31156-13E0 ..O RING 2 -
10 09280-24003-000
SUB: 09280B24003N000		 .O RING (D:3.0,ID:24.5) 1 Rp4.500
11 01547-0625A-000
SUB: 01547B0625BN000		 BOLT 2 Rp6.500
12 08361-3506A-000 NUT 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
