Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 21 STARTING MOTOR (FU150SCDK6/K9)FIG. 21A MAGNETO (FU150SCK3/SCK6)FIG. 21B MAGNETO (FU150SCDK6/K9)FIG. 22 BATTERY FIG. 23 ELECTRICAL FIG. 24 SPEEDOMETER (MODEL K3/K6)FIG. 24A SPEEDOMETER (MODEL K9)FIG. 25 HEADLAMP (MODEL K3/K6)FIG. 25A HEADLAMP (MODEL K9)FIG. 26 REAR COMBINATION LAMP FIG. 27 WIRING HARNESS (FU150SCK3/SCK6)FIG. 27A WIRING HARNESS (FU150SCDK6)FIG. 27B WIRING HARNESS (FU150SCDK9)

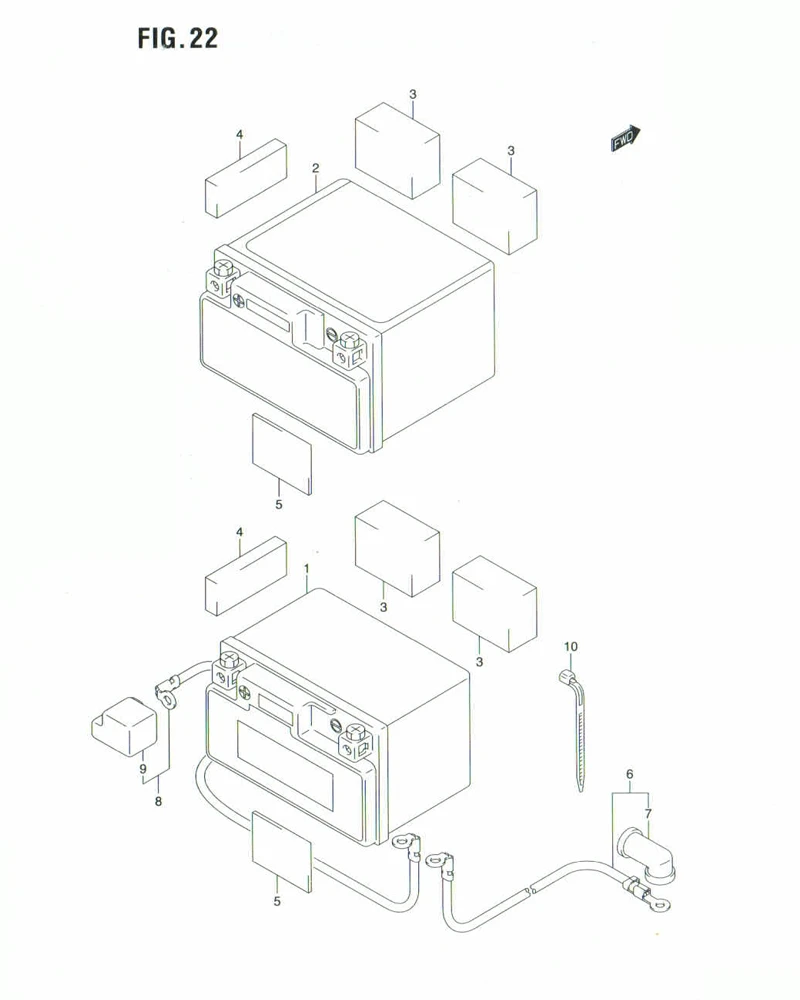

FIG. 22 BATTERY

FIG. 22 BATTERY

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	33610-25G10-000 SUB: 33610B25G00N000	BATTERY (YTZ3,12V2.5AH)	1	Rp434.500
2	33610-25G10-000 SUB: 33610B25G10N000	BATTERY (FTZ7S,12V6AH	1	Rp434.500
3	33652-36100-000 SUB: 33652-36100L000	PROTECTOR (40X30X2.0)	2	Rp3.500
4	33652-35400-000	PROTECTOR (20X50X8)	1	Rp7.000
5	33652-36100-000 SUB: 33652-36100L000	PROTECTOR (30X40X2.0)	1	Rp3.500
6	33810-47E10T000	WIRE, STARTER MOTOR	1	Rp41.500
7	31861-48B10-000 SUB: 31861-48B10L000	.CAP. STARTER MOTOR	1	Rp5.000
8	33820-25G00-000 SUB: 33820B25G00N000	WIRE, BATTERY PLUS	1	Rp54.500
9	33624-31C10-000	.CAP, BATTERY PLUS	1	Rp9.500
10	09407-18402-000	CLAMP (L:165)	1	Rp8.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
