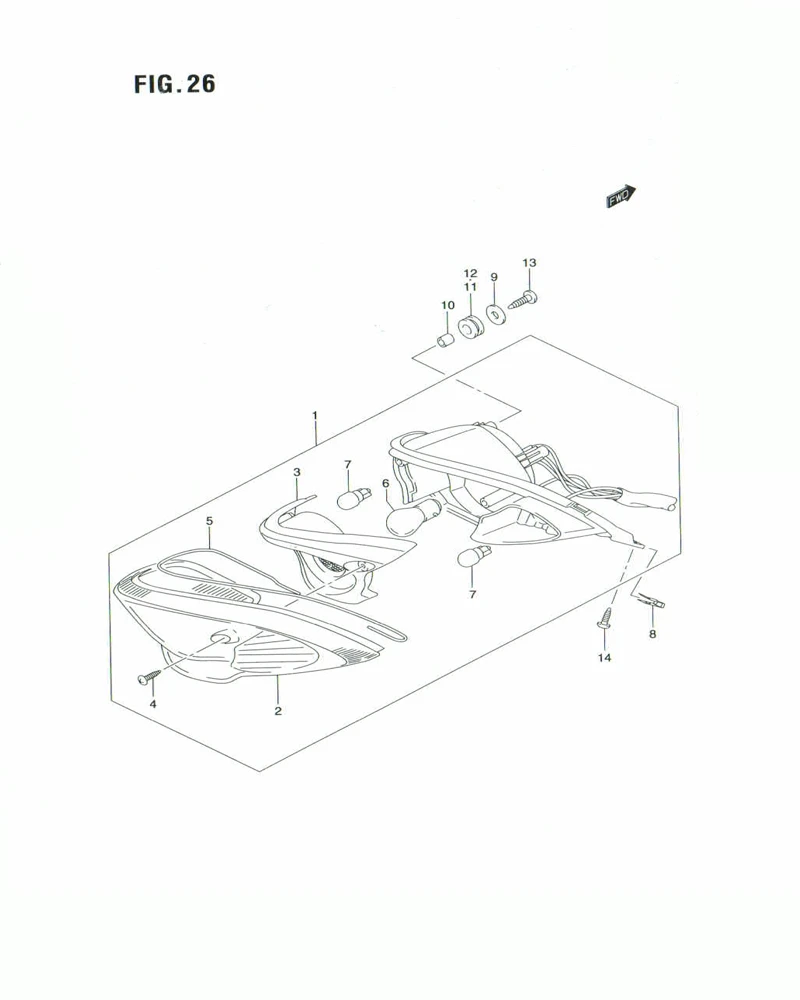

FIG. 26 REAR COMBINATION LAMP

FIG. 26 REAR COMBINATION LAMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	35710-25G01-000 SUB: 35710B25G00N000	LAMP ASSY, REAR COMBINATION	1	Rp161.000
2	35712-25G00-000 SUB: 35712B25G00N000	.LENS	1	Rp24.000
3	35912-25G00-000 SUB: 35912B25G00N000	.LENS, INNER	1	Rp16.500
4	03211-04207-000	.SCREW	2	Rp8.500
5	35713-25G00-000 SUB: 35713B25G00N000	.GASKET	1	Rp4.500
6	09471-12127-000 SUB: 09471B12119N000	.BULB (12V 18/5W)	1	Rp12.500
7	09471-12114AS01 SUB: 09471B12203N000	.BULB (12V 10W)	2	Rp14.000
8	09148-05047-000	NUT, REAR COMB	3	Rp3.500
9	09160-05045-000 SUB: 09160B05045N000	WASHER (5.5X18X1.0)	5	Rp4.500
10	48211-09G00-000 SUB: 48211B09G00N000	SPACER (6.1X9X9)	3	Rp3.000
11	09320-09016-000 SUB: 09320-09016L000	CUSHION, REAR	4	Rp4.000
12	09320-09050-000 SUB: 09320B09050N000	CUSHION, REAR LOWER	1	Rp7.000
13	03541-0512B-000 SUB: 03541B0512BN000	SCREW, REAR COMB	2	Rp4.000
14	03541-0520B-000 SUB: 03541B0520BN000	SCREW, REAR UNDER	3	Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
