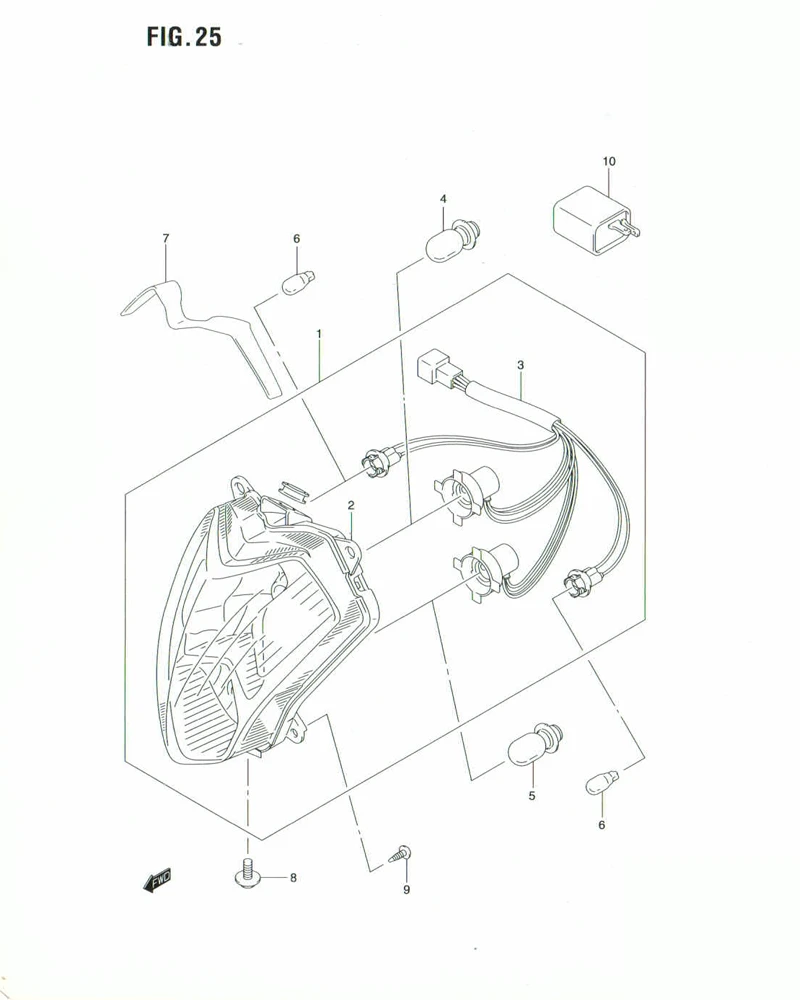

FIG. 25 HEADLAMP (MODEL K3/K6)

FIG. 25 HEADLAMP (MODEL K3/K6)
No No. Part Description Qty Price Per Pcs Remarks
1 35100-25G00-000
SUB: 35100B25G00N000		 HEADLAMP ASSY 1 Rp228.000
2 35121-25G00-000
SUB: 35121B25G00N000		 .HEAD LAMP UNIT 1 Rp157.500
3 35171-25G00-000
SUB: 35171B25G00N000		 .CORD & SOCKET 1 Rp50.500
4 09471-12213-000
SUB: 09471B12213N000		 .BULB (12V/32/32W) 1 Rp35.500
5 09471B23FA0N000 .BULB (12V 18/18W) 1 Rp39.500
6 09471-12114AS01
SUB: 09471B12203N000		 .BULB (12V 10W) 2 Rp14.000
7 35137-25G00-000 CUSHION, HEADLAMP 1 Rp11.000
8 09136-05051-000 SCREW, HEADLAMP ADJUST 1 Rp6.500
9 03541-0516A-000
SUB: 03541B0516AN000		 SCREW, HEADLAMP ADJUST 4 Rp3.500
10 38610-35491-000
SUB: 38610B09410N000		 RELAY ASSY, TURNSIGNAL 1 Rp45.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
