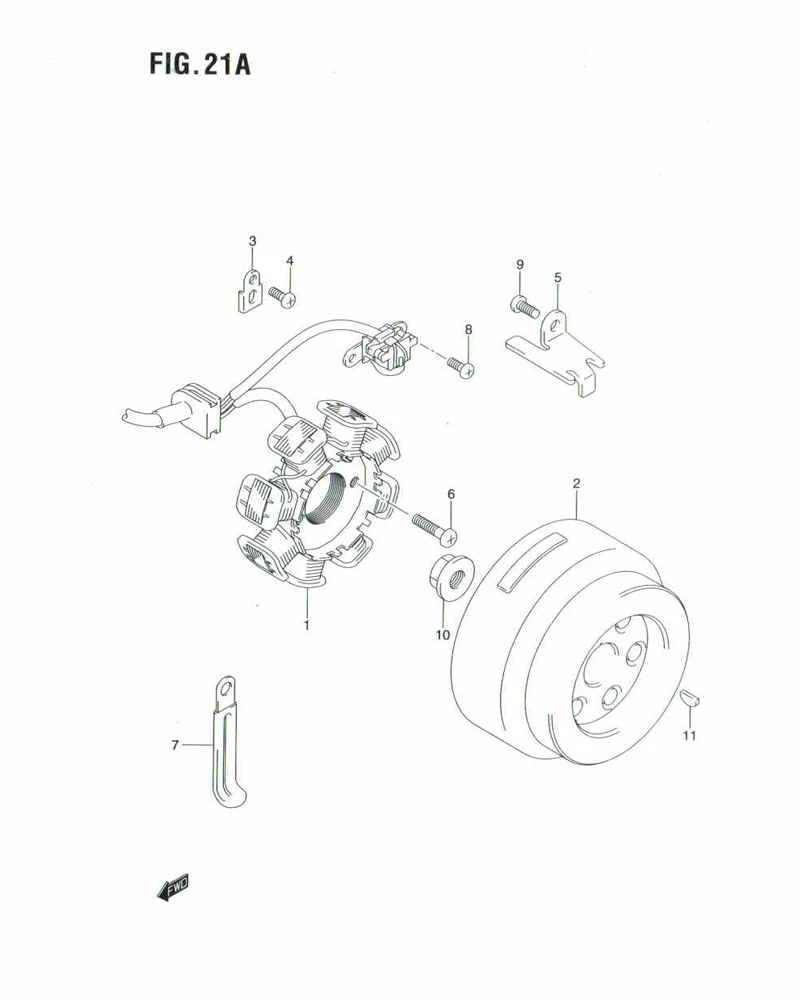

FIG. 21A MAGNETO (FU150SCK3/SCK6)

FIG. 21A MAGNETO (FU150SCK3/SCK6)
No No. Part Description Qty Price Per Pcs Remarks
1 32101-25G00-000 STATOR ASSY 1 Rp713.500
2 32102-25G00-000 ROTOR ASSY 1 Rp839.000
3 DISCONTINUE
SUB: 31497B45000N000		 CLAMP, SENSOR 1 -
4 02142-0510A-000
SUB: 02142B0510BN000		 SCREW 1 Rp4.000
5 DISCONTINUE
SUB: 32371-30D00L000		 CLAMP, MAG 1 -
6 02112-0620A-000
SUB: 02112B0620BN000		 SCREW 2 Rp4.000
7 09404-06429-000
SUB: 09404B06429N000		 CLAMP (L:45) 1 Rp15.000
8 DISCONTINUE
SUB: 02112-0510A-000		 SCREW, SENSOR 2 -
9 02112-0610B-000
SUB: 02112B0610BN000		 SCREW, MAG CLAMP 1 Rp5.500
10 08316-1012A-000 NUT 1 Rp6.500
11 08341-31039-000
SUB: 08341B31039N000		 KEY 1 Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
