Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 21 STARTING MOTOR (FU150SCDK6/K9)FIG. 21A MAGNETO (FU150SCK3/SCK6)FIG. 21B MAGNETO (FU150SCDK6/K9)FIG. 22 BATTERY FIG. 23 ELECTRICAL FIG. 24 SPEEDOMETER (MODEL K3/K6)FIG. 24A SPEEDOMETER (MODEL K9)FIG. 25 HEADLAMP (MODEL K3/K6)FIG. 25A HEADLAMP (MODEL K9)FIG. 26 REAR COMBINATION LAMP FIG. 27 WIRING HARNESS (FU150SCK3/SCK6)FIG. 27A WIRING HARNESS (FU150SCDK6)FIG. 27B WIRING HARNESS (FU150SCDK9)

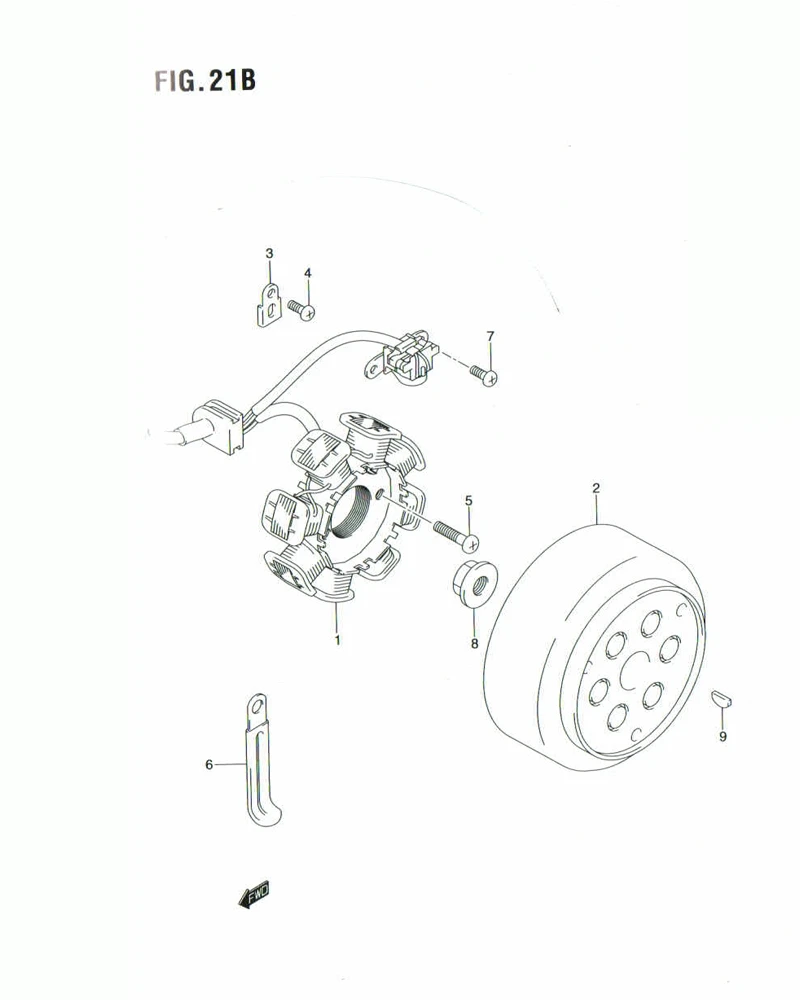

FIG. 21B MAGNETO (FU150SCDK6/K9)

FIG. 21B MAGNETO (FU150SCDK6/K9)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	32101-25G10-000 SUB: 32101B25G10N000	STATOR ASSY	1	Rp274.000
2	32102-25G10-000 SUB: 32102B25G10N000	ROTOR ASSY	1	Rp250.500
3	DISCONTINUE SUB: 31497B45000N000	CLAMP, SENSOR	1	-
4	02142-0510A-000 SUB: 02142B0510BN000	SCREW	1	Rp4.000
5	02112-0620A-000 SUB: 02112B0620BN000	SCREW	2	Rp4.000
6	DISCONTINUE SUB: 09404B06433N000	CLAMP (L:80)	1	-
7	02142-0510A-000 SUB: 02142B0510BN000	SCREW, SENSOR	2	Rp4.000
8	08316-1012A-000 SUB: 08316B1012BN000	NUT	1	Rp6.500
9	08341-31039-000 SUB: 08341B31039N000	KEY	1	Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
