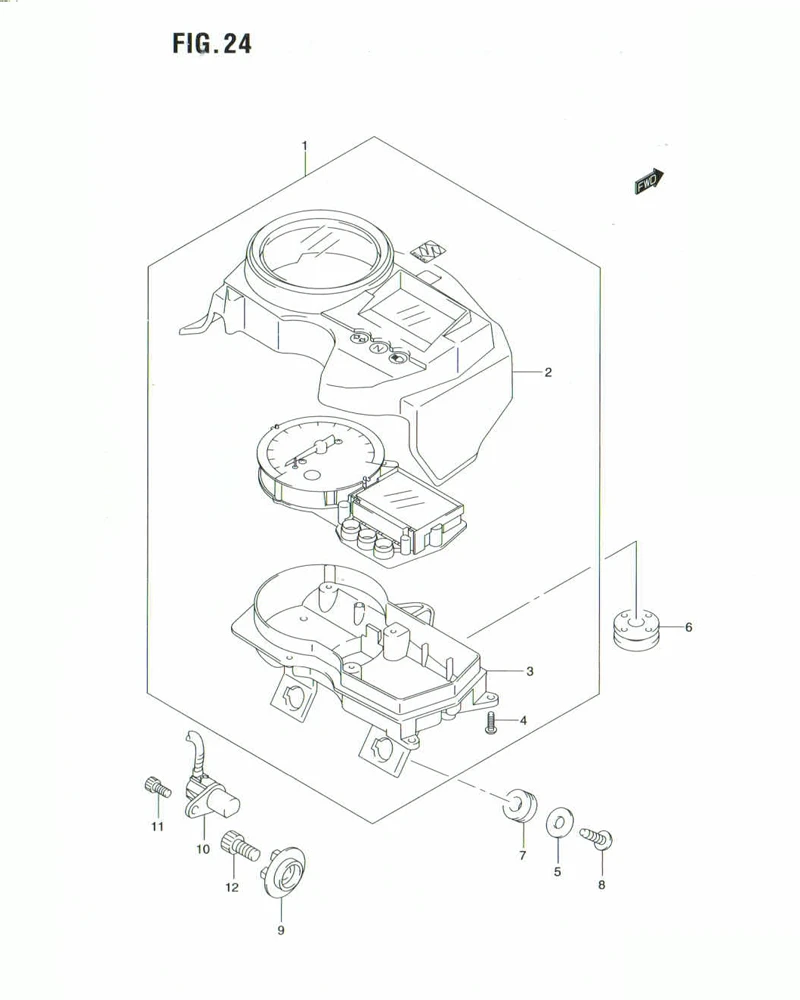

FIG. 24 SPEEDOMETER (MODEL K3/K6)

FIG. 24 SPEEDOMETER (MODEL K3/K6)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 34100B25G01N000		 SPEEDOMETER 1 -
2 34112-25G00-000
SUB: 34112B25G00N000		 .VISOR ASSY 1 Rp56.500
3 34111-25G00-000
SUB: 34111B25G00N000		 .LOWER CASE 1 Rp40.000
4 34149B25G00N000 .SCREW (3X14) 10 -
5 09160-05045-000
SUB: 09160B05045N000		 WASHER, SPEEDOMETER 2 Rp4.500
6 09320-08028-000
SUB: 09320B08028N000		 CUSHION, UPPER 1 Rp11.500
7 09320-09016-000
SUB: 09320-09016L000		 CUSHION, LOWER 2 Rp4.000
8 03541-0516A-000
SUB: 03541B05163N000		 SCREW, SPEEDOMETER 2 Rp3.500
9 34981-25G00-000 ROTOR, SPEED 1 Rp44.000
10 34990-25G01-000
SUB: 34990B25G00N000		 SENSOR, SPEED 1 Rp169.000
11 07120-0512B-000 BOLT, SPEED SENSOR 1 Rp18.000
12 07130-0816A-000
SUB: 07130-08163-000		 BOLD, SPEED ROTOR 1 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
