Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 21 STARTING MOTOR (FU150SCDK6/K9)FIG. 21A MAGNETO (FU150SCK3/SCK6)FIG. 21B MAGNETO (FU150SCDK6/K9)FIG. 22 BATTERYFIG. 23 ELECTRICALFIG. 24 SPEEDOMETER (MODEL K3/K6)FIG. 24A SPEEDOMETER (MODEL K9)FIG. 25 HEADLAMP (MODEL K3/K6)FIG. 25A HEADLAMP (MODEL K9)FIG. 26 REAR COMBINATION LAMPFIG. 27 WIRING HARNESS (FU150SCK3/SCK6)FIG. 27A WIRING HARNESS (FU150SCDK6)FIG. 27B WIRING HARNESS (FU150SCDK9)

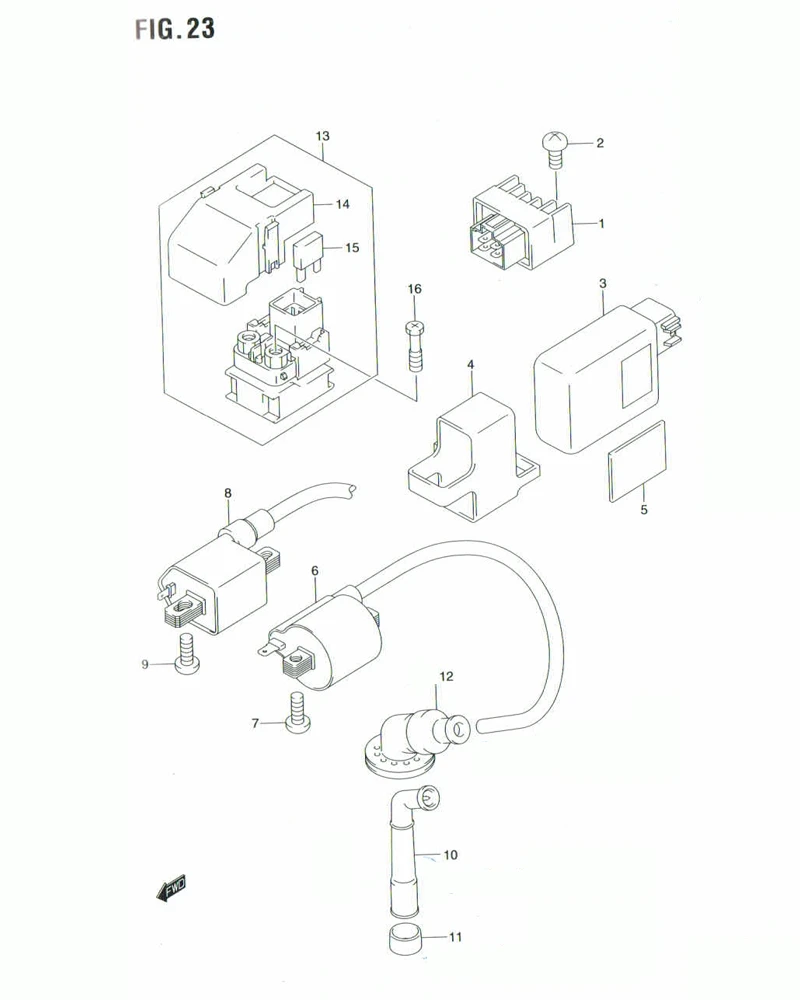

FIG. 23 ELECTRICAL

FIG. 23 ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 32800-41H01-000
SUB: 32800B47E00N000		 RECTIFIER ASSY 1 Rp117.500
2 02112-0612A-000
SUB: 02112B0612BN000		 SCREW 1 Rp3.500
3 32900B25G0IN000 CDI UNIT 1 -
4 32980-28F00-000
SUB: 32980B28F00N000		 CUSHION 1 Rp33.000
5 33652-36100-000
SUB: 33652-36100L000		 PROTECTOR, CDI UNIT 1 Rp3.500
6 33410-25G00-000
SUB: 33410-03D00-000		 COIL ASSY, IGNITION 1 Rp85.500
7 02112-0616B-000
SUB: 02112B0616BN000		 SCREW 2 Rp6.500
8 33410-25G00-000
SUB: 33410B25G00N000		 COIL ASSY, IGNITION 1 Rp85.500
9 02112-0616B-000
SUB: 02112B0616BN000		 SCREW 2 Rp6.500
10 33510B25G00H000 CAP, SPARK PLUG 1 -
11 33541-25G00-000
SUB: 33541B25G00N000		 SEAL, SPARK PLUG 1 Rp9.000
12 33542-25G10-000
SUB: 33542B25G10N000		 SEAL, HIGH TENSION CORD 1 Rp17.500
13 31800-25G00-000
SUB: 31800B25G00N000		 RELAY ASSY, STARTING MOTOR 1 Rp90.000
14 31861-47E00-000 .COVER 1 Rp7.000
15 09481-10101-000
SUB: 09481B10101N000		 .FUSE (10A) 2 Rp4.000
16 09128-06013-000
SUB: 09128B06013N000		 BOLT (6X8) 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
