Satria FU150SCD K6/K9

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 21 STARTING MOTOR (FU150SCDK6/K9)FIG. 21A MAGNETO (FU150SCK3/SCK6)FIG. 21B MAGNETO (FU150SCDK6/K9)FIG. 22 BATTERYFIG. 23 ELECTRICALFIG. 24 SPEEDOMETER (MODEL K3/K6)FIG. 24A SPEEDOMETER (MODEL K9)FIG. 25 HEADLAMP (MODEL K3/K6)FIG. 25A HEADLAMP (MODEL K9)FIG. 26 REAR COMBINATION LAMPFIG. 27 WIRING HARNESS (FU150SCK3/SCK6)FIG. 27A WIRING HARNESS (FU150SCDK6)FIG. 27B WIRING HARNESS (FU150SCDK9)

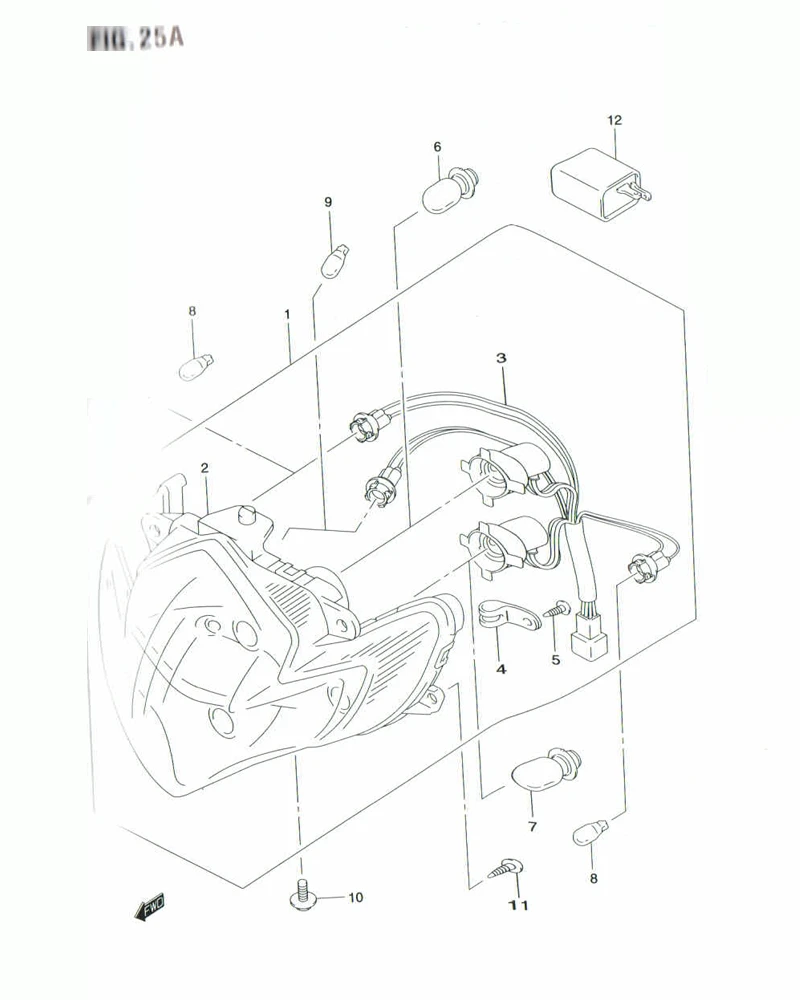

FIG. 25A HEADLAMP (MODEL K9)

FIG. 25A HEADLAMP (MODEL K9)
No No. Part Description Qty Price Per Pcs Remarks
1 35100-25G12-000
SUB: 35100B25G10N000		 HEADLAMP ASSY 1 Rp320.000
2 35121-25G10-000
SUB: 35121B25G10N000		 .HEAD LAMP UNIT 1 Rp204.500
3 35171-25G10-000
SUB: 35171B25G10N000		 .CORD & SOCKET 1 Rp50.500
4 DISCONTINUE
SUB: 35189-25G10-000		 .HOLDER CORD 1 -
5 03511B041GBN000 .SCREW 1 -
6 09471-12213-000
SUB: 09471B12213N000		 .BULB (12V/32/32W) 1 Rp35.500
7 09471B23FA0N000 .BULB (12V 18/18W) 1 Rp39.500
8 09471-12114AS01
SUB: 09471B12203N000		 .BULB (12V 10W) 2 Rp14.000
9 09471B1202BN000 .BULB (12V, 3.4W) 1 -
10 09136-05051-000 SCREW, HEADLAMP ADJUST 1 Rp6.500
11 03541-0512B-000
SUB: 03541B0512BN000		 SCREW, HEADLAMP 4 Rp4.000
12 38610-35491-000
SUB: 38610B09410N000		 RELAY ASSY, TURNSIGNAL 1 Rp45.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
