New Jimny 5 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 001 ENGINE GASKETSFIG. 002 CYLINDER HEAD COVERFIG. 003 CYLINDER HEADFIG. 004 CYLINDERFIG. 005 OIL PANFIG. 006 CRANKSHAFTFIG. 007 CAM SHAFT/VALVEFIG. 008 CAM CHAINFIG. 009 ENGINE MOUNTINGFIG. 010 INTAKE MANIFOLDFIG. 011 THROTTLE BODYFIG. 012 AIR CLEANERFIG. 013 EXHAUST MANIFOLDFIG. 014 MUFFLERFIG. 015 FUEL PUMPFIG. 016 DELIVERY PIPE/FUEL INJECTORFIG. 017 OIL PUMPFIG. 018 WATER PUMPFIG. 019 RADIATORFIG. 020 WATER HOSEFIG. 021 EMISSION CONTROLFIG. 022 LABEL

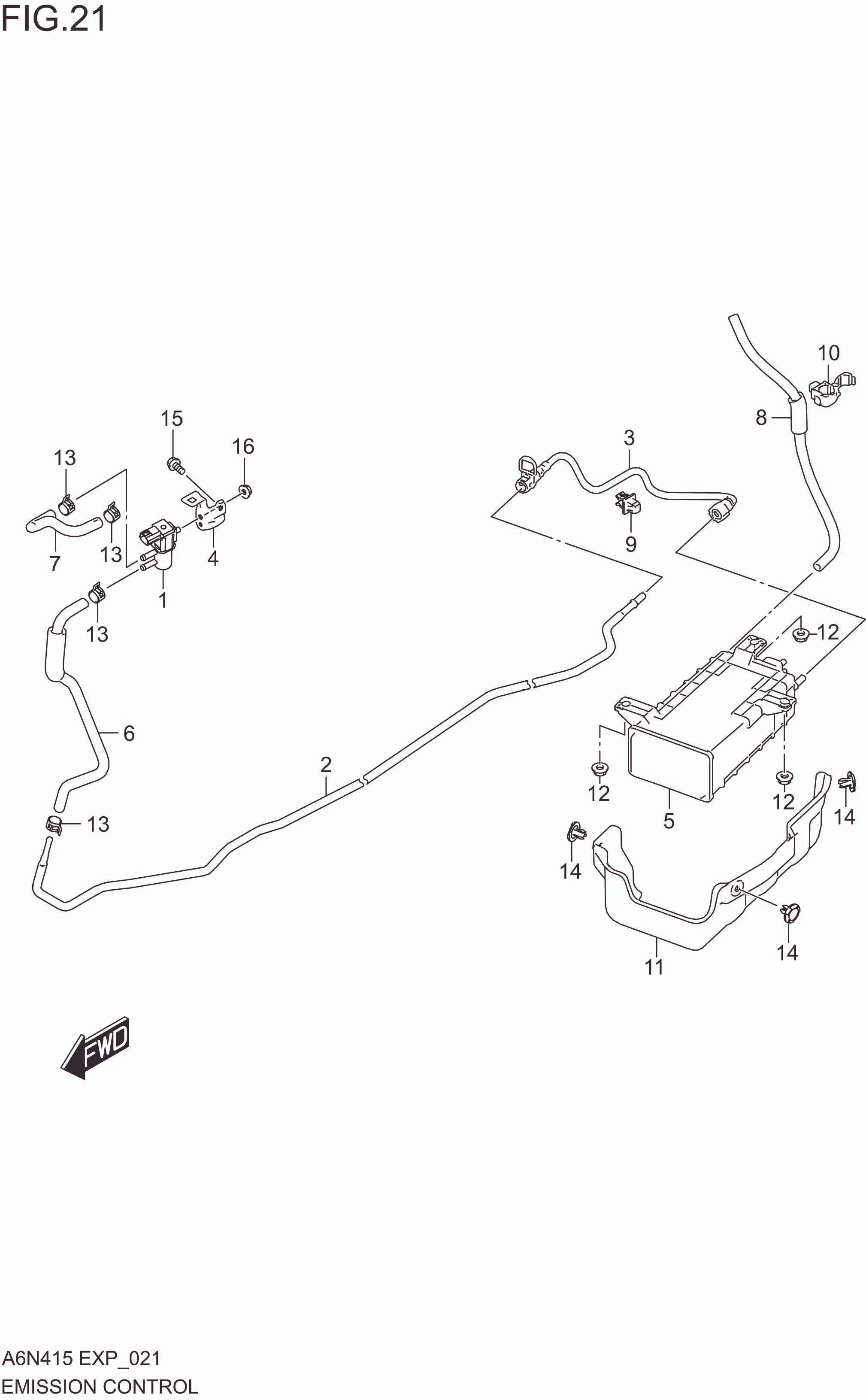

FIG. 021 EMISSION CONTROL

FIG. 021 EMISSION CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 18114M76M00-000 VALVE,CANISTER PURGE 1 Rp322.500
2 18351M80T00-000 PIPE, PURGE 1 Rp267.500
3 18352M78R50-000 PIPE, PURGE 1 Rp254.500
4 18417-78R00-000 BRACKET, PURGE VSV 1 Rp144.500
5 18560M80T00-000 CANISTER 1 Rp561.500
6 18561M78R60-000 HOSE, PURGE 1 Rp125.500
7 18565M78R60-000 HOSE, PURGE 1 Rp63.000
8 18567M80T00-000 HOSE, CANISTER AIR SUCTION 1 Rp109.000
9 18568M78R50-000 CLAMP,SUCTION PIPE 1 Rp2.000
10 18569M78R50-000 CLAMP, AIR SUCTION HOSE 1 Rp4.500
11 18571-77R00-000 PROTECTOR, CANISTER 1 Rp371.000
12 09159M06112-000 NUT (M6) 3 Rp6.500
13 09401M11432-000 CLIP (ID:11.1) 4 Rp6.000
14 09409M07356-000 CLIP (6.8X11.5) 3 Rp2.000
15 01550M0612A-000 BOLT (6X12) 1 Rp5.000
16 08316-1006A-000 NUT (6X12) 1 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
