New Jimny 5 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 001 ENGINE GASKETSFIG. 002 CYLINDER HEAD COVERFIG. 003 CYLINDER HEADFIG. 004 CYLINDERFIG. 005 OIL PANFIG. 006 CRANKSHAFTFIG. 007 CAM SHAFT/VALVEFIG. 008 CAM CHAINFIG. 009 ENGINE MOUNTINGFIG. 010 INTAKE MANIFOLDFIG. 011 THROTTLE BODYFIG. 012 AIR CLEANERFIG. 013 EXHAUST MANIFOLDFIG. 014 MUFFLERFIG. 015 FUEL PUMPFIG. 016 DELIVERY PIPE/FUEL INJECTORFIG. 017 OIL PUMPFIG. 018 WATER PUMPFIG. 019 RADIATORFIG. 020 WATER HOSEFIG. 021 EMISSION CONTROLFIG. 022 LABEL

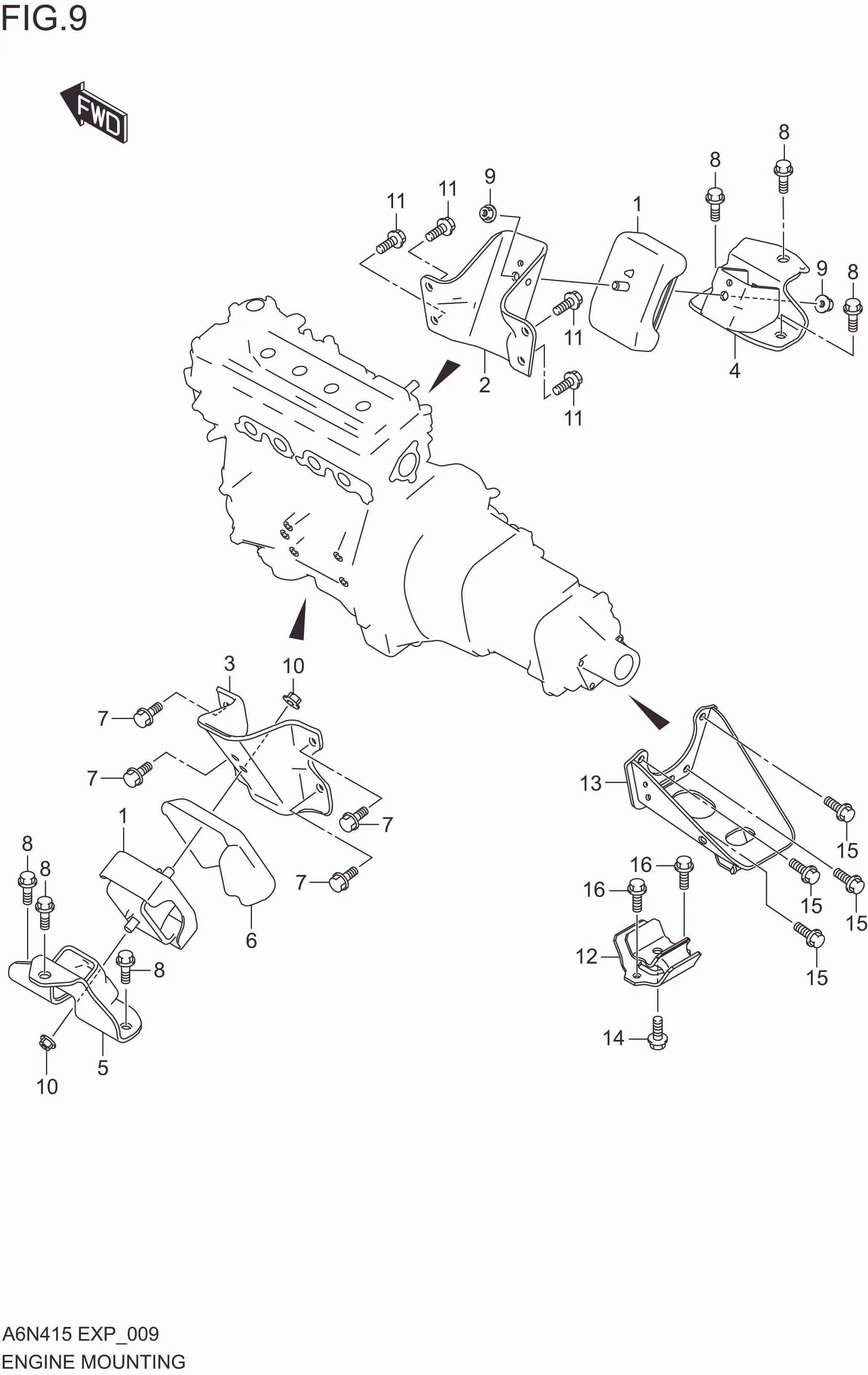

FIG. 009 ENGINE MOUNTING

FIG. 009 ENGINE MOUNTING
No No. Part Description Qty Price Per Pcs Remarks
1 11610M78RA0-000 MOUNTING, ENG FR 2 Rp470.500
2 11641M78R10-000 BRACKET,ENGINE FRONT MTG RH 1 Rp144.000
3 11651M78R10-000 BRACKET,ENGINE FRONT MTG LH 1 Rp144.000
4 11661M78R10-000 BRACKET,FR MTG FRM SIDE RH 1 Rp152.500
5 11671M78R10-000 BRACKET,FR MTG FRM SIDE LH 1 Rp152.500
6 11681-78R00-000 COVER,FRONT MTG 1 Rp197.500
7 09103-10468-000 BOLT 4 Rp30.500
8 09119-10091-000 BOLT (14X28) 6 Rp32.500
9 09159-10116-000 NUT (M10) 2 Rp18.000
10 09159-10116-000 NUT (M10) 2 Rp18.000
11 01550-1025A-000 BOLT (10X20) 4 Rp3.500
12 11710M78RA0-000 MOUNTING, ENG REAR 1 Rp197.500
13 11740-78R00-000 BRACKET, ENG RR MTG 1 Rp536.500
14 09135-10011-000 BOLT (10X26) 1 Rp34.000
15 01550-0820A-000 BOLT (8X20) 4 Rp5.500
16 01550-0820A-000 BOLT 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
