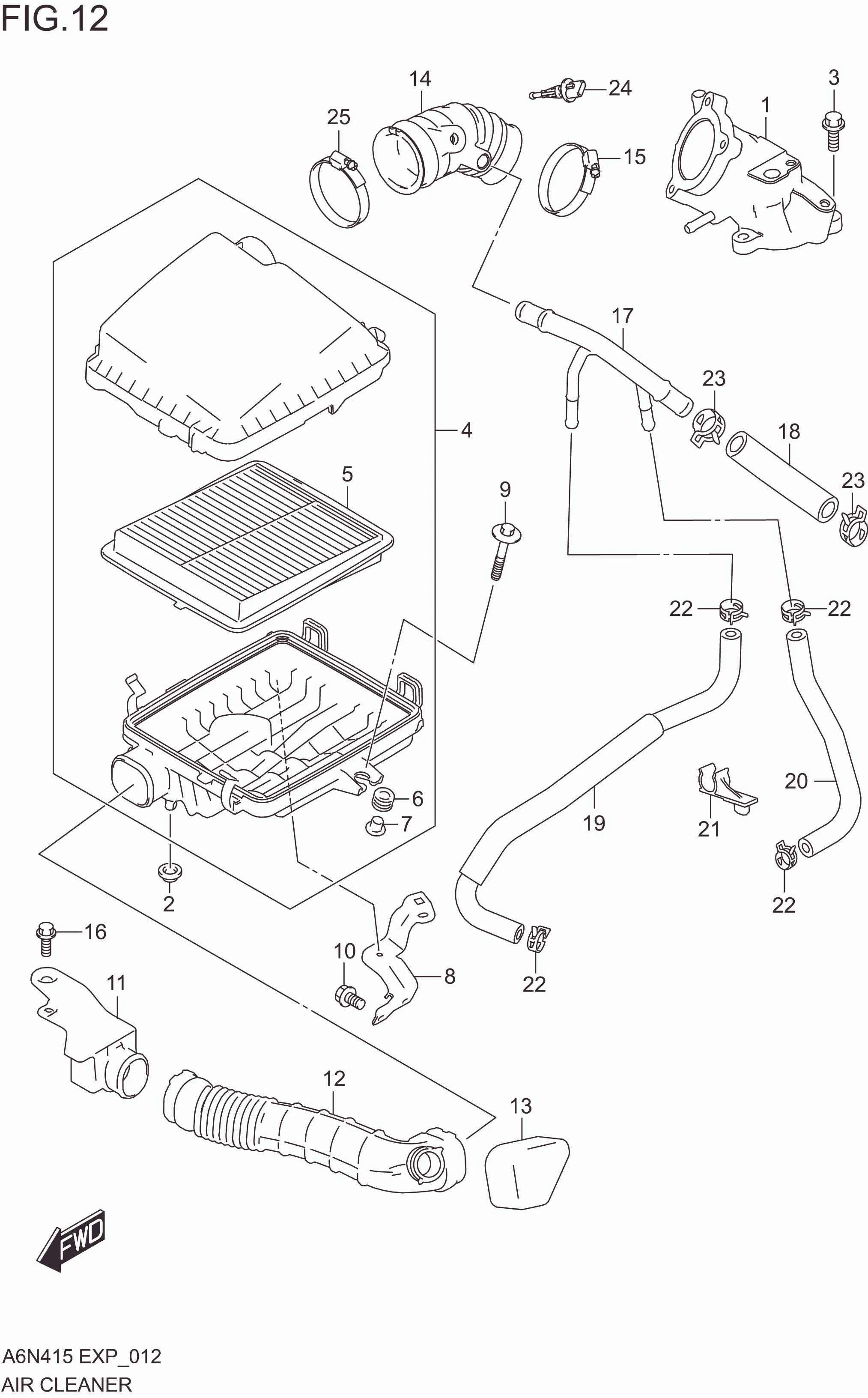

FIG. 012 AIR CLEANER

FIG. 012 AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13171-78R00-000 PIPE, THROTTLE OUT 1 Rp1.616.500
2 13723M84MB0-000 GROMMET 1 Rp6.500
3 01550-0620A-000 BOLT (6X20) 3 Rp3.500
4 13700M78R10-000 CLEANER ASSY, AIR 1 Rp372.500
5 13780M78R10-000 .ELEMENT, AIR CLEANER 1 Rp134.000
6 13878M78R10-000 .GROMMET,AIR CLEANER 2 Rp35.000
7 13877M78R10-000 .COLLAR,AIR CLEANER 2 Rp30.000
8 13811-78R00-000 BRACKET, AIR CLEANER 1 Rp213.000
9 09136-06141-000 BOLT (6X30) 2 Rp17.000
10 01550M0612A-000 BOLT (6X12) 2 Rp5.000
11 13765-78R00-000 PIPE, AIR CLNR SUCT 1 Rp457.000
12 13766M78R10-000 HOSE, AIR CLNR SUCT 1 Rp130.000
13 13761-78K20-000 RESONATOR 1 Rp139.000
14 13881-78R00-000 HOSE,AIR CLNR OUT 1 Rp320.000
15 13892M74L50-000 CLAMP,AIR CLNR OUTLET HOSE 1 Rp39.500
16 02162-0616A-000 SCREW (6X16) 2 Rp3.000
17 11190-78R00-000 PIPE, BREATHER 1 Rp400.500
18 11191M78R10-000 HOSE, BREATHER 1 Rp23.500
19 13491M78R10-000 HOSE, WATER INLET 1 Rp48.500
20 13492M78R10-000 HOSE, WATER OUTLET 1 Rp22.500
21 13495M78R10-000 CLIP, WATER INLET HOSE 1 Rp4.000
22 09401M12L05-000 CLIP (ID:13) 4 Rp6.500
23 09401M18L07-000 CLIP (ID:17.8) 2 Rp9.000
24 13650M83KA0-000 SENSOR,INLET AIR TEMP 1 Rp414.000
25 13893M74L50-000 CLAMP,AIR CLNR OUTLET HOSE 1 Rp47.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
