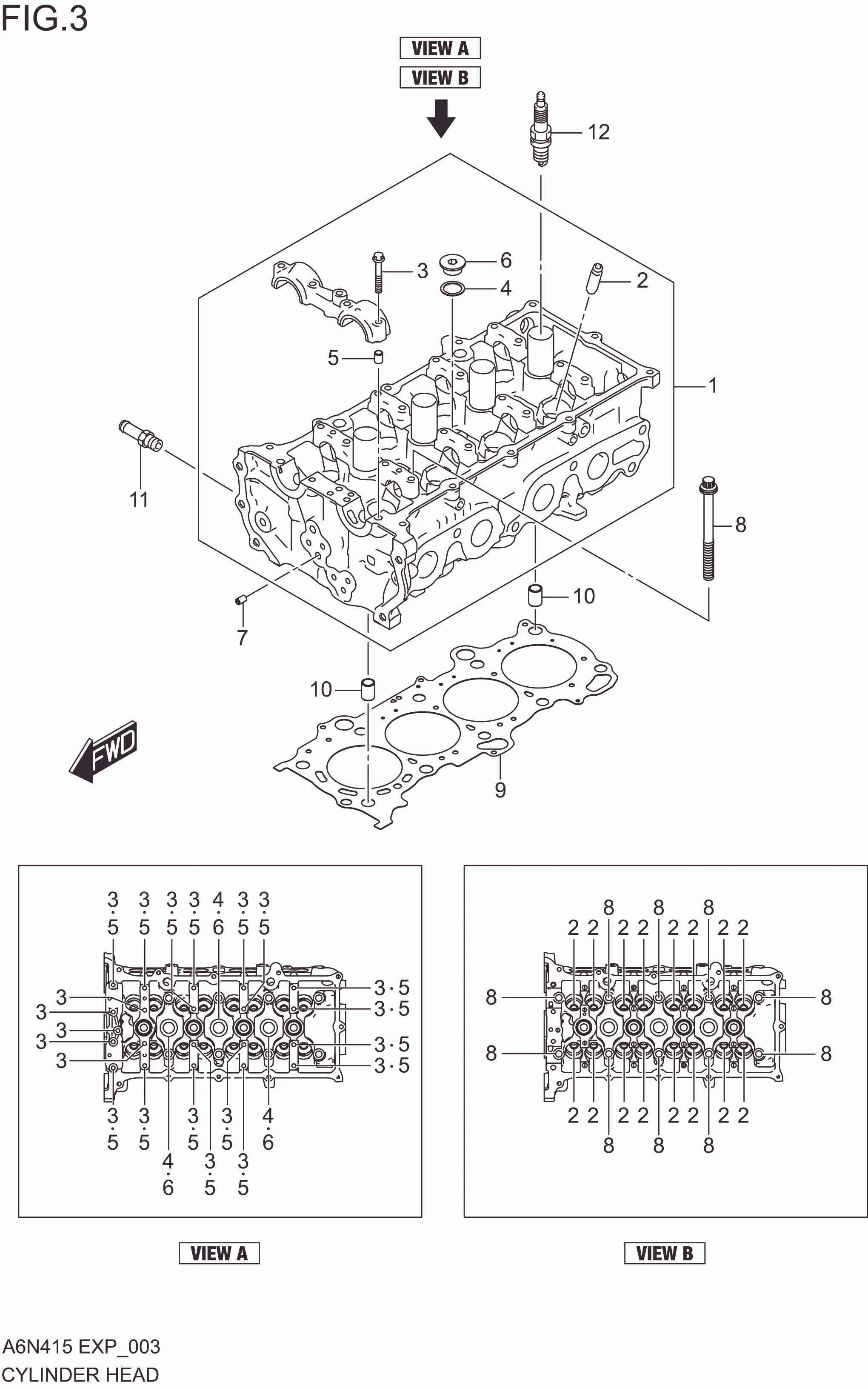

FIG. 003 CYLINDER HEAD

FIG. 003 CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 11100M80T00-000 HEAD ASSY, CYLINDER 1 Rp10.132.000
2 11115M74L00-001 .GUIDE,VALVE 16 Rp16.000
3 11128-58M00-000 .BOLT,CAMSHAFT HOUSING (6X39) 21 Rp26.500
4 11216M68K10-000 .GASKET (18X23.5X0.84) 3 Rp8.000
5 09206-08001-000 .PIN (8X11) 16 Rp5.500
6 09248-18011-000 .PLUG (18X8) 3 Rp38.000
7 11112-53A00-000 PLUG,OIL VENTURI 1 Rp31.500
8 11117M58M00-000 BOLT,CYLINDER HEAD 10 Rp27.500
9 11141M72R00-000 GASKET, CYLINDER HEAD 1 Rp270.500
10 04211M13189-000 PIN (10.4X13X18) 2 Rp9.000
11 09362-09011-000 UNION 1 Rp54.500
12 09482-00L10-000 PLUG,SPARK (KR6A-10) 4 Rp41.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
