New Jimny 5 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 001 ENGINE GASKETSFIG. 002 CYLINDER HEAD COVERFIG. 003 CYLINDER HEADFIG. 004 CYLINDERFIG. 005 OIL PANFIG. 006 CRANKSHAFTFIG. 007 CAM SHAFT/VALVEFIG. 008 CAM CHAINFIG. 009 ENGINE MOUNTINGFIG. 010 INTAKE MANIFOLDFIG. 011 THROTTLE BODYFIG. 012 AIR CLEANERFIG. 013 EXHAUST MANIFOLDFIG. 014 MUFFLERFIG. 015 FUEL PUMPFIG. 016 DELIVERY PIPE/FUEL INJECTORFIG. 017 OIL PUMPFIG. 018 WATER PUMPFIG. 019 RADIATORFIG. 020 WATER HOSEFIG. 021 EMISSION CONTROLFIG. 022 LABEL

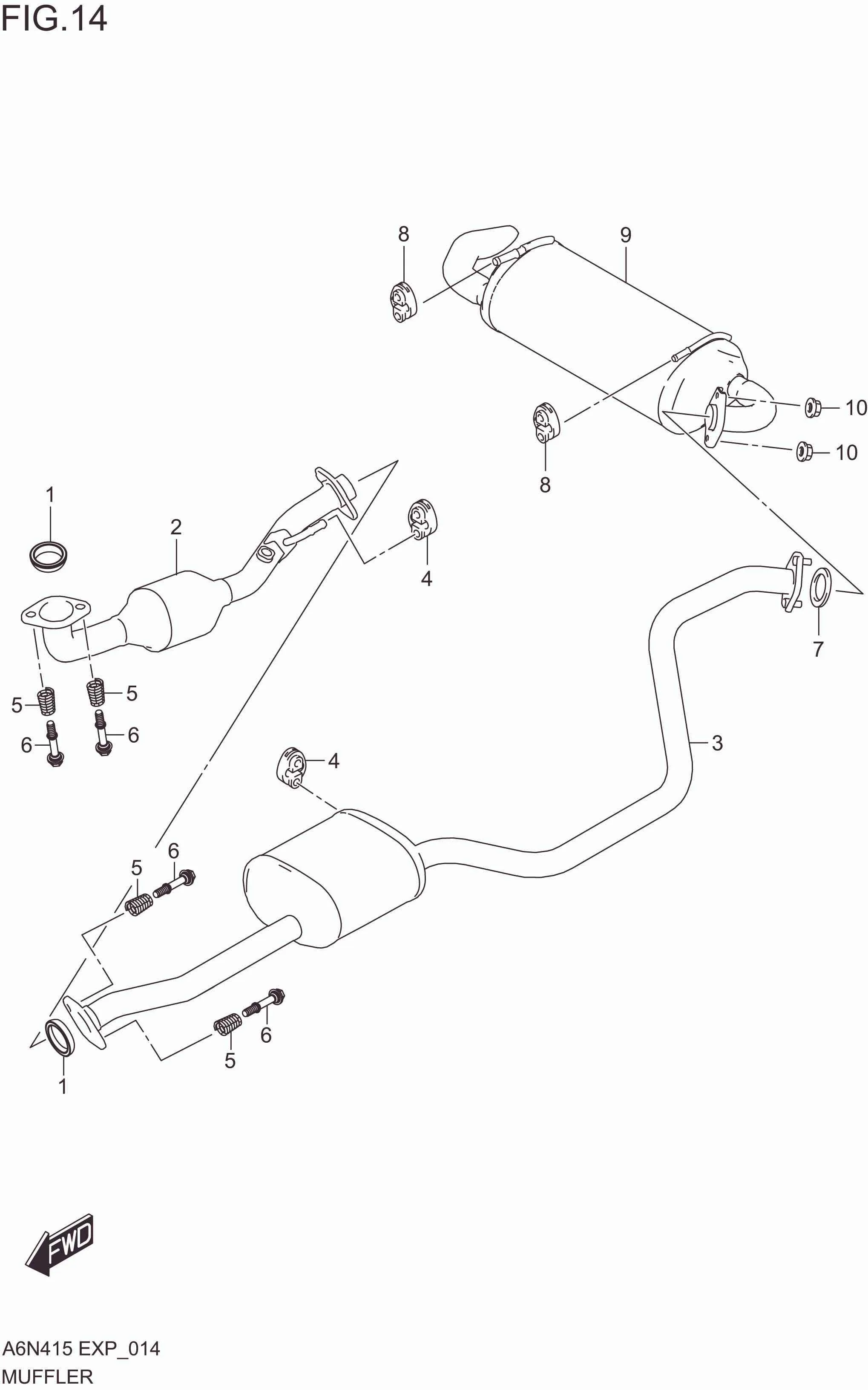

FIG. 014 MUFFLER

FIG. 014 MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14183M78L00-000 RING,SEAL EXH PIPE 2 Rp207.000
2 14250M78R30-000 PIPE,EXH NO.1 1 Rp12.646.000
3 14260M80T00-000 PIPE, EXH CENTER 1 Rp3.465.000
4 14281-80JA0-000 MOUNTING,MUF 2 Rp67.500
5 14492M72F00-000 SPRING,EXH PIPE 4 Rp50.500
6 09119-10073-000 BOLT (10X65) 4 Rp75.000
7 14182M79F11-000 GASKET,EXH PIPE 1 Rp14.000
8 14281M78R00-000 MOUNTING,MUFFLER 2 Rp41.000
9 14300M78R10-000 MUFFLER 1 Rp3.546.500
10 09159M10049-000 NUT (M10) 2 Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
