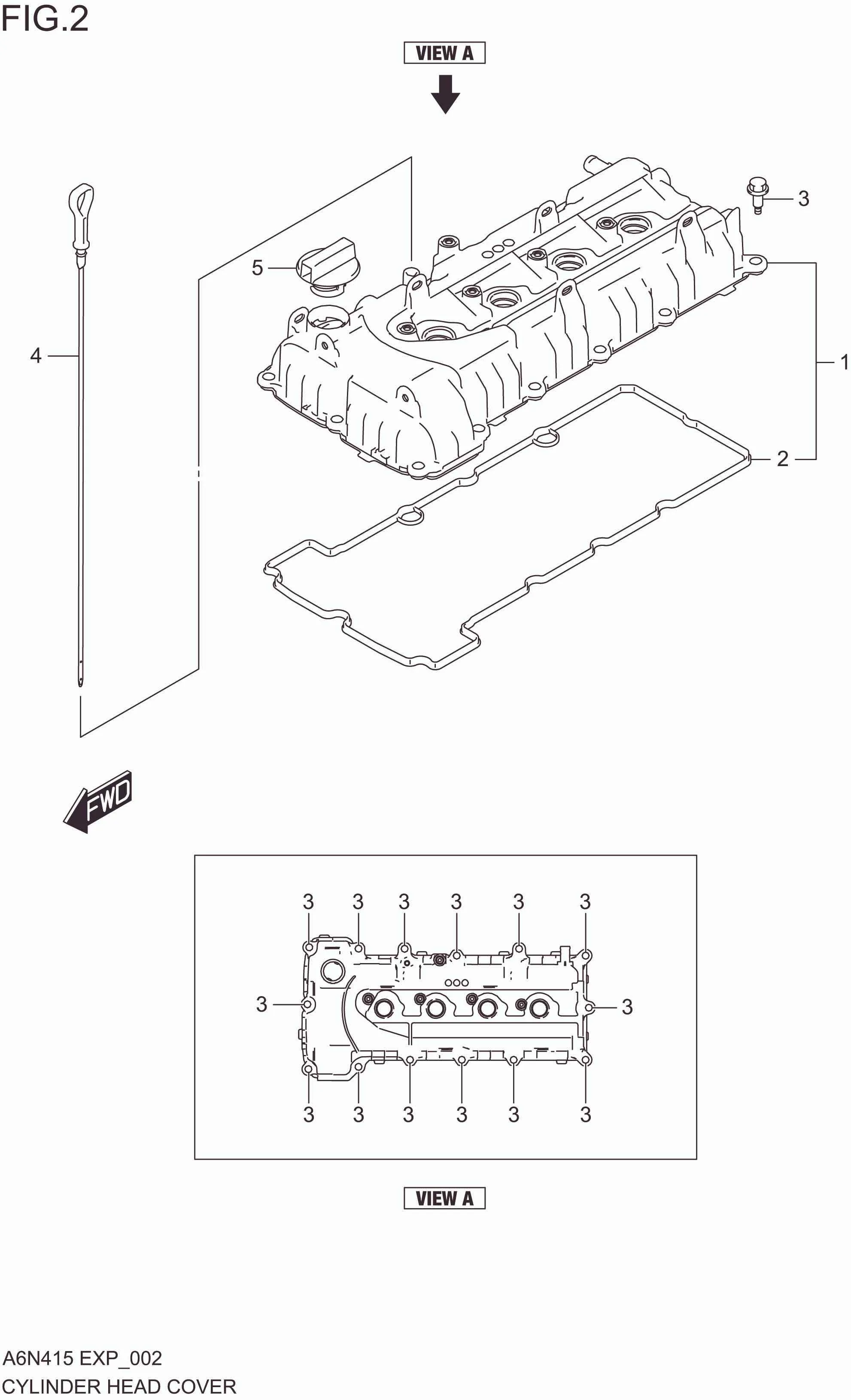

FIG. 002 CYLINDER HEAD COVER

FIG. 002 CYLINDER HEAD COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11170M72R00-000 COVER ASSY, CYLINDER HEAD 1 Rp843.000
2 11189M72R00-000 .GASKET,CYL HEAD COVER 1 Rp98.000
3 11178-69L00-000 BOLT,CYLINDER HEAD COVER 14 Rp23.000
4 16910M80T00-000 GAUGE,OIL LEVEL 1 Rp21.500
5 16920M83P10-000 CAP,OIL FILLER 1 Rp26.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
