New Jimny 5 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 001 ENGINE GASKETSFIG. 002 CYLINDER HEAD COVERFIG. 003 CYLINDER HEADFIG. 004 CYLINDERFIG. 005 OIL PANFIG. 006 CRANKSHAFTFIG. 007 CAM SHAFT/VALVEFIG. 008 CAM CHAINFIG. 009 ENGINE MOUNTINGFIG. 010 INTAKE MANIFOLDFIG. 011 THROTTLE BODYFIG. 012 AIR CLEANERFIG. 013 EXHAUST MANIFOLDFIG. 014 MUFFLERFIG. 015 FUEL PUMPFIG. 016 DELIVERY PIPE/FUEL INJECTORFIG. 017 OIL PUMPFIG. 018 WATER PUMPFIG. 019 RADIATORFIG. 020 WATER HOSEFIG. 021 EMISSION CONTROLFIG. 022 LABEL

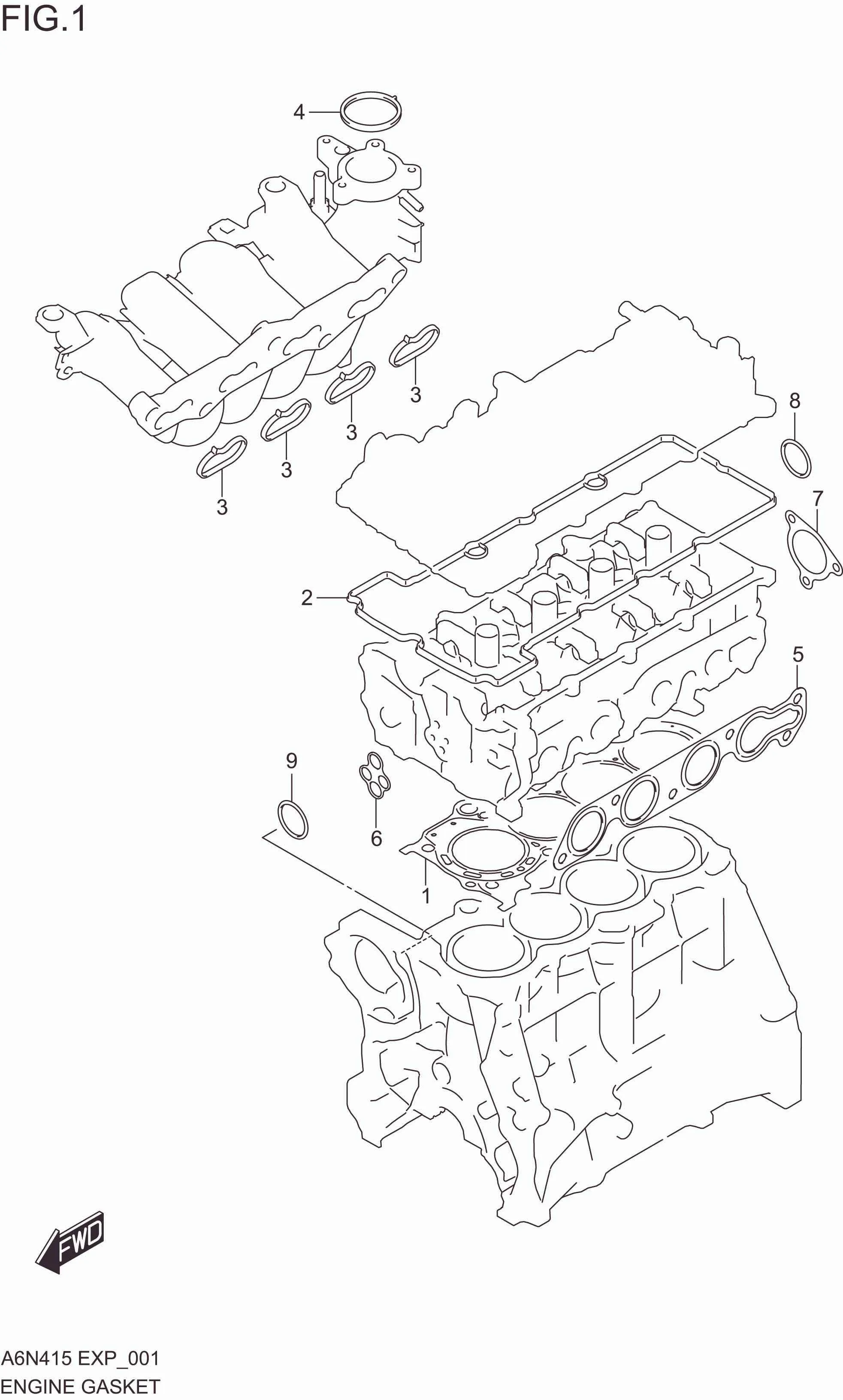

FIG. 001 ENGINE GASKETS

FIG. 001 ENGINE GASKETS
No No. Part Description Qty Price Per Pcs Remarks
1 11141M72R00-000 GASKET, CYLINDER HEAD 1 Rp270.500
2 11189M72R00-000 GASKET,CYL HEAD COVER 1 Rp98.000
3 13118M68P00-000 GASKET, INTK MANF 4 Rp25.000
4 13421M54T10-000 GASKET,THROTTLE BODY 1 Rp22.000
5 14140M60M00-000 GASKET,EXH MANF 1 Rp136.500
6 16118M74LB0-000 O-RING 1 Rp11.500
7 17699M68K00-000 GASKET,THERMO CASE 1 Rp13.000
8 17849M80T00-000 O-RING,WATER INLET PIPE 1 Rp5.500
9 09280M28L01-000 O-RING (D:35,ID:277) 2 Rp7.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
